点击放大查看

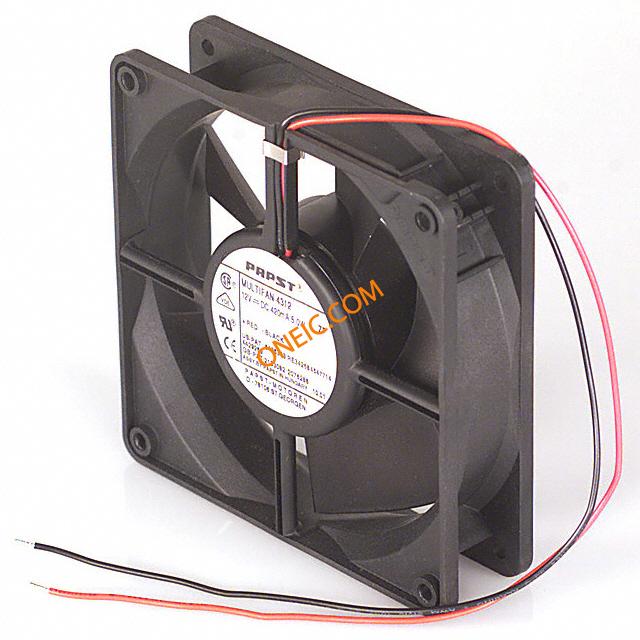

4312
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 12V 5W 2800RPM 100.1CFM 45dB Flange Mount FAN 119 X 32MM 12VDC Ball bearing axial fan,170cu.m/h 12Vdc Blowers 119x32 12DC 100CFM .8W 2800RPM 45dBA BB FAN, 119MM, 12VDC Fan;DC;12V;120x120x32mm;Sq;100.1CFM;5W;45dBA;2800RPM;Leadwires Axial fan DC 119 x 119 x 32 mm 170 m³/h 12 VDC 5.0 W, 4312, EBM-Papst ebm-papst 4300 系列 直流 轴流风扇, 170m³/h, 12 V 直流, 5W, 119 x 119 x 32mm |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 381-1002 |
| 子类别 | Blowers and Fans | 产品类别 | Blowers |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84145920 |
| 抗辐射加固 | No | 认证机构 | :CSA, UL |
电气参数
| 噪声 | 45 dB(A) | 转速 | Clockwise |
| 频率 | Not Required Hz | 输入范围 | 6V to 15V |
| 最大功率 | 5 | 噪声系数 | 45 dB |
| 功率（瓦） | 5.00W | 额定功率 | 5.8 W |
| 电压范围 | 6 ~ 15VDC | 额定电压 | 12VDC |
| 供电电压 | 12 V | 供电类型 | :Wire Leaded |
| 最小输入电压 | :6V | 平均正向功率 | :5W |
| 最大持续工作电压（MCOV） | :15V | ||
机械参数
| RPM | 2800 RPM | 尺寸 | 4.7x1.26(120x32)In.(mm) |
| 深度 | 119 mm | 宽度 | :119mm |
| 高度 | 32 mm | 重量 | 0.485 lb (219.99g) |
| 风量 | 100.1 CFM (2.83m³/min) | 直径 | Not Required mm |
| 风扇类型 | Tubeaxial | 材料（通用） | Plastic |
| 旋转范围 | CW | 厚度 | mm |
| 流量 (CFM) | :170m³/h | 流量（SCFM） | :100.1cu.ft/min |
| 端接方式 | Leads | 轴承类型 | Ball |
| 高度（最大） | :119mm | 标称内径 | 2800RPM |
| 安装类型 | Flange Mount | 安装样式 | Flange |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 119 mm |
| 刀片材料 | Polyamide (PA), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 主要材料 | Fans | 尺寸/外形 | Square - 119mm L x 119mm H x 32mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 4.7x1.26(120x32)In.(mm) |
| 面板开孔形状 | :116mm | 总体尺寸 | 4.7x4.7x1.26In. |
| 安装孔直径 | :4.5mm | 安装面板厚度 | :82.5mm |
产品信息
| 类型 | DC Fan | 系列 | 4300 |
| 功能 | DC | 方向 | ExhaustoverStruts |
| 开关类型 | DC | 制造商全称 | 4300Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 62500 hrs @ 40°C | 工作温度 | -4 ~ 167°F (-20 ~ 75°C) |
| 自然散热热阻 | 100.1CFM | 结工作温度 | 75C |
