| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |

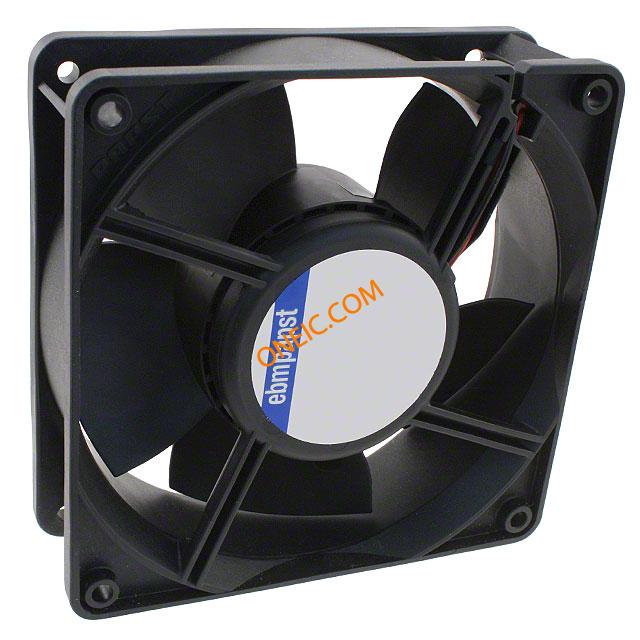

| 描述 | DC Fan Ball Bearing 24V 4.3W 97CFM 45dB Flange Mount FAN TUBEAXIAL 119X38MM 24VDC Fans 24VDC 4.3W |
| 分类 |
商业参数
| 产品 | Fans | 交货时间 | 112 Days |
| 子类别 | Blowers and Fans | 产品类别 | Fans |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Vendor undefined / Vendor undefined | 欧盟RoHS | Compliant |
电气参数
| 噪声 | 45 dB(A) | 转速 | Counter Clockwise |
| 输入范围 | 12 to 28 | 功率（瓦） | 4.30W |
| 额定功率 | 4.3 | 电压范围 | 12 ~ 28VDC |
| 额定电压 | 24VDC | 供电电压 | 24 V |
机械参数
| 深度 | 119 | 高度 | 38 |
| 重量 | 0.63 lb (285.76g) | 风量 | 97.0 CFM (2.75m³/min) |
| 风扇类型 | Tubeaxial | 端接方式 | Terminals |
| 轴承类型 | Ball | 安装类型 | Flange Mount |
| 壳体材料 | Polybutylene Terephthalate Polymer | 总长度 | 119 |
| 刀片材料 | Polyamide (PA), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 尺寸/外形 | Square - 119mm L x 119mm H x 38mm W | ||
产品信息
| 系列 | 4200 | 功能 | DC |
环境参数
| 工作温度 | 75 | ||
