点击放大查看
4114NH5
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 24V 45W 7500RPM 229.5CFM 70dB Flange Mount Fan;DC;S-Force Series;229.5 CFM;24 V;45 W;70 DBA; BALL BEARING; LEADS Fans 119x38 24V 390CFM 45W 7500RPM 70dBA BB Fan;DC;24V;120x120x38mm;Sq;229.5CFM;45W;70dBA;Leadwires Axial fan 119 x 119 x 38 mm 390 m³/h 24 VDC 45 W, 4114NH5, EBM-Papst |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
合规参数
| RoHS | Compliant | 欧盟RoHS | Compliant |
电气参数
| 噪声 | 70 dBA | 转速 | Clockwise |
| 电压 | 16...30 VDC | 输入范围 | 16 to 30 |
| 额定功率 | 45 W | 额定电压 | 24VDC |
| 供电电压 | 24 V | 平均正向功率 | 45 W |
机械参数
| 尺寸 | 4.7x1.5(120x38)In.(mm) | 深度 | 119 |
| 高度 | 38 | 重量 | 13.760001 oz |
| 风量 | 390 CFM | 材料（通用） | Metal |
| 旋转范围 | CW | 流速 | 390 |
| 端接方式 | Leads | 轴承类型 | Ball |
| 安装类型 | Flange Mount | 壳体材料 | Metal |
| 总长度 | 119 | 主要材料 | Fans |
| 尺寸/外形 | 119 mm x 119 mm x 38 mm | 端接样式 | Wire Leads |
| 连接器颜色 | black | 风扇附件类型 | 4.7x1.5(120x38)In.(mm) |
| 总体尺寸 | 4.7x4.7x1.5In. | ||
产品信息
| 类型 | Square | 系列 | 4100N |
| 功能 | DC | 方向 | IntakeoverStruts |
| 开关类型 | DC | 制造商全称 | 4100NSeries |
| 配置 | Square | ||
环境参数
| 工作温度 | -20...+65 °C | 自然散热热阻 | 229.5CFM |
| 结工作温度 | 65°C | ||
文档与媒体
相关型号
LZ30
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories MTL FINGER GRD 4000/9000 SC120-W5 FAN GUARD 119MM METAL Fan Accessories MTL FINGER GRD 4000/9000 SC120-W5 Thrml Mgmt Access Metal Finger Guard WELDED,NICKELCHROME-PLATEDSTEELWIREFORSERIES2500S,4000AND5500S 119mm风扇 金属，钢 手指防护罩, 115 (Dia)mm

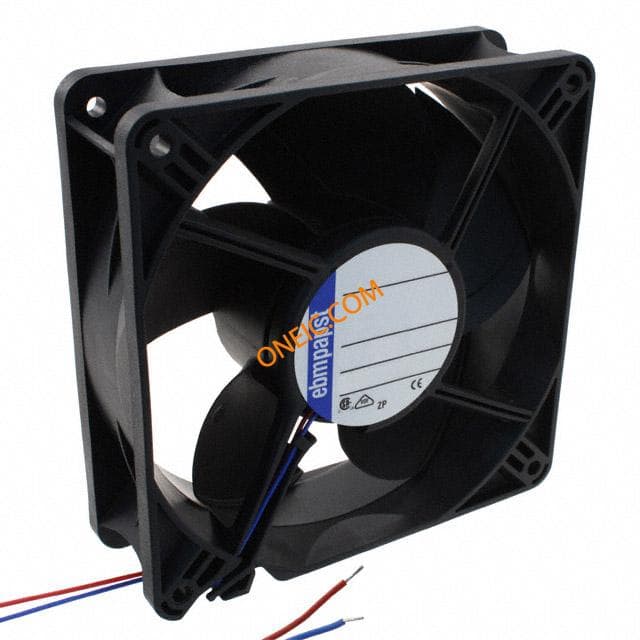

4414M
ebm-papst
DC Fan Ball Bearing 24V 4W 3300RPM 108.3CFM 42dB Flange Mount FAN 119X38MM 24V 108CFM 4W DC ball bearing fan, 119mm 184cu.m/h 24V FAN;DC TUBEAXIAL;108.3 CFM; 24V;4 W;42 DBA; BALL BEARING; LEADS Fans 119x38 24V 108.3CFM 4W 3300RPM 42dBA BB FAN, 119X119X38MM, 24V DC Fan;DC;24V;120x120x38mm;Sq;108.3CFM;4W;42dBA;Leadwires ebm-papst 4400 系列 直流 轴流风扇, 184m³/h, 24 V 直流, 4W, 119 x 119 x 38mm
9G1224E101
SANYO DENKI
DC Fan Ball Bearing 24V 0.34A 8.16W 3100RPM 118CFM 46dB Flange Mount Fans Fan 120x38mm 24VDC Hi-Perf Tach AXIAL FAN, 120MM, 24VDC, 340mA
4715KL-05W-B40-E00
NMB Technologies Corporation
DC Axial Fans can be an integral part of a cooling solution for your heat-generating applications FAN DC AXIAL 24V 119X38.4MM AXIAL FAN, 119MM x 38MM, 24V, 118CFM, 46.5dBA
AD1224HB-F51
ADDA
DC-FAN, 120X120X38 MM, 24 VOLT AXIAL FAN, 120MM 24VDC, 105.461CFM, 46.7DBA
4214H
ebm-papst
DC Fan Ball Bearing 24V 5.3W 3400RPM 108.3CFM 49dB Flange Mount FAN 119 X 38MM 24VDC Fan;DC;24V;120x120x38mm;Sq;108.3CFM;5.3W;49dBA;3400RPM;Leadwires

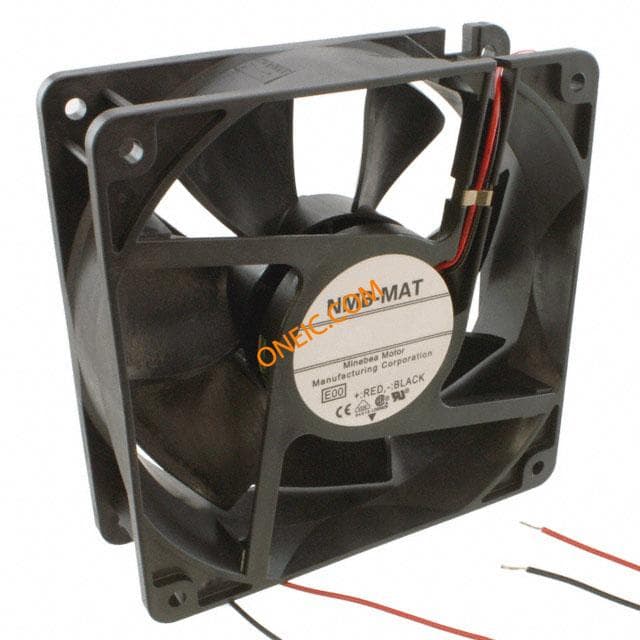

4715KL-05W-B30-E00
