点击放大查看

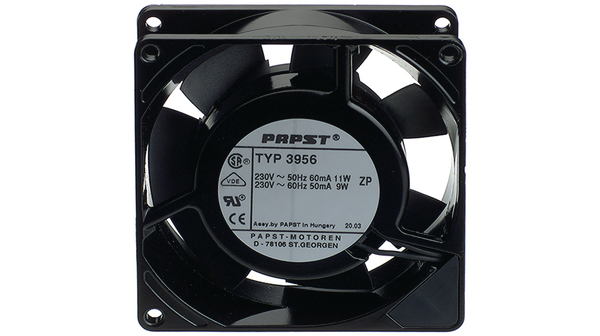

3956
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | AC Fan Ball Bearing 230V 11W 50Hz 2650RPM 34.7CFM 35dB Flange Mount FAN TUBEAXIAL 92X25MM 230VAC AC axial fan 92mm 230V 59m3/h Blowers 92x25mm 230AC 34CFM 11W 2650RPM 35dBA BB FAN, SLIM, 92MM, 230VAC Axial fan AC 92 92 x 25 mm 59 m³/h 230 VAC 11 W, 3956, EBM-Papst ebm-papst 3900 系列 AC 轴流风扇, 59m³/h, 230 V 交流, 11W, 92 x 92 x 25.4mm |
| 分类 |
商业参数
| 交货时间 | 112 Days | 子类别 | Blowers and Fans |
| 产品类别 | Blowers | 标准包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 84145920 | 抗辐射加固 | No |
| 认证机构 | :CSA, UL, VDE | ||
电气参数
| 噪声 | 35 dB(A) | 转速 | 2650 RPM |
| 频率 | 50 Hz | 电容 | / |
| 量程（°/s） | :2650rpm | 噪声系数 | 35 dB |
| 功率（瓦） | 11.0W | 额定功率 | 11 W |
| 额定电压 | 230VAC | 供电电压 | 230 V |
| 供电类型 | :Terminals | 平均正向功率 | :11W |
机械参数
| RPM | 2650 RPM | 深度 | 92 mm |
| 宽度 | :92mm | 高度 | 25.4 mm |
| 重量 | 0.617 lb (279.87g) | 风量 | 34.7 CFM (0.983m³/min) |
| 直径 | Not Required mm | 风扇类型 | Tubeaxial |
| 材料（通用） | 耐高温全金属材质 | 流量 (CFM) | :59m³/h |
| 流量（SCFM） | :34.7cu.ft/min | 端接方式 | 2 Terminals |
| 轴承类型 | Ball | 高度（最大） | :92mm |
| 安装样式 | Flange | 壳体材料 | Metal |
| 总长度 | 92 mm | 刀片材料 | Polyamide (PA), Mineral Reinforced |
| 框架材料 | Metal | 尺寸/外形 | Square - 92mm L x 92mm H x 25mm W |
| 端接样式 | Wire Leads | 面板开孔形状 | :89mm |
| 总体尺寸 | 92x92x25mm | 安装孔直径 | :405mm |
| 安装面板厚度 | :82.5mm | ||
产品信息
| 类型 | AC Fan | 系列 | 3900 |
| 功能 | AC | 制造商全称 | ebmpapst交流风机 |
| 产品子类型 | 3956 | 制造国家 | 德国 |
环境参数
| 额定寿命 | 55000 hrs @ 40°C | 温度 | -40-----------+80℃ |
| 高风量 | 59 m3/h | 工作压力 | 80Pa |
| 工作温度 | -40 ~ 176°F (-40 ~ 80°C) | 结工作温度 | 80C |
