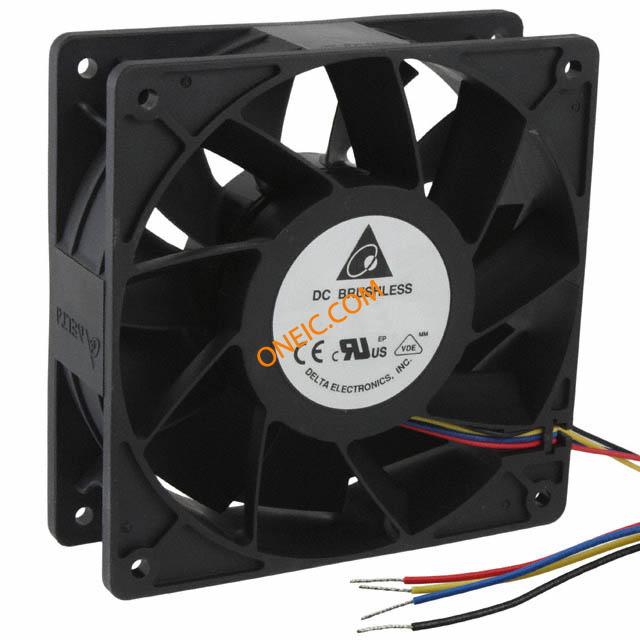

PFB1248XHE-TP17

制造商	Delta Electronics, Inc.
描述	DC FAN WITH RATED VOLTAGE 48 VDC FAN DC AXIAL 48V 120X38
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Supplier Unconfirmed

电气参数

噪声	72.5 dB(A)	功率（瓦）	76.8W
电压范围	33 ~ 52.8VDC	额定电压	48VDC
最大额定电流	1.6A

机械参数

RPM	7000 RPM	重量	0.838 lb (380.11g)
风量	306.9 CFM (8.69m³/min)	风扇类型	Tubeaxial
端接方式	4 Wire Leads	轴承类型	Ball
静压	2.175 in H2O (541.8 Pa)	刀片材料	Plastic
框架材料	Plastic	尺寸/外形	Square - 120mm L x 120mm H x 38mm W

产品信息

产品特性

PWM Control; Speed Sensor (Tach)

环境参数

额定寿命

50000 hrs @ 40°C

工作温度

14 ~ 140°F (-10 ~ 60°C)
