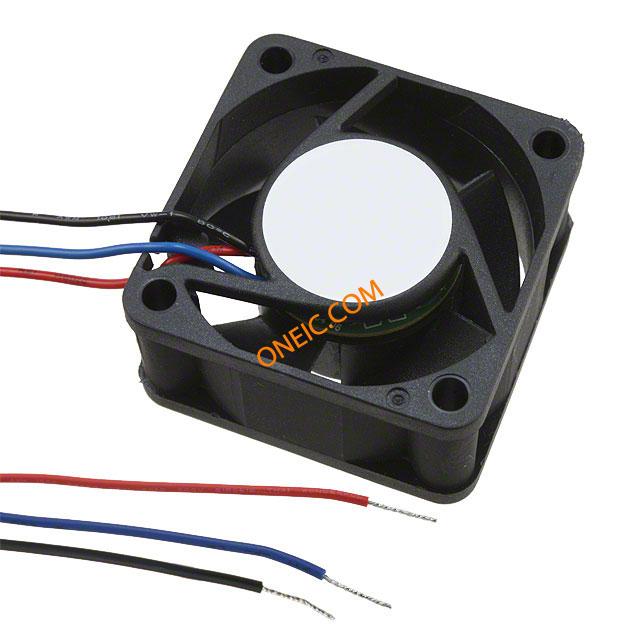

EFB0412MD-R00

制造商	Delta Electronics, Inc.
描述	12V DC FAN 40X40X20 MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

标准包装数量

336

电气参数

噪声	24 dB(A)	功率（瓦）	0.72W
电压范围	7 ~ 13.8VDC	额定电压	12VDC
最大额定电流	0.060A

机械参数

RPM	6300 RPM	重量	0.073 lb (33.11g)
风量	7.2 CFM (0.204m³/min)	风扇类型	Tubeaxial
端接方式	3 Wire Leads	轴承类型	Ball
静压	0.218 in H2O (54.3 Pa)	刀片材料	Plastic
框架材料	Plastic	尺寸/外形	Square - 40mm L x 40mm H x 20mm W

产品信息

产品特性

Locked Rotor Sensor

环境参数

额定寿命

70000 hrs @ 40°C

工作温度

14 ~ 158°F (-10 ~ 70°C)
