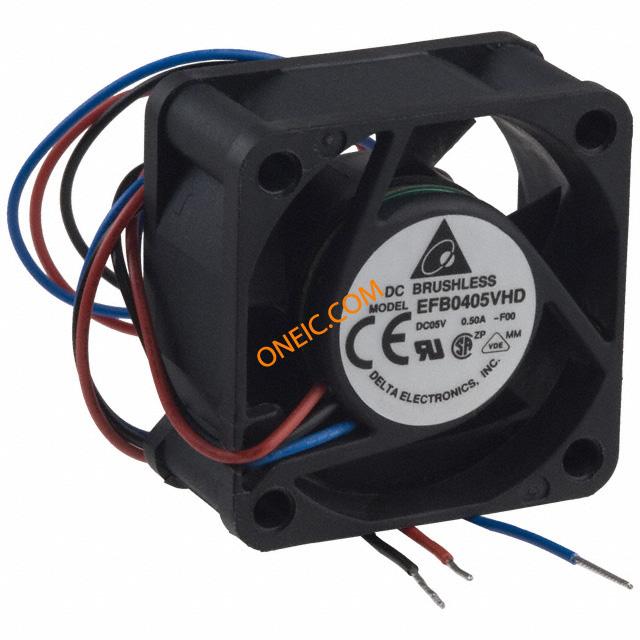

EFB0405VHD-F00

制造商	Delta Electronics, Inc.
描述	DC Fan Ball Bearing 5V 0.32A 1.6W 9000RPM 10.1CFM 32.5dB Flange Mount FAN DC AXIAL 5V 40X20 TAC OUT
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

标准包装数量

336

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Supplier Unconfirmed

电气参数

噪声	32.5 dB(A)	转速	Clockwise
输入范围	4.5 to 5.5	功率（瓦）	1.60W
额定功率	1.6	电压范围	4.5 ~ 5.5VDC
额定电压	5VDC	输出电流	0.32
最大额定电流	0.320A

机械参数

RPM	9000 RPM	深度	40
高度	20	重量	0.073 lb (33.11g)
风量	10.1 CFM (0.286m³/min)	风扇类型	Tubeaxial
端接方式	Lead Wire	轴承类型	Ball
安装类型	Flange Mount	静压	0.416 in H2O (103.6 Pa)
壳体材料	Plastic	总长度	40
刀片材料	Plastic	框架材料	Plastic
最大压力	0.416inH2O	尺寸/外形	Square - 40mm L x 40mm H x 20mm W

产品信息

产品特性

Speed Sensor (Tach)
