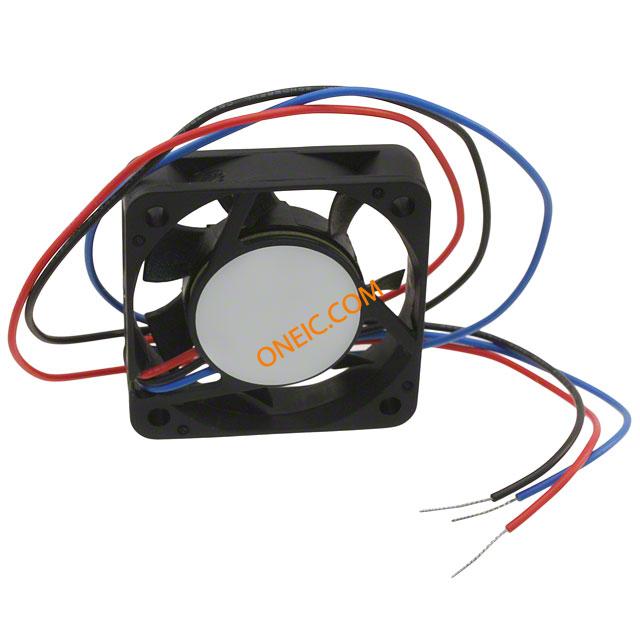

EFB0405HHA-F00

制造商	Delta Electronics, Inc.
描述	5V DC FAN 40X40X10 MM
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

标准包装数量

640

电气参数

噪声	33 dB(A)	功率（瓦）	0.95W
电压范围	4.5 ~ 5.5VDC	额定电压	5VDC
最大额定电流	0.190A

机械参数

RPM	7000 RPM	重量	0.032 lb (14.51g)
风量	8.1 CFM (0.230m³/min)	风扇类型	Tubeaxial
端接方式	3 Wire Leads	轴承类型	Ball
静压	0.174 in H2O (43.3 Pa)	刀片材料	Plastic
框架材料	Plastic	尺寸/外形	Square - 40mm L x 40mm H x 10mm W

产品信息

产品特性

Speed Sensor (Tach)

环境参数

额定寿命

70000 hrs @ 40°C

工作温度

14 ~ 158°F (-10 ~ 70°C)
