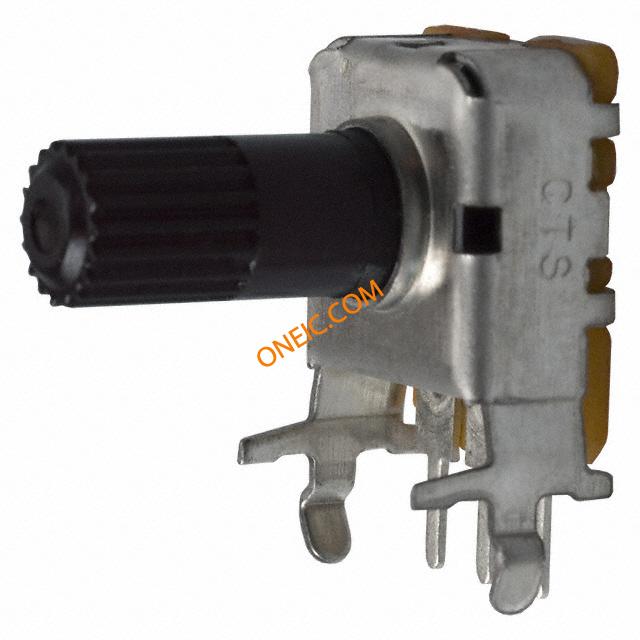

296XD105B1N

点击放大查看

296XD105B1N

制造商
CTS Corporation
描述Potentiometers 1Mohm 20% PC POT 1 MEG OHM 1/8W CARB HORIZ
分类
电阻器与电位器旋转电位器旋转电位器
对参数有疑问？问 AI 助手

商业参数

产品Potentiometer其他名称CT2260
产品类别Potentiometers标准包装数量1

合规参数

RoHSRoHS Compliant

电气参数

容差±20%电阻1 MOhms
功率（瓦）0.125W, 1/8W额定功率150 mW
额定电压350 V电阻值（欧姆）1M

机械参数

锥度Linear旋转范围300°

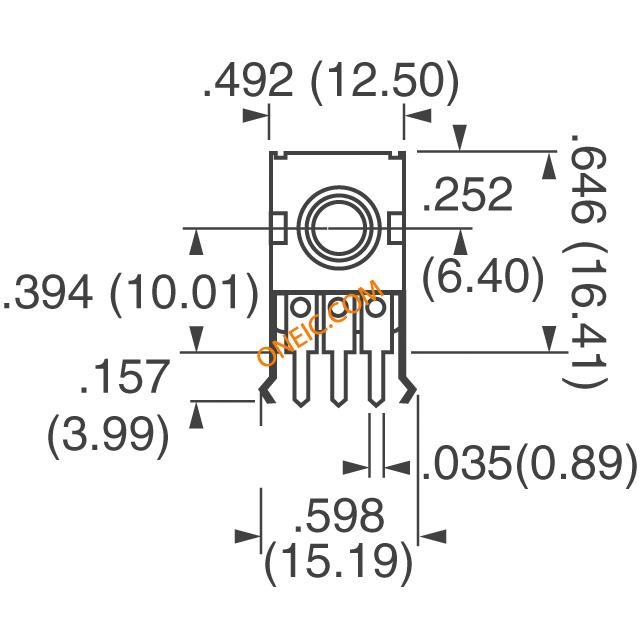

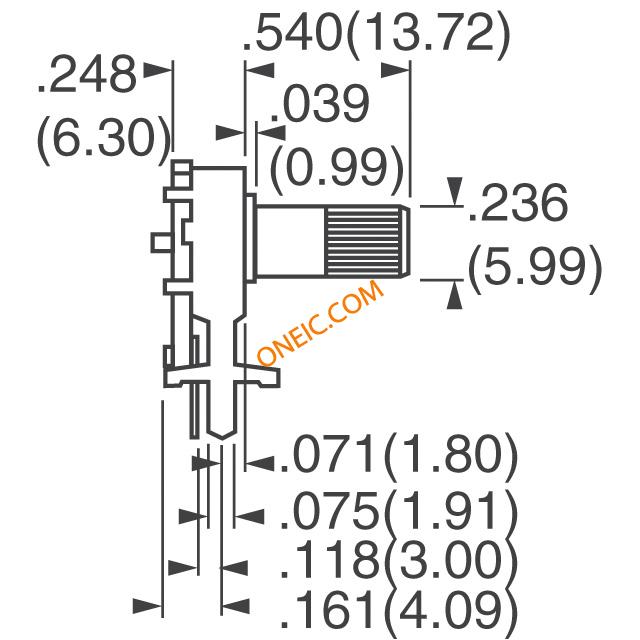

包装方式Bulk本体尺寸Square - 0.248" L x 0.492" W x 0.646" H (6.30mm x 12.50mm x 16.40mm)
轴细节Knurled / Serrated致动器类型Knurled Shaft
安装类型Through Hole, Snap In安装样式Through Hole
轴直径6 mm执行器长度0.539" (13.70mm)
执行器直径0.236" (6.00mm)端接样式PCB Pins, Board Locks
电阻材料Carbon轴和轴承长度13.7 mm

产品信息

调节方式Side Adjustment圈数Single

环境参数

工作温度- 10 C to + 80 C

文档与媒体

PDF 文档
296 Series Pots
PDF 文档
296.pdf
