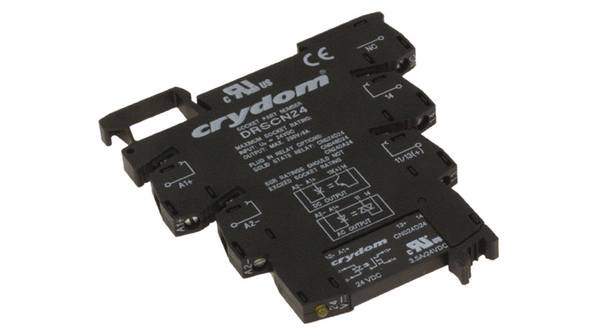

DRA-CN240A24
| 制造商 | |
| 描述 | Solid State Relays - Industrial Mount CN240A24 SSR/DRSCN24 Skt Assy Relay SSR 7mA 30V DC-IN 2A 250V AC-OUT RELAY SSR 2A 240VAC DIN-RAIL 2A DIN Rail Panel Mount, Zero Crossing Solid State Relay, 250V ac SSR, DIN RAIL ASSY, 240 VOLTS Assembly;Relay;DINRailMount;240Volts Solid state relay single phase 15...30 VDC, DRA-CN240A24, Crydom Crydom 2 A DIN Rail安装 固态继电器, 零交叉切换, 250 V 交流 |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85364900 |
电气参数
| 输出端 | AC Output | 电路 | SPST-NO (1 Form A) |
| 输入类型 | DC | 输出类型 | AC |
| 负载电流 | 2A | 开启时间 | 1/2 cycle |
| 电压范围 | 24-280VDC | 开关模式 | :Zero Crossing |
| 负载电压 | 0 ~ 240 V | 额定电压 | 30 |
| 浪涌电流 | :120A | 输出电流 | 2 |
| 供电电压 | 15 VDC to 30 VDC | 隔离电压 | 2500 |
| 电池组电压 | 24 V ac | 最大额定电流 | 2 A |
| 最小输入电压 | 15 ~ 30VDC | 输出电压（最大） | 250 |
| 电源电压（最大） | :30VDC | 最小供电电压 | 24 VAC to 250 VAC |
| 关态电流（最大） | 4 mA | 静态电流（最大） | 70 mA |
| 输入偏置电流（最大） | 7(Typ) | 峰值脉冲电流（8/20µs） | 120 |
| 额定交流电压（相间） | :280VAC | 最大持续工作电压（MCOV） | :24V |
| 额定交流电压（相对地/中性线） | :24V | ||
机械参数
| 深度 | 6.1mm | 宽度 | 6.1 |
| 高度 | 80mm | 长度 | 92.6mm |
| 重量 | 0.031 | 包装方式 | Bulk |
| 触点形式 | 1 Form A (SPST-NO) | 安装类型 | DIN Rail |
| 端子类型 | :Cage Clamp | 安装样式 | DIN Rail |
| 封装形式 | SIP SSR | 总长度 | 80 |
| 端接样式 | Screw | 外壳尺寸-插件 | 92.6 |
| 典型触点布局 | :SPST-NO | ||
产品信息
| 类型 | Relay | 系列 | DRACN |
| 继电器类型 | Relay | 开关类型 | Zero Crossing |
| 电路类型 | 1 Form A | 产品子类型 | Industrial Mount |
| 控制/显示类型 | :DC | ||
环境参数
| 工作温度 | 60 | ||
