点击放大查看

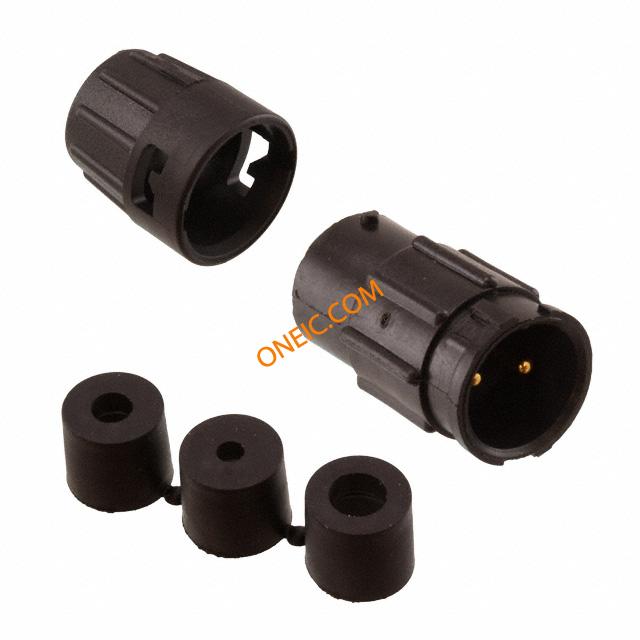

8382-2PG-3DC

制造商	Switchcraft, Inc.
描述	Standard Circular Connector MINI-CON #16 CABLE TO CABLE Conn Field Installable PIN 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN RCPT 2POS CABLE PIN MINI-CON#16CABLETOCABLE
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

工厂包装数量

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Supplier Unconfirmed
抗辐射加固	No

电气参数

额定电压

600V

最大额定电流

4.8 A to 13 A

机械参数

直径	15.9 mm	包装方式	Bulk
出线方向	No	导线线规	18-16
方向	Keyed	端接方式	Solder Cup
触点形式	2Signal	触头类型	2Signal
安装类型	Cable Mount	连接器类型	Receptacle, Male Pins
接触镀层	Gold Over Nickel	紧固类型	Bayonet Lock
安装样式	Wire	触头材料	Brass
总长度	35.4 mm	端接样式	Solder Cup
第一触头极性	PIN	触点数	2
位数	2	外壳材料及表面处理	Nylon

产品信息

类型	Field Installable	系列	Mini-Con-X
产品子类型	Connectors	射频系列/标准	83
输出配置	Free Hanging (In-Line)

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 115°C

文档与媒体

PDF 文档

Mini-Con-X Connectors
