8282-6SG-513
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector 6P Cable-Cable Sckt Mini Conx Solder Conn Field Installable SKT 6 POS Solder Cup ST Cable Mount 6 Terminal 1 Port CONN RCPT 6POS CABLE SKT MINI-CONCABLE-CABLE#20SOLDER |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
电气参数
| 额定电压 | 600V | 最大额定电流 | 5.6 A |
机械参数
| 直径 | 15.9 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 触头类型 | 6Signal | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Free Hanging |
| 触头材料 | Brass | 总长度 | 44.2 |
| 端接样式 | Solder Cup | 第一触头极性 | SKT |
| 触点数 | 6 | 位数 | 6 |
| 外壳材料及表面处理 | Nylon | ||
产品信息
| 类型 | Field Installable | 系列 | Mini-Con-X |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
相关型号
6282-6PG-519
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable PIN 6 POS Solder Cup ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS CABLE PIN MINI-CONCABLE#20SOLDER
6282-6PG-315
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable PIN 6 POS Solder Cup ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS CABLE PIN MINI-CONCABLE#20SOLDER
6283-513
Conxall / Switchcraft
Standard Circular Connector MINI-CON GROMMET LNG Standard Circular Connectors MINI-CON GROMMET LNG MINI CON-X GROMMET LONG MINICON-XGROMMETLONG
6295
Conxall / Switchcraft
Standard Circular Connector DUST CAP MINI-CON-X Connector Accessories Santoprene Rubber Black CONN DUST CAP MINICONX DUST CAP, RUBBER WEATHERTITECAP

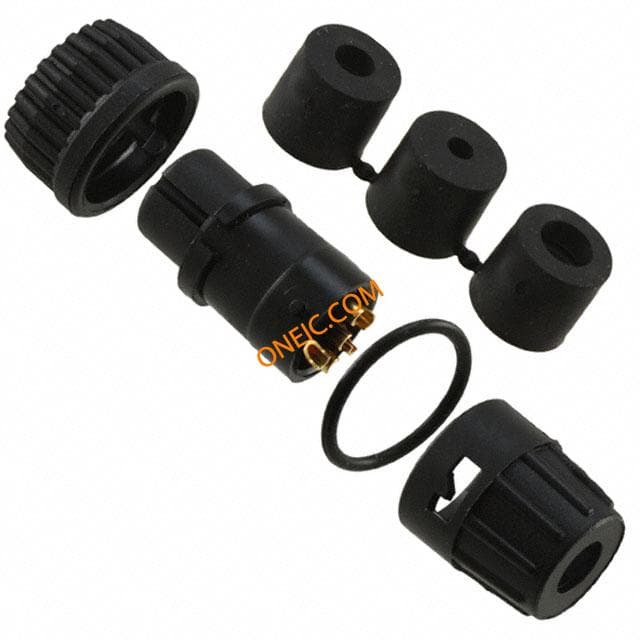

6282-6PG-3DC
