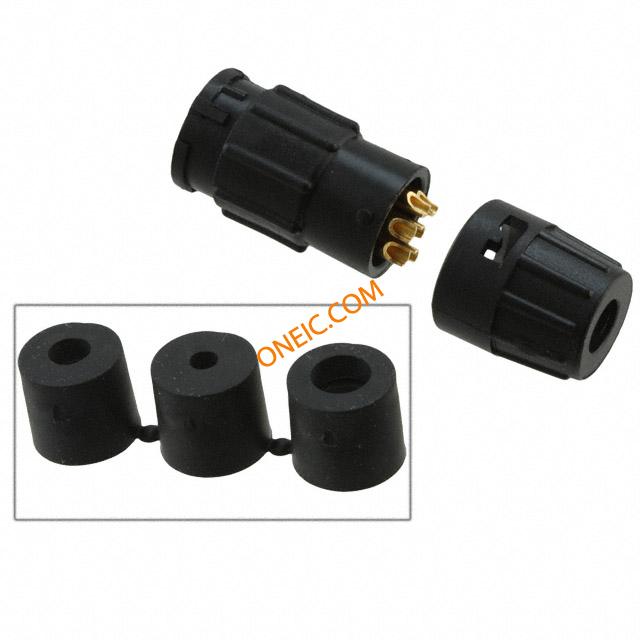

8282-6PG-3DC
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector 6P PIN CBL TO CBL DAISY CHAIN GRMMT Conn Field Installable PIN 6 POS Solder Cup ST Cable Mount 6 Terminal 1 Port CONN RCPT 6POS CABLE PIN Connector;#20;SolderCup;6;Pin;GoldoverNickel600V |
| 分类 |
商业参数
| 商标名 | Mini-Con-X | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
| 认证机构 | ULRecognized/CSA | ||
电气参数
| 额定电压 | 600V | ||
机械参数
| 直径 | 15.9 | 包装方式 | Bulk |
| 出线方向 | No | 导线线规 | 20 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 触头类型 | 6Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Gold over Nickel |
| 行程角度 | Straight | 电缆直径 | 0.375" |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Free Hanging |
| 触头材料 | Brass | 壳体材料 | Plastic |
| 总长度 | 35.4 | 主要材料 | Sealed |
| 端接样式 | Solder Cup | 第一触头极性 | PIN |
| 触点数 | 6 | 接触件尾部长度 | #20 |
| 位数 | 6 | 外壳材料及表面处理 | Nylon |
产品信息
| 类型 | Field Installable | 系列 | Mini-Con-X |
| 产品特性 | CabletoCable | 制造商全称 | Mini-Con-XSeries |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
