7380-2PG-300
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector MINI-CON PAN MT #16 CRIMP Conn Field Installable PIN 2 POS Crimp ST Panel Mount 2 Terminal 1 Port CONN RCPT 2POS PNL MNT PIN MINI-CONPANELMT#16CRIMP |
| 分类 |
商业参数
| 商标名 | Mini-Con-X | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
电气参数
| 额定电压 | 600V | 最大额定电流 | 4.8 A to 13 A |
机械参数
| 深度 | 20.6 | 高度 | 23.5 |
| 直径 | 23.5 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 触头类型 | 2Signal | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 外壳材料（壳体） | Plastic | 触头材料 | Brass |
| 端接样式 | Crimp | 第一触头极性 | PIN |
| 配接方向 | Bayonet | 触点数 | 2 |
| 位数 | 2 | 外壳材料及表面处理 | Nylon |
产品信息
| 类型 | Field Installable | 系列 | Mini-Con-X |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
相关型号
6382-2SG-311
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6382-2SG-318
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 SOLDER Conn Field Installable SKT 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16SOLDER
6380-2SG-3DC
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP
6380-2SG-318
Conxall / Switchcraft
Standard Circular Connector MINI-CON CABLE #16 CRIMP Conn Field Installable SKT 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE SKT MINI-CONCABLE#16CRIMP
356-16
Conxall / Switchcraft
Hand Tools INSERTION BIT FOR #16 PIN-SKT. TOOL CONTACT INSERTION BIT 16 INSERTION BIT FOR #16 PIN-SKT. Insertion Bit For #16 Pin-Skt. INSERTIONBITFOR#16PIN-SKT.

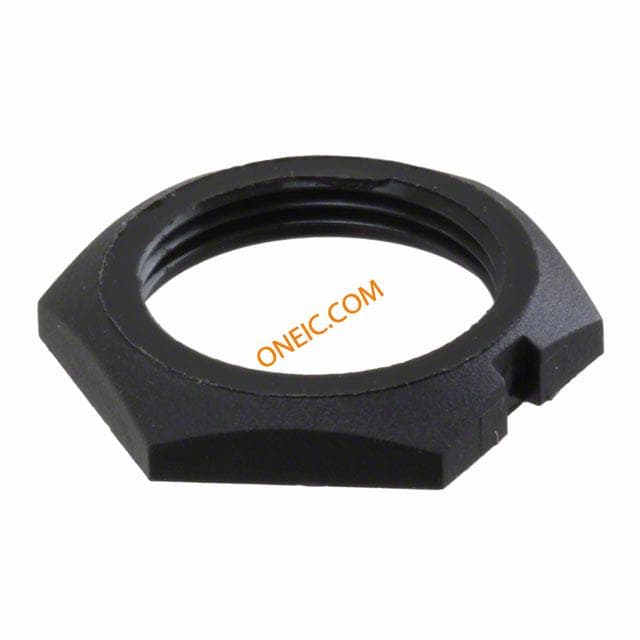

6291
