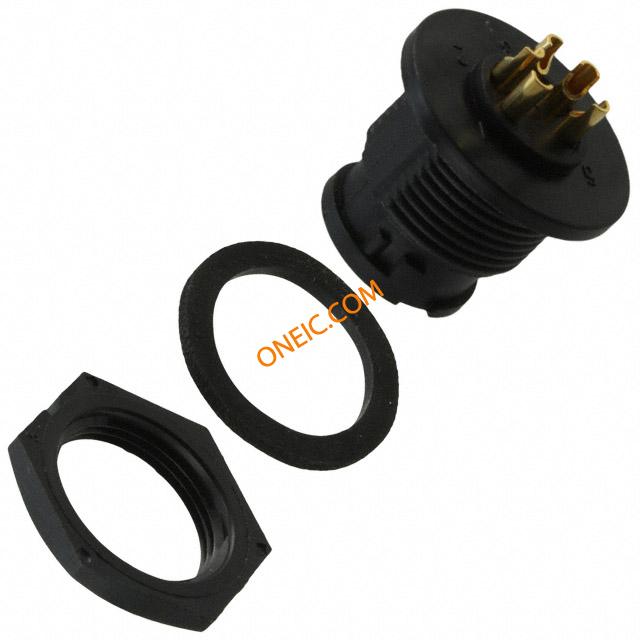

7282-5PG-300

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 5P PIN PANEL MNT Conn Field Installable PIN 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port CONN RCPT 5POS PNL MNT PIN CONNECTOR, PANEL, MALE, 5WAY Connector;#20;SolderCup;5;Pin;GoldoverNickel600V
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Mini-Con-X	产品类别	Standard Circular Connector
标准包装数量	25	工厂包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Supplier Unconfirmed
海关税号	85369010

电气参数

额定电压

600V

机械参数

深度	20.6	高度	23.5
重量	0.01	直径	23.5
包装方式	Bulk	出线方向	No
方向	Keyed	外壳样式	Plug
端接方式	Solder Cup	触头类型	5Signal
安装类型	Panel Mount	外壳镀层	Gold over Nickel
连接器类型	Receptacle, Male Pins	接触镀层	Gold Over Nickel
紧固类型	Bayonet Lock	安装样式	Panel
插入角度	:20-5	本体材料	:Nylon (Polyamide)
触头材料	Brass	端接样式	Solder Cup
第一触头极性	PIN	触点数	5
接触件端接	:Solder	位数	5
外壳尺寸-插件	:20	外壳材料及表面处理	Nylon
第一连接器安装类型	:Panel

产品信息

类型	Field Installable	连接器性别	:Plug
系列	Mini-Con-X	产品子类型	Connectors

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 115°C

文档与媒体

在线文档

Mini-Con-X Part Number Guide

PDF 文档

Maxi(Mini)-Con-X Drawing

PDF 文档

Cable Assemblies/Connector Catalog

PDF 文档

83441.pdf

相关型号

6280-5SG-513

Conxall / Switchcraft

Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable SKT 5 POS Crimp ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS CABLE SKT MINI-CONCABLE#20CRIMP

¥33.6600

详情

暂无图片

6293SP

Conxall / Switchcraft

Standard Circular Connector MINI-CON GASKET-SPC MINI-CON-X GASKET - SPECIAL MINI-CON-XGASKET-SPECIAL

¥2.7676

详情

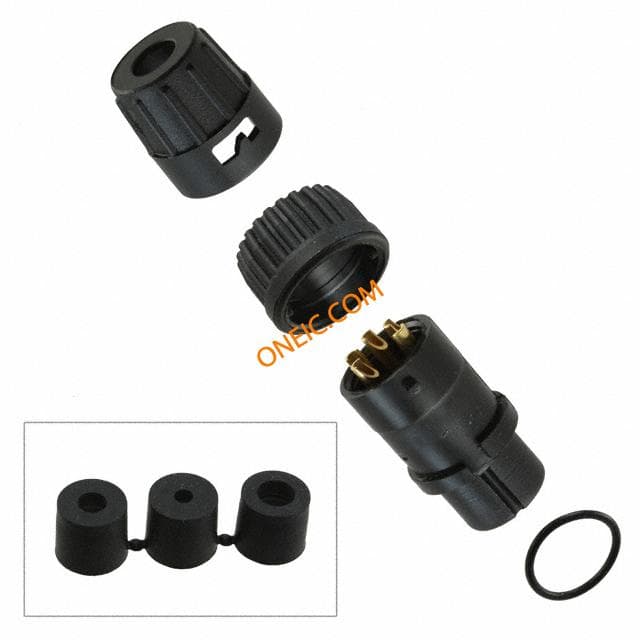

6282-5SG-3DC
