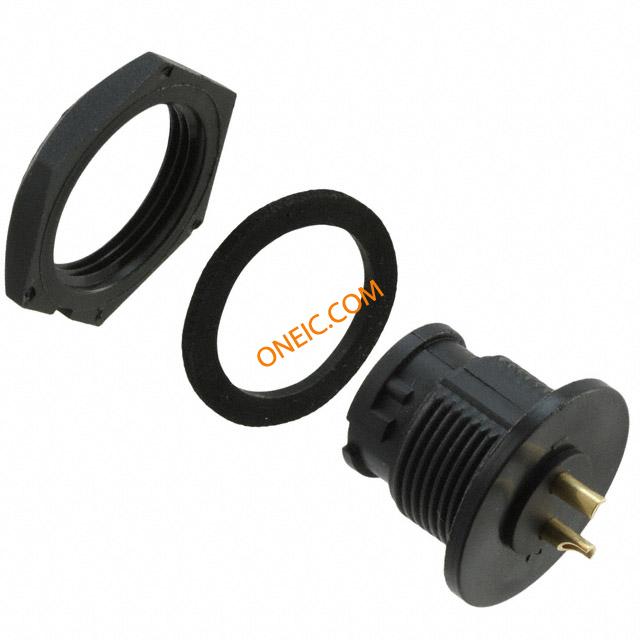

7282-2PG-300
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector 2P PIN PANEL MNT Conn Field Installable PIN 2 POS Solder Cup ST Panel Mount 2 Terminal 1 Port CONN RCPT 2POS PNL MNT PIN CONNECTOR, PANEL, MALE, 2WAY Connector;#20;SolderCup;2;Pin;GoldoverNickel600V |
| 分类 |
商业参数
| 商标名 | Mini-Con-X | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 600V | ||
机械参数

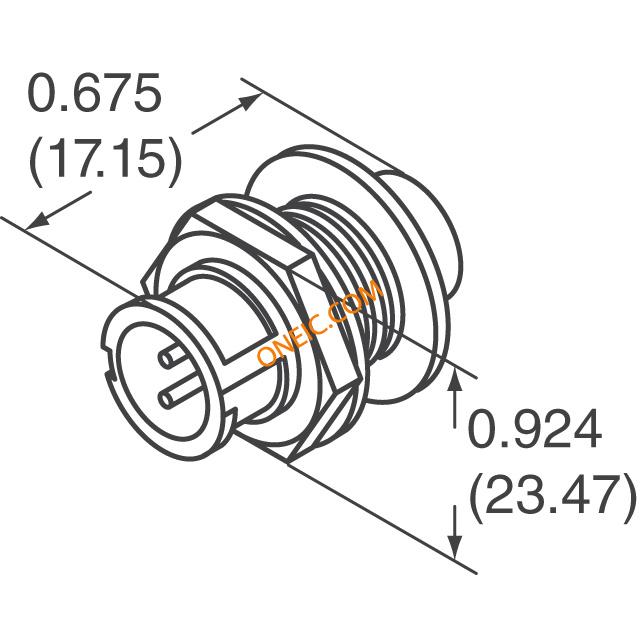

| 深度 | 20.6 | 高度 | 23.5 |
| 重量 | 0.01 | 直径 | 23.5 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 触头类型 | 2Signal |
| 安装类型 | Panel Mount | 外壳镀层 | Gold over Nickel |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 插入角度 | :20-2 | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Brass | 端接样式 | Solder Cup |
| 第一触头极性 | PIN | 触点数 | 2 |
| 接触件端接 | :Solder | 位数 | 2 |
| 外壳尺寸-插件 | :20 | 外壳材料及表面处理 | Nylon |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Field Installable | 连接器性别 | :Plug |
| 系列 | Mini-Con-X | 产品子类型 | Connectors |
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
