点击放大查看

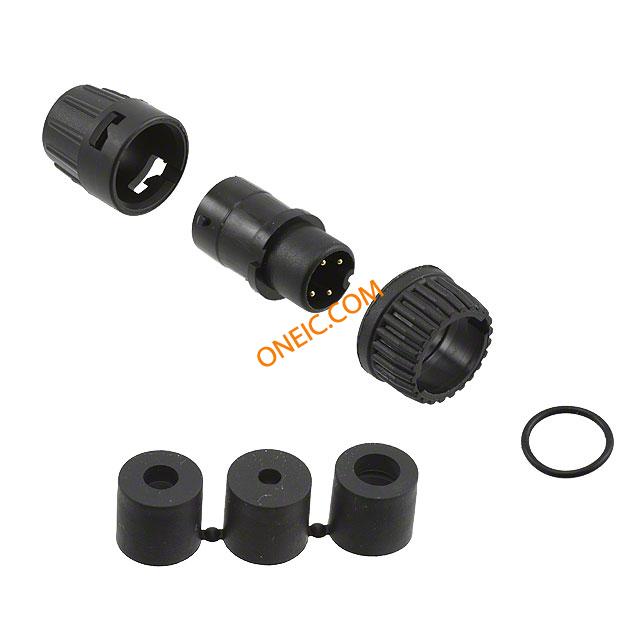

6282-4PG-3DC

制造商	Switchcraft, Inc.
描述	Standard Circular Connector 4P PIN CABLE END DAISY CHAIN GRMMT Conn Field Installable PIN 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port CONN PLUG 4POS CABLE PIN Connector;#2;SolderCup;4;Pin;GoldoverNickel(Standard)
分类	连接器解决方案圆形连接器标准圆形连接器

商业参数

商标名	Mini-Con-X	产品类别	Standard Circular Connector
标准包装数量	25	工厂包装数量	25

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Supplier Unconfirmed

电气参数

额定电压

600V

机械参数

直径	18.2	包装方式	Bulk
出线方向	No	方向	Keyed
外壳样式	Plug	端接方式	Solder Cup
触头类型	4Signal	安装类型	Cable Mount
外壳镀层	Gold over Nickel	连接器类型	Plug, Male Pins
接触镀层	Gold Over Nickel	紧固类型	Bayonet Lock
安装样式	Free Hanging	触头材料	Brass
总长度	33.4	端接样式	Solder Cup
第一触头极性	PIN	触点数	4
位数	4	外壳材料及表面处理	Nylon

产品信息

类型	Field Installable	系列	Mini-Con-X
产品子类型	Connectors

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 115°C

文档与媒体

Mini-Con-X Part Number Guide
