点击放大查看

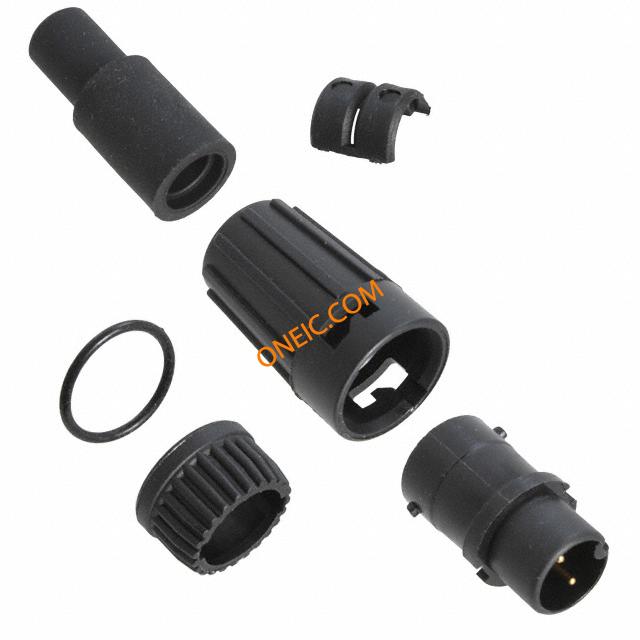

6282-2PG-522
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector MINI-CON CABLE #20 SOLDER Conn Field Installable PIN 2 POS Solder Cup ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS CABLE PIN MINI-CONCABLE#20SOLDER |
| 分类 |
商业参数
| 商标名 | Mini-Con-X | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
电气参数
| 额定电压 | 600V | 最大额定电流 | 4.8 A to 13 A |
机械参数
| 直径 | 18.2 | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder Cup |
| 触头类型 | 2Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Free Hanging |
| 外壳材料（壳体） | Plastic | 触头材料 | Brass |
| 总长度 | 42.7 | 端接样式 | Solder Cup |
| 第一触头极性 | PIN | 配接方向 | Bayonet |
| 触点数 | 2 | 位数 | 2 |
| 外壳材料及表面处理 | Nylon | ||
产品信息
| 类型 | Field Installable | 系列 | Mini-Con-X |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
