6280-4SG-3DC
| 制造商 | Switchcraft, Inc. |
| 描述 | Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN PLUG 4POS CABLE SKT MINI-CONCABLE#20CRIMP |
| 分类 |
商业参数
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
电气参数
| 额定电压 | 600V | 最大额定电流 | 4.8 A to 13 A |
机械参数
| 直径 | 18.2 | 包装方式 | Bulk |
| 出线方向 | No | 导线线规 | 18-16 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触头类型 | 4Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Wire |
| 触头材料 | Brass | 总长度 | 33.4 |
| 端接样式 | Crimp | 第一触头极性 | SKT |
| 触点数 | 4 | 位数 | 4 |
| 外壳材料及表面处理 | Nylon | ||
产品信息
| 类型 | Field Installable | 系列 | Mini-Con-X |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | Weathertight | 工作温度 | -40°C ~ 115°C |
相关型号
8282-4PG-519
Conxall / Switchcraft
Standard Circular Connector MINI-CON CBL-CBL #20 SOLDER Conn Field Installable PIN 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port CONN RCPT 4POS CABLE PIN MINI-CONCABLE-CABLE#20SOLDER
8282-4PG-315
Conxall / Switchcraft
Standard Circular Connector MINI-CON CBL-CBL #20 SOLDER Conn Field Installable PIN 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port CONN RCPT 4POS CABLE PIN MINI-CONCABLE-CABLE#20SOLDER
8280-4PG-516
Conxall / Switchcraft
Standard Circular Connector MINI-CON CBL-CBL #20 CRIMP Conn Field Installable PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN RCPT 4POS CABLE PIN MINI-CONCABLE-CABLE#20CRIMP
7280-4PG-300
Conxall / Switchcraft
Standard Circular Connector MINI-CON PAN MT #20 CRIMP Conn Field Installable PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONN RCPT 4POS PNL MNT PIN MINI-CONPANELMT#20CRIMP

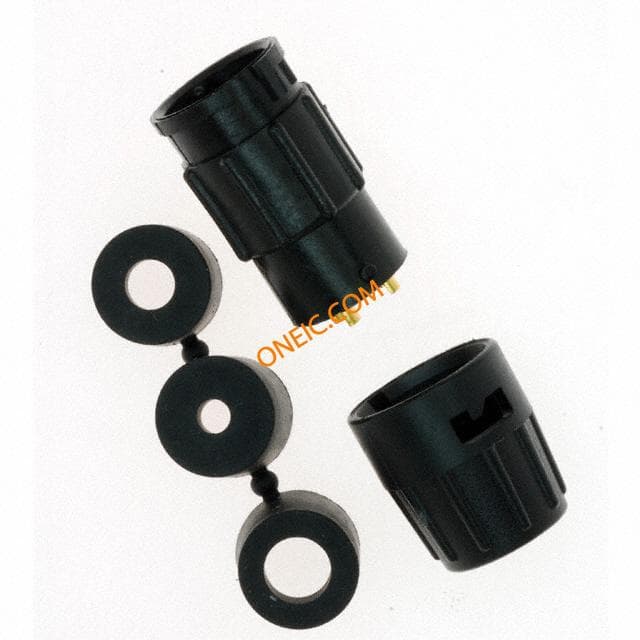

8282-4PG-3DC
