点击放大查看

6280-3PG-522

制造商	Switchcraft, Inc.
描述	Standard Circular Connector MINI-CON CABLE #20 CRIMP Conn Field Installable PIN 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS CABLE PIN MINI-CONCABLE#20CRIMP
分类	连接器解决方案圆形连接器标准圆形连接器

商业参数

标准包装数量

工厂包装数量

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Supplier Unconfirmed

电气参数

额定电压

600 V

最大额定电流

4.8 A to 13 A

机械参数

颜色	Black	直径	18.2
包装方式	Bulk	出线方向	No
导线线规	18-16	方向	Keyed
端接方式	Crimp	触头类型	3Signal
安装类型	Cable Mount	连接器类型	Plug, Male Pins
接触镀层	Gold	紧固类型	Bayonet Lock
安装样式	Cable	触头材料	Brass
总长度	42.7	端接样式	Crimp
第一触头极性	Pin (Male)	触点数	3
位数	3	外壳材料及表面处理	Nylon

产品信息

类型	Field Installable	系列	Mini-Con-X
产品子类型	Connectors

环境参数

防护等级

IP 67

工作温度

-40°C ~ 115°C

文档与媒体

Mini-Con-X Connectors

相关型号

8280-3SG-311

Conxall / Switchcraft

Standard Circular Connector MINI-CON CBL-CBL #20 CRIMP Conn Field Installable SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CONN RCPT 3POS CABLE SKT MINI-CONCABLE-CABLE#20CRIMP

¥21.9600

详情

暂无图片

7280-3SG-300

Conxall / Switchcraft

Standard Circular Connector MINI-CON PAN MT #20 CRIMP CONN RCPT 3POS PNL MNT SKT connector,Panelount,#20contacts,Crimpcontact,3,socket,withhexnut,gas

¥15.7680

详情

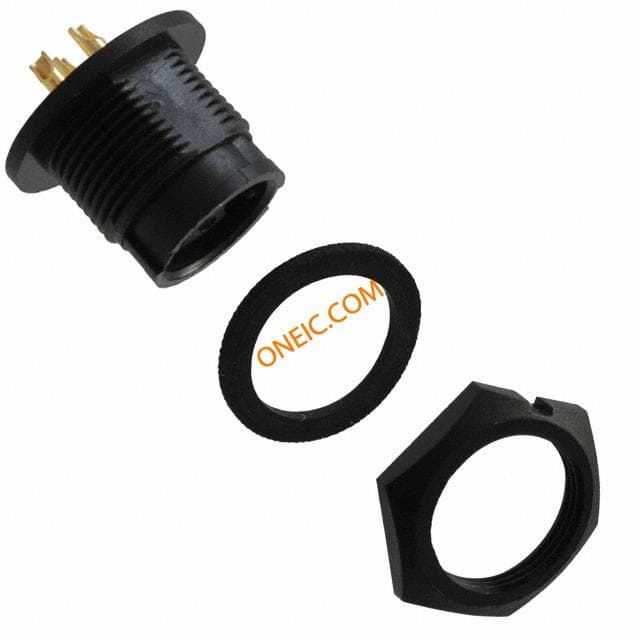

7282-3SG-300
