19032686A
| 制造商 | Comair Rotron |
| 描述 | FAN 12VDC 60X15MM CR0612HB-D71GL |
| 分类 |
商业参数
| 标准包装数量 | 120 | ||
电气参数
| 噪声 | 32.4 dB(A) | 功率（瓦） | 1.60W |
| 电压范围 | 10.8 ~ 13.2VDC | 额定电压 | 12VDC |
| 最大额定电流 | 0.130A | ||
机械参数
| RPM | 4500 RPM | 重量 | 0.084 lb (38.1g) |
| 风量 | 16.6 CFM (0.470m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.150 in H2O (37.4 Pa) | 尺寸/外形 | Square - 60mm L x 60mm H x 15mm W |
文档与媒体
相关型号

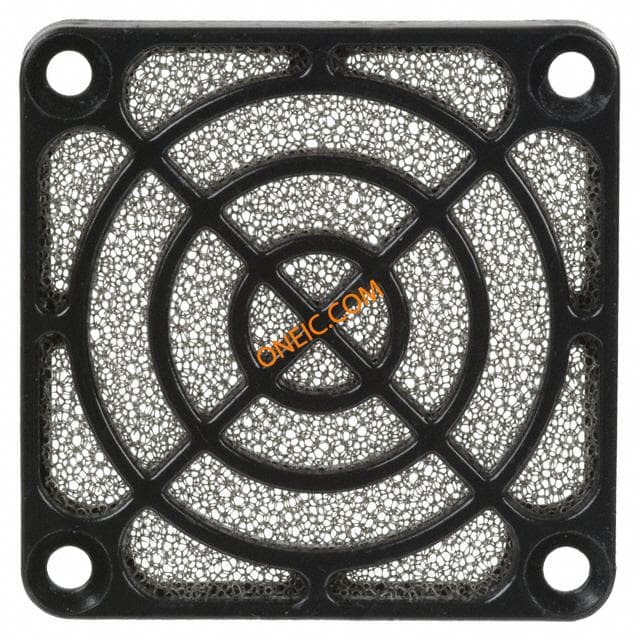

09250-F/45
Qualtek
Fan Cords & Accessories 45 PPI FLTR ASSEMBLY FINGER/FILTR ASM 60MM PLAS 45PPI Filter; Fan; Foam Filter Media; 2-1/2 in. Tube Axial Fans; Plastic Fan Accessories 45 PPI FLTR ASSEMBLY Thrml Mgmt Access Fan Filter Assembly 60mm Plastic FAN FILTER ASSEMBLY Filter,Fan;FoamFilterMedia;2-1/2in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 60 mm - 2 1/2in. Description: Guard, Retainer, Media (45 Pores Per Inch) Size Height (in.): 2.36 Size Width (in.): 2.36 Size Thickness (in.): 0.25 Size M/C (in.): 1.97
09252-G
Qualtek
Fan Cords & Accessories 60mm PLASTIC FAN GD FINGER GUARD 60MM PLASTIC Fan Accessories 60mm PLASTIC FAN GD Thrml Mgmt Access Fan Guard Plastic FanGuard,Plastic,21/2Inch(60MM)

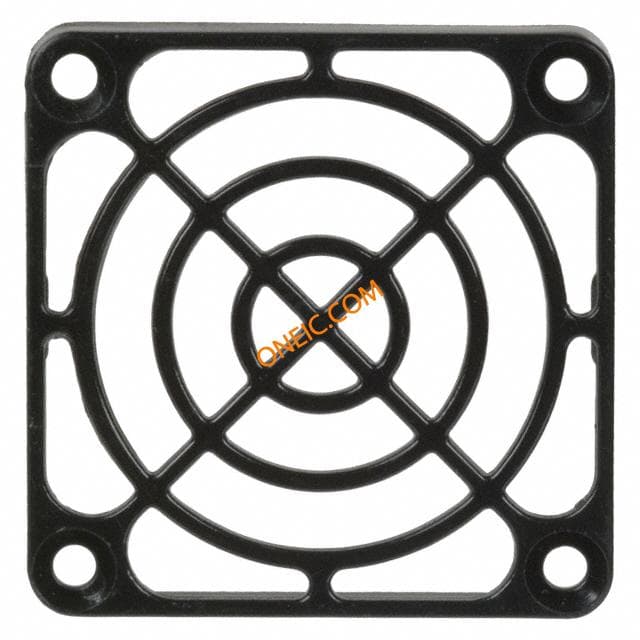

09250-G
Qualtek
Fan Cords & Accessories BLK PLSTC GUARD 2.36 FINGER GUARD 60MM PLASTIC Fan Accessories BLK PLSTC GUARD 2.36 Thrml Mgmt Access Guard 60mm Plastic FINGER GUARD Filter,Fan;2-1/2in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 60 For Use With Fan Size (in.): 2.5

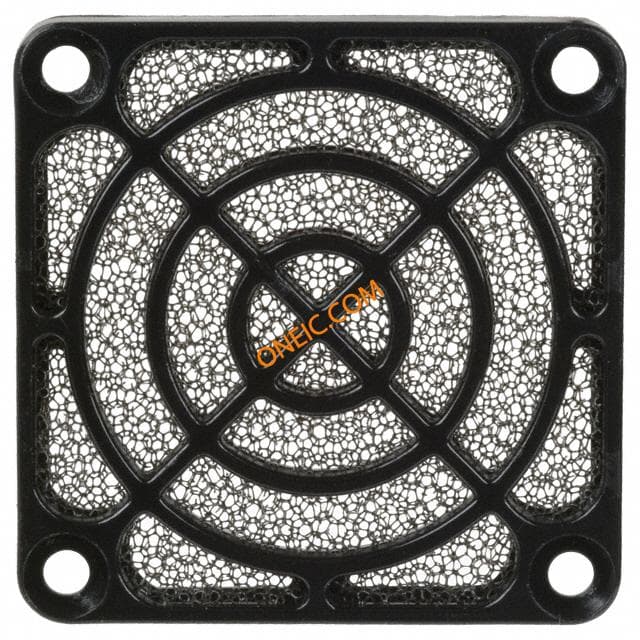

09250-F/30
Qualtek
Fan Cords & Accessories 30 PPI FLTR ASSEMBLY FINGER/FILTR ASM 60MM PLAS 30PPI Filter; Fan; Foam Filter Media; 2-1/2 in. Tube Axial Fans; Plastic Fan Accessories 30 PPI FLTR ASSEMBLY Thrml Mgmt Access Fan Filter Assembly 60mm Plastic FAN FILTER ASSEMBLY Filter,Fan;FoamFilterMedia;2-1/2in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 60 mm - 2 1/2in. Description: Guard, Retainer, Media (30 Pores Per Inch) Size Height (in.): 2.36 Size Width (in.): 2.36 Size Thickness (in.): 0.25 Size M/C (in.): 1.97
06250-SS
Qualtek
Fan Cords & Accessories STEEL FILTER 60MM FAN FILTER/SCREEN STEEL 60MM Filter; 06 Series; 2-1/2 in. Fan; Stainless Steel; 2.36 in. H x 0.138 in. W Fan Accessories STEEL FILTER 60MM Thrml Mgmt Access Fan Filter Screen Stainless Steel EMI/RFI Fan Filter Filter;06Series;2-1/2in.Fan;StainlessSteel;2.36in.Hx0.138in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 60 mm - 2 1/2 in. Use With Fan Size (in.): 2.5 Finish: Stainless Steel Sixz (inches) H (sq): 2.36 Size (inches) Thickness: 0.138 M/C: 1.95
8465
OZ Gedney
SEE 68785577645
8467
Irwin
- 1" - 14 NS, HCS HEX DIE
