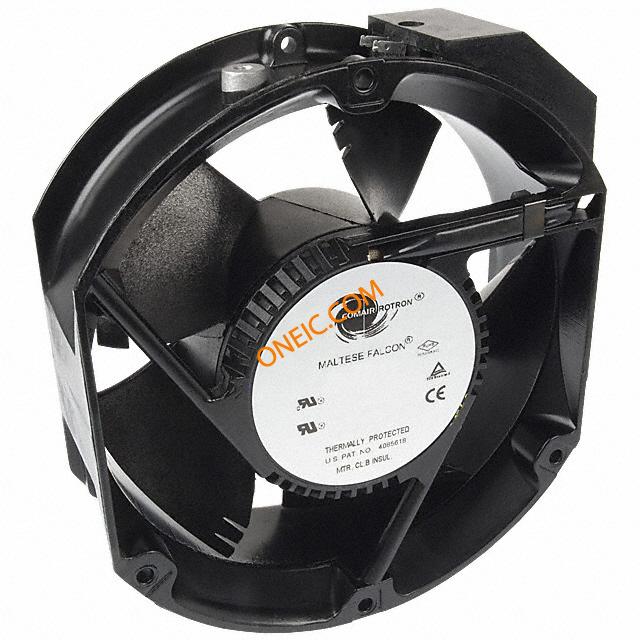

19031844A
| 制造商 | Comair Rotron |
| 描述 | FAN 230VAC 172MM X 55MM MA77B3 |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
电气参数
| 噪声 | 59 dB(A) | 功率（瓦） | 41.4W |
| 额定电压 | 230VAC | 最大额定电流 | 0.180A |
机械参数
| RPM | 3400 RPM | 重量 | 2.3 lbs (1kg) |
| 风量 | 300.0 CFM (8.50m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Terminals | 轴承类型 | Ball |
| 静压 | 0.840 in H2O (209.2 Pa) | 刀片材料 | Polycarbonate (PC) |
| 框架材料 | Aluminum | 尺寸/外形 | Rectangular/Rounded - 172mm L x 150mm H x 55mm W |
环境参数
| 额定寿命 | 53000 hrs @ 40°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
文档与媒体
