19030616A
| 制造商 | Comair Rotron |
| 描述 | FAN 24VDC SPRINT ST24B3 |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
电气参数
| 噪声 | 40.9 dB(A) | 功率（瓦） | 3.30W |
| 电压范围 | 12 ~ 28VDC | 额定电压 | 24VDC |
| 最大额定电流 | 0.140A | ||
机械参数
| RPM | 3440 RPM | 重量 | 0.397 lb (180.08g) |
| 风量 | 34.0 CFM (0.963m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.225 in H2O (56.0 Pa) | 刀片材料 | Plastic |
| 框架材料 | Plastic | 尺寸/外形 | Square - 80mm L x 80mm H x 32mm W |
文档与媒体
相关型号
06325-M
Qualtek
Fan Cords & Accessories ALUM FLTR MIL 3 1/8 FAN FILTER/SCREEN 80MM Filter; 06 Series; 3-1/8 in. Fan; Aluminum; 3.30 in. H x 0.175 in. W Fan Accessories ALUM FLTR MIL 3 1/8 Thrml Mgmt Access Fan Filter Screen 80mm Aluminum Filter;06Series;3-1/8in.Fan;Aluminum;3.30in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 80 mm - 3 1/8 in. Use With Fan Size (in.): 3.125 Finish: Mill (No Finish) Sixz (inches) H (sq): 3.3 Size (inches) Thickness: 0.175 M/C: 2.81
09080-G
Qualtek
Fan Cords & Accessories PLASTIC GUARD 80MM FINGER GUARD 80MM PLASTIC Fan Accessories PLASTIC GUARD 80MM Thrml Mgmt Access Fan Guard Plastic FINGER GUARD FanGuard;Plastic Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 80 For Use With Fan Size (in.): 3.125
06325-SS
Qualtek
Fan Cords & Accessories STEEL FILTER 80MM FAN FILTER/SCREEN STEEL 80MM Filter; 06 Series; 3-1/8 in. Fan; Stainless Steel; 3.30 in. H x 0.175 in. W Fan Accessories STEEL FILTER 80MM Thrml Mgmt Access Fan Filter Screen 80mm Aluminum EMI/RFI Fan Filter Filter;06Series;3-1/8in.Fan;StainlessSteel;3.30in.Hx0.175in.W Fan Accessories Aluminum & Stainless Steel Fan Filters 80 mm - 3 1/8 in. Use With Fan Size (in.): 3.125 Finish: Stainless Steel Sixz (inches) H (sq): 3.3 Size (inches) Thickness: 0.175 M/C: 2.81
09325-F/45
Qualtek
Fan Cords & Accessories 45 PPI FLTR ASSEMBLY FINGER/FILTR ASM 80MM PLAS 45PPI Filter; Fan; Foam Filter Media; 3-1/8 in. Tube Axial Fans; Plastic Fan Accessories 45 PPI FLTR ASSEMBLY Thrml Mgmt Access Fan Filter Assembly 80mm Plastic FAN FILTER ASSEMBLY Filter,Fan;FoamFilterMedia;3-1/8in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Filter Assemblies 80 mm - 3 1/8 in. Description: Guard, Retainer, Media (45 Pores Per Inch) Size Height (in.): 3.29 Size Width (in.): 3.28 Size Thickness (in.): 0.39 Size M/C (in.): 2.81
09325-G
Qualtek
Fan Cords & Accessories BLK PLSTC GUARD 3.15 FINGER GUARD 80MM PLASTIC Fan Accessories BLK PLSTC GUARD 3.15 Thrml Mgmt Access Guard 80mm Plastic FINGER GUARD Filter,Fan;3-1/8in.TubeAxialFans;Plastic Fan Accessories Plastic Fan Guards For Use With Fan Size (mm): 80 For Use With Fan Size (in.): 3.125
09325-F/30
Mechatronics
Fan Filter Assemblies Contains: Guard, Foam Media & Retainer Media: 30 Pores Per Inch Height (inches): 3.29 Width (inches): 3.29 Thickness (inches): 0.39

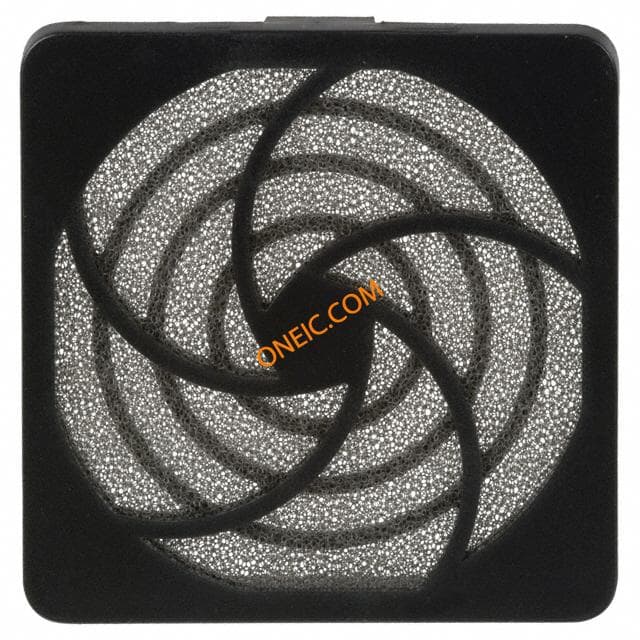

09325-F/45
Mechatronics
Fan Filter Assemblies Contains: Guard, Foam Media & Retainer Media: 45 Pores Per Inch Height (inches): 3.29 Width (inches): 3.29 Thickness (inches): 0.39
