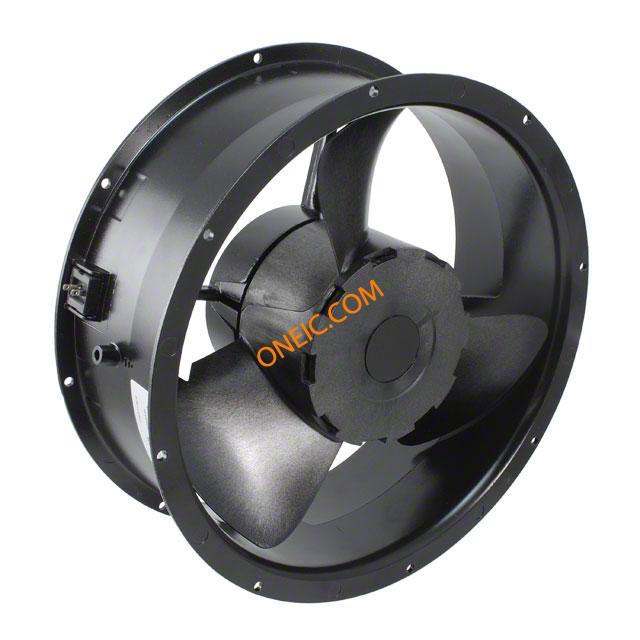

19020188A
| 制造商 | |
| 描述 | FAN 115VAC 254MM X 89MM CLE2L2 |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
电气参数
| 噪声 | 49.2 dB(A) | 功率（瓦） | 61W |
| 额定电压 | 115VAC | 最大额定电流 | 0.5A |
机械参数
| RPM | 1650 RPM | 重量 | 4.4 lbs (2kg) |
| 风量 | 525.0 CFM (14.86m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.331 in H2O (82.4 Pa) | 刀片材料 | Plastic |
| 框架材料 | Aluminum | 尺寸/外形 | Round - 254mm Dia x 89mm W |
