S-302-CCT
| 制造商 | |
| 描述 | Jones Plugs & Sockets 2C CBL MNT SOCKET CONN SOCKET 2POS CADMIUM SOLDER PLUG & SOCKET CONNECTOR, SOCKET, 2POS |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| 海关税号 | 85411000 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
机械参数
| 颜色 | Black | 重量 | 0.005 |
| 包装方式 | Bulk | 端接方式 | Solder Eyelet(s) |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Socket, Jones |
| 接触镀层 | Cadmium | 紧固类型 | Push-Pull |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 第一触头极性 | :Socket | 触点数 | :2 |
| 接触件端接 | :Solder | 位数 | 2 |
| 绝缘材料 - 材质 | Phenol Formaldehyde (Phenolic) | 第一连接器安装类型 | :Cable |
产品信息
| 连接器性别 | :Receptacle | 系列 | :300 |
| 产品特性 | Hood, Cable Clamp | ||
环境参数
| 工作温度 | 105°C | ||
文档与媒体
相关型号
P-302-CCT
Cinch
Jones Plugs & Sockets 2C CBL MNT PLUG CONN PLUG 2POS CADMIUM SOLDER SEE750-0201P-302H-CCT
¥27.1800
详情

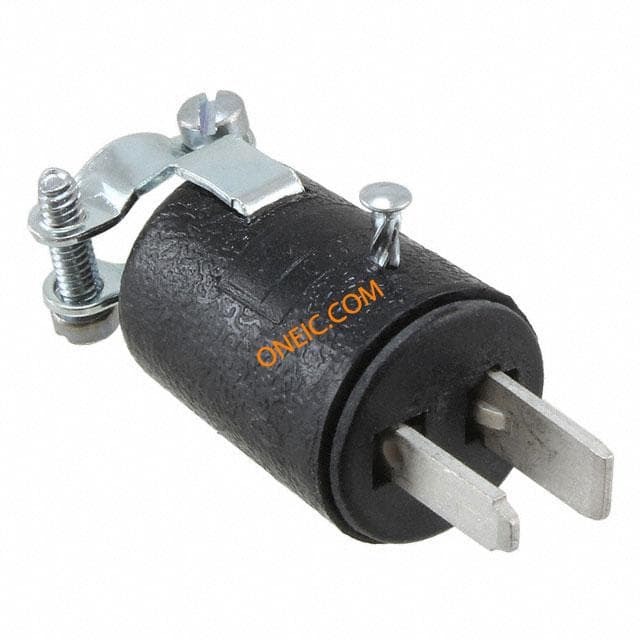

P-302H-CCT
Cinch Connectors
CONN PLUG 2POS TIN SOLDER Jones Plugs & Sockets 2C CBL MNT PLUG Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONNECTOR,JONESPLUGWITHCABLECLAMPTOP,SOLDEREYELETS,POLARIZED,2CONTACT
¥85.6800
详情
P-302H-AB
Cinch Connectors
CONN PLUG 2POS TIN SOLDER Jones Plugs & Sockets 2C PNL MNT PLUG CONNECTOR,JONESPLUGW/ANGLEBRACKETS,SOLDEREYELETS,POLARIZED,2CONTACT
¥9.0600
详情

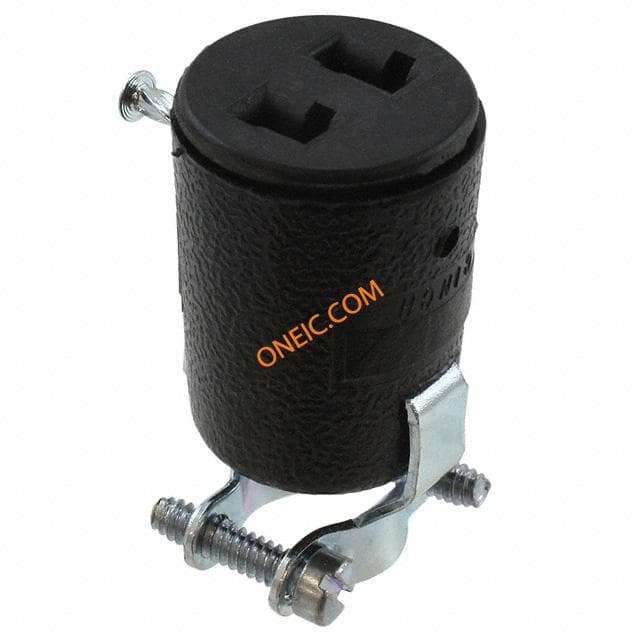

S-302H-CCT
Cinch Connectors
CONN SOCKET 2POS TIN SOLDER Jones Plugs & Sockets 2C CBL MNT SOCKET CONNECTOR,JONESSOCKETW/CABLECLAMPTOP,SOLDEREYELETS,POLARIZED,2CONTACT
¥18.2240
详情
