MS-16-140
| 制造商 | Cinch Connectors |
| 描述 | Terminal Block Tools & Accessories MARKING STRIP 16 TRM 140 Series BARRIER BLOCK MARKER STRIP 16POS connector accessory;marker strip for 16 terminal barrier term block;series 140 Connector Accessories Marker Strip 16 Terminals TERMINAL BLOCK MARKER, 1 TO 16, 9.53MM MarkerStrip;TermStrip;16;BarrierConn;TermBlock;Series140 |
| 分类 |
商业参数
| 产品 | Tools & Accessories | 产品类别 | Terminal Block Tools & Accessories |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 标准 | ULRecognized,CSACertified |
| 海关税号 | 85369010 | ||
机械参数
| 颜色 | Black | 间距 | 0.375" (9.53mm) |
| 重量 | 0.005 | 材料（通用） | EnemaGradeXPC |
| 螺钉尺寸 | 5-40 | 方向 | HorizontalPrint |
| 排数 | Double | 螺丝材料 | Steel |
| 主要材料 | MarkerStrip | 连接器颜色 | White |
| 绝缘材料 - 材质 | MoldedMonoblock,GeneralPurposePhenolic | ||
产品信息
| 类型 | Marker Strips | 图例 | Blank |
| 系列 | :140 | 制造商全称 | Series140 |
| 图例（文字） | Nos.1-16 | 附件类型 | :Terminal Block Marker |
| 有铅工艺兼容 | :No | 适用产品/相关产品 | 140 Series |
环境参数
| 测试温度 | :No | 工作温度 | -55to+300°F |
文档与媒体
相关型号

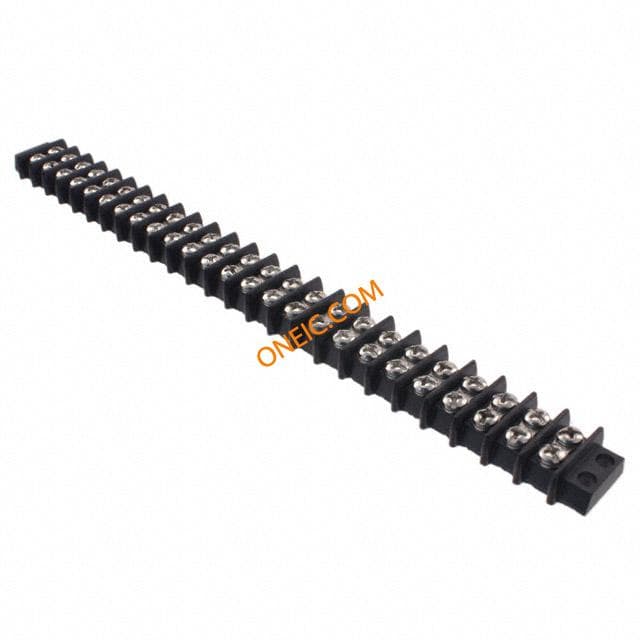

25-140
Cinch
Barrier Terminal Blocks 25 TERMINALS .375 140 Series CONN BARRIER BLOCK .375" 25 CIRC connector;barrier terminal block;double row;25 terminals;rated 15 amp;250 volts Conn Barrier Strip 50 POS 9.53mm Screw ST Panel Mount 15A Conn;TermStrip;Barrier;25;0.375in;DblRow;16AWG(Max);Series140;15A;250V
15-140
Cinch
Barrier Terminal Blocks 15 TERMINALS .375 140 Series CONN BARRIER BLOCK .375" 15 CIRC connector;barrier terminal block;double row;15 terminals;rated 15 amp;250 volts Conn Barrier Strip 30 POS 9.53mm Screw ST Panel Mount 15A TERMINAL BLOCK, BARRIER, 15POS, 16AWG Conn;TermStrip;Barrier;15;0.375in;DblRow;16AWG(Max);Series140;15A;250V

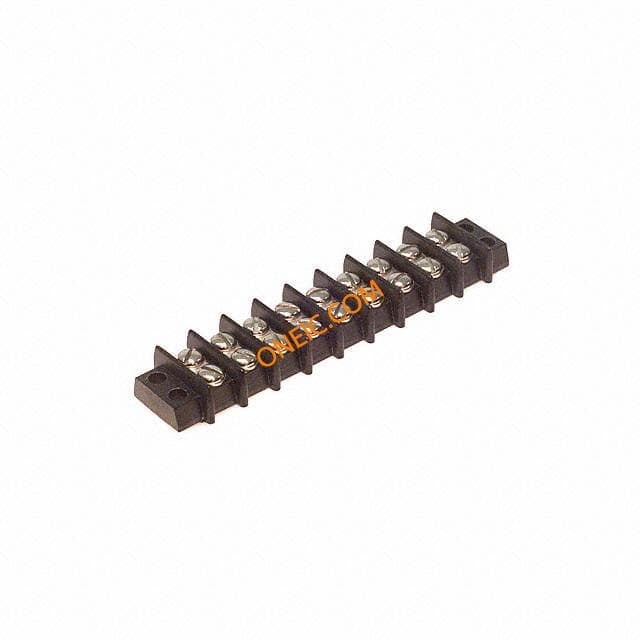

9-140
Cinch
Barrier Terminal Blocks 9 TERMINALS .375 BARRIER BLOCK 9CIRC .375" connector;barrier terminal block;double row;9 terminals;rated 15 amp;250 volts Conn Barrier Strip 18 POS 9.53mm Screw ST Panel Mount 15A TERMINAL BLOCK, BARRIER, 9POS, 16AWG Conn;TermStrip;Barrier;9;0.375in;DblRow;16AWG(Max);Series140;15A;250V

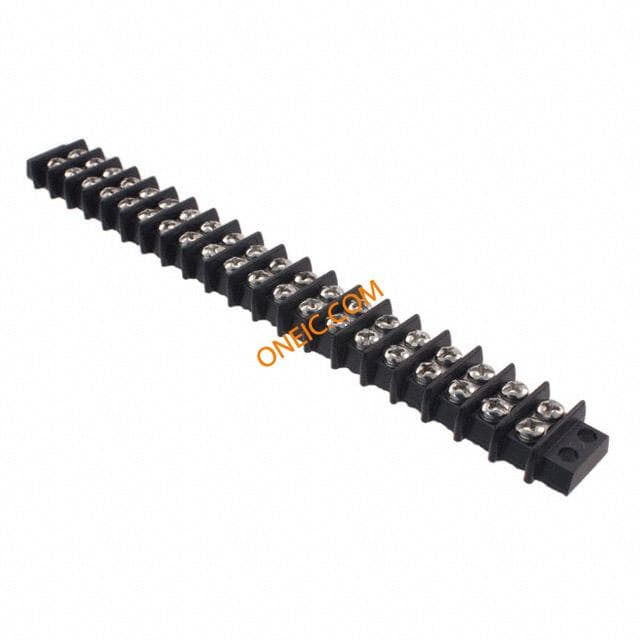

20-140
Cinch
Barrier Terminal Blocks 20 TERMINALS .375 140 Series CONN BARRIER BLOCK .375" 20 CIRC connector;barrier terminal block;double row;20 terminals;rated 15 amp;250 volts Conn Barrier Strip 40 POS 9.53mm Screw ST Panel Mount 15A TERMINAL BLOCK, BARRIER, 20POS, 16AWG Conn;TermStrip;Barrier;20;0.375in;DblRow;16AWG(Max);Series140;15A;250V
