DAUH-15P-FO

制造商	Cinch Connectors
描述	D-Sub Standard Connectors 15C PLG NO CONTACTS D*U SERIES CONN DB15 PLUG CRIMP W/O CONT Conn Housing PL 15 POS Crimp ST Cable Mount CONNECTOR, D-SUB, PLUG HOUSING LESS CONTACTS, FOR 15 CRIMP PIN CONTACTS
分类	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	D-Sub Standard Connectors	标准包装数量	750
工厂包装数量	750

合规参数

RoHS

RoHS Compliant

电气参数

最大额定电流

5 A

机械参数

颜色	Black	包装方式	Bulk
外壳尺寸	A	重量（g）	5.15700
触头类型	Signal	安装类型	Straight
外壳镀层	Zinc	连接器类型	Plug for Male Contacts
接触镀层	Gold	法兰特征	Housing/Shell (Unthreaded)
安装样式	Wire	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub
触头材料	Copper Alloy	端接样式	Crimp
触点数	15	介电材料	Polyamide (PA), Nylon, Glass Filled
位数	15	外壳材料及表面处理	Steel, Clear Chromate Zinc Plated
外壳尺寸，连接器布局	2 (DA, A)

产品信息

备注

Contacts Not Provided

连接器性别

Male

环境参数

插拔次数

500

工作温度

- 65 C to + 125 C

文档与媒体

PDF 文档

DxUH-xxP

PDF 文档

1201193412-DXUH-XXP.PDF

相关型号

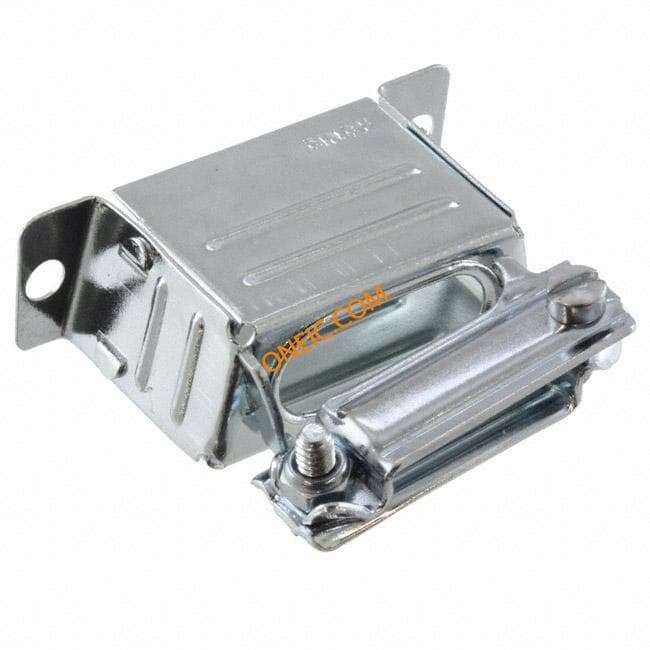

DA-24658-31

Cinch

D-Sub Backshells 15C DEEP STRT CLMP JUNCTION SHELL 15POS STR CLAMP JUNCTION SHELL, D-SUB, SIZE DA Hood;D-Sub;15Pos;StraightExit;DASeries;Metal;18.11mmCblDiaOne-Piece

¥60.9749

详情

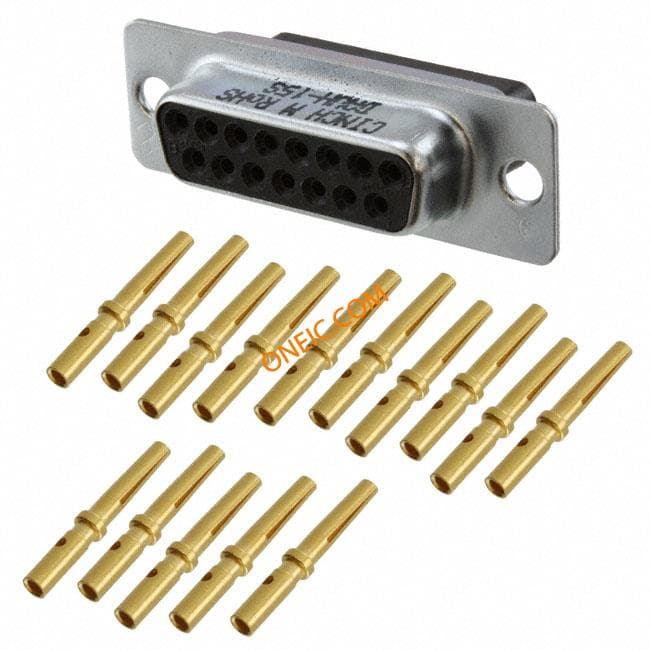

DAUH-15S

Cinch

D-Sub Standard Connectors 15C SCKT W/CONTACTS D U SERIES CONN DB15 SOCKET CRIMP W/CONT Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port CONNECTOR,D-SUBMINIATURE,STRRECEPTACLEW/MACHINEDCRIMPCONTACTS,15SOCKETCONT

¥42.1872

详情

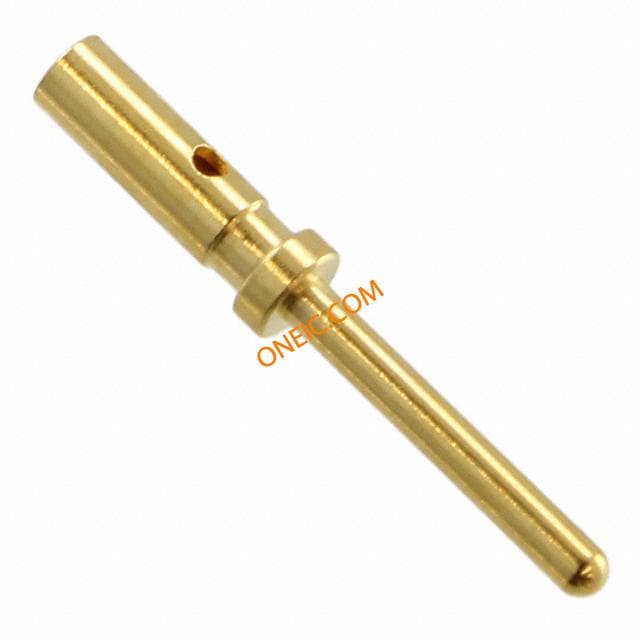

030-1952-000

Cinch

D-Sub Contacts MCHNED PIN 20-24AWG CONTACT DU PIN CRIMP PLTD connector comp;d-sub;machined crimp pin contact;for econo-d;for 20;22;24awg wire Contact PIN Crimp ST Cable Mount Loose Piece connectorcomp,d-sub,machinedcrimppincontact,forecono-d,for20,22,24awgwire

¥1.4008

详情

DAUH-15S-FO

Cinch

D-Sub Standard Connectors 15C SCKT NO CONTACTS D*U SERIES CONN DB15 SOCKET CRIMP W/O CONT Conn Housing SKT 15 POS Crimp ST Cable Mount

¥6.2832

详情

DA-19977-31

Cinch

D-Sub Backshells MTL CONN BACKSHELL SZ A RA CONN 15P JUNCTION SHELL 15POS R/A CLAMP Backshell 90° A Shell Size Clear Chromate Over Zinc Steel METAL CONNECTOR BACKSHELL

¥25.2960

详情

DMH-A-003

Cinch

D-Sub Backshells 15P METAL 2 PC HOOD CONN BACKSHELL DB15 DIECAST

¥36.2400

详情

030-1952-030

Cinch

D-Sub Contacts DSUB CRIMP CONTACT CONTACT DU PIN CRIMP PLTD Contact PIN Crimp ST Cable Mount Loose Piece

¥3.1552

详情

DCH-A-003

Cinch

D-Sub Backshells PLSTC CONN BCKSHELL 15P USE W/D-SUB CONN CONN HOOD DSUB 15POS MTL PLAST CONNECTOR ACCESSORY;METALIZED PLASTIC HOOD W/GROMMETS;FOR STD15/HD26 CONTACT TWO PIECE D SUB BACKSHELL, SIZE DA, ABS Hood;D-Sub;15Pos;StraightExit;D*HSeries;MetallizedPlastic;0.210-0.320In.CblDia

¥40.5266

详情

DAU-15S-FO

Cinch

D-Sub Standard Connectors 15C SCKT NO CONTACTS D*U SERIES Conn Housing RCP 15 POS Crimp ST Panel Mount

¥10.3360

详情

SPC15138

Avnet, Inc.

D SUB CONNECTOR, STANDARD, 15POS, RCPT

详情
