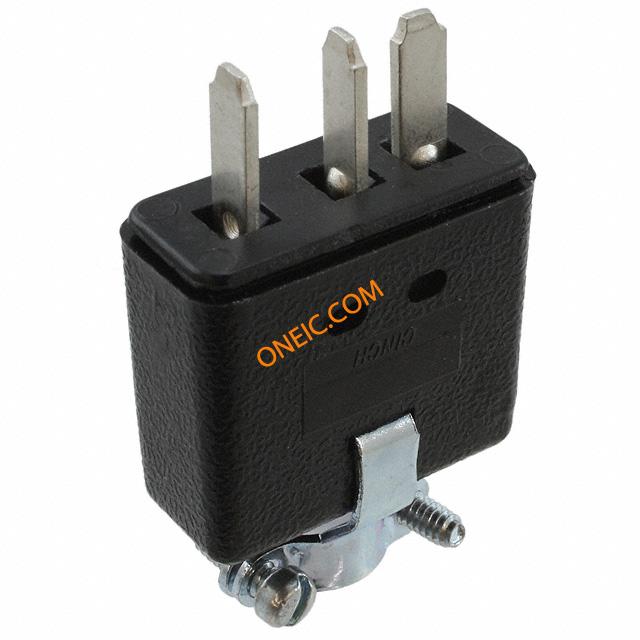

P-303H-CCT
| 制造商 | |
| 描述 | CONN PLUG 3POS TIN SOLDER Jones Plugs & Sockets 3C CBL MNT PLUG Conn Power PL 3 POS ST Cable Mount 3 Terminal 1 Port CONNECTOR,JONESPLUGW/CABLECLAMPTOP,SOLDEREYELETS,POLARIZED,3CONTACT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Jones Plugs & Sockets | 标准包装数量 | 500 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | ULRecognizedFileNo:E170218(UL1977),E130965(UL1863),CSA-LR31996 |
| 认证机构 | CSA,UL | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
机械参数
| 颜色 | Black | 宽度 | 1.034in.±0.016in. |
| 直径 | 0.313in. | 材料（通用） | Thermoplastic |
| 包装方式 | Bulk | 厚度 | 0.472in.±0.016in. |
| 端接方式 | Solder Eyelet(s) | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Plug, Jones |
| 接触镀层 | Tin | 紧固类型 | Push-Pull |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 1.034" |
| 主要材料 | Jones | 触点数 | 3 |
| 介电材料 | Phenolic | 位数 | 3 |
| 绝缘材料 - 材质 | Phenol Formaldehyde (Phenolic) | ||
产品信息
| 类型 | CablePlug | 系列 | 300 |
| 产品特性 | Hood, Cable Clamp | 制造商全称 | 300Series |
| 产品子类型 | Plug Housings | 适用产品/相关产品 | Cabletopanel&cabletocableapplications |
环境参数
| 工作温度 | 105°C | ||
相关型号
S-303-FP
Cinch
Jones Plugs & Sockets 3P SCKT FLUSH PLATE SLDR EYELET SRS 300 CONN SOCKET 3POS CADMIUM SOLDER Conn Multiple Density SKT 3 POS Solder Lug ST Panel Mount
¥39.4400
详情

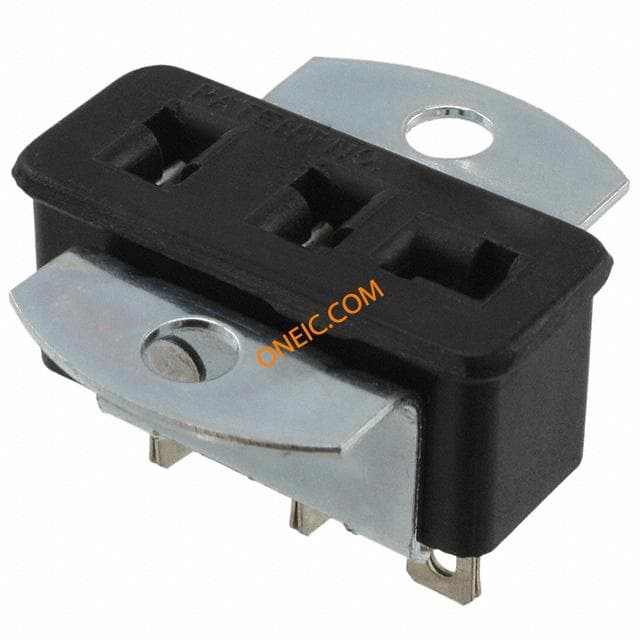

S-303H-AB
Cinch Connectors
CONN SOCKET 3POS TIN SOLDER Jones Plugs & Sockets 3C PNL MNT SOCKET CONNECTOR,JONESSOCKETW/ANGLEBRACKETS,SOLDEREYELETS,POLARIZED,3CONTACT
¥12.8520
详情
S-303-HLAB
Cinch Connectors
CONN SOCKET 3POS TIN SOLDER
¥8.2824
详情

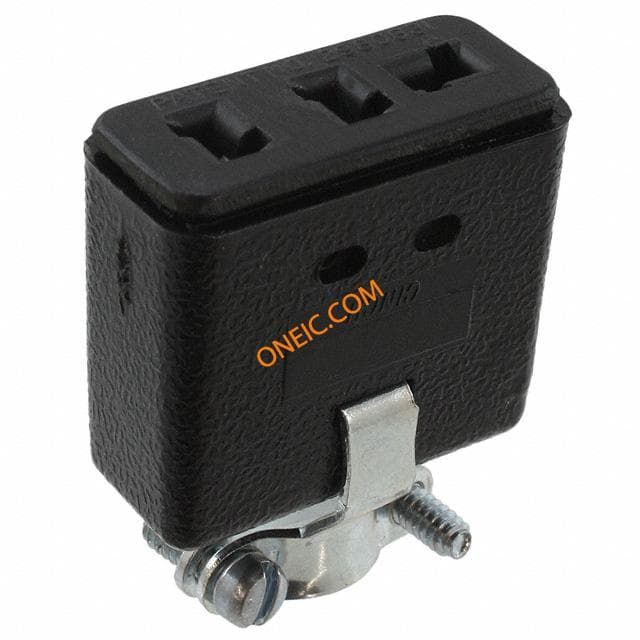

S-303H-CCT
