4304H1

制造商	Chicago Miniature Lighting, LLC
描述	Standard LEDs - Through Hole RED DIFFUSED LED; Red; T- 1 3/4 (5mm); Super Brite; 6.3 mcd; Diffused Lens LED Lamp LED, RED, T-1 3/4 (5MM), 6.3MCD, 650NM
分类	光电子学分立LED指示灯高亮LED

对参数有疑问？问 AI 助手

商业参数

交货时间	112 Days	子类别	LED
标准包装规格	1,000	产品类别	Standard LEDs - Through Hole
工厂包装数量	100

合规参数

RoHS

RoHS Compliant

海关税号

85414010

电气参数

灯类型	:T-1 3/4 (5mm)	光学尺寸	T-1 3/4
视角	65 deg	LED正向电流	10 mA
LED正向电压	2 V	主波长	650 nm
直流正向电流（If）（最大）	:10mA

机械参数

颜色	:Red	重量	0.002
LED颜色	:Red	包装方式	Bulk
透镜颜色	Diffused	透镜样式	Dome
透镜尺寸（因值为长宽高，非直径）	5 mm	安装样式	Through Hole
照明颜色	Red

环境参数

光通量 @ 电流/温度

6.3 mcd

文档与媒体

PDF 文档

1-81.pdf

PDF 文档

730326.pdf

PDF 文档

4304H%20Series%20Solid%20State%20LED%20Lamps-Super%20Brite%2030%20mcd%20T-1%203_4%20(5mm).pdf

PDF 文档

4304H%20Series%20Solid%20State%20LED%20Lamps-Super%20Brite%2030%20-276453.pdf

相关型号

TLHR5400

Vishay Intertechnology, Inc.

LED Uni-Color Red 635nm 2-Pin T-1 3/4 T/R Standard LEDs - Through Hole Red Tinted Diffused DOME-STYLE RED 5MM LED RED TINT. DIFF LED Uni-Color Red 635nm T-1 3/4 Lamp; LED;Red;3.5mcd;5.8mmDia.;T-1-3/4;30mA;2V;635nm;+/-30deg;GaAsP on GaP;15V LED, RED, T-1 3/4 (5MM), 10MCD, 625NM LED, 5MM, HE-RED LED;Red;3.5mcd;5.8mmDia.;T-1-3/4;30mA;2V;635nm;+/-30deg;GaAsPonGaP;15V Vishay 红色可见光 LED 10 mcd, 60 °视角 5mm (T-1 3/4) 通孔

¥0.7128

详情

521-9320F

Dialight

Standard LEDs - Through Hole DISCRETE LED LAMP LED Uni-Color Red 635nm 2-Pin T-1 3/4 Bulk LED 5MM RED 626NM TINT DIFF 2MA LED; 5MM; LOW CURRENT; 2MA; DIFFUSED; RED LED, RED, T-1 3/4 (5MM), 2MCD, 635NM

¥2.5848

详情

521-9324F

Dialight

Standard LEDs - Through Hole DISCRETE LED LAMP LED Uni-Color Red 635nm 2-Pin T-1 Bulk LED 3MM RED DIFFUSED 7MA LED, RED, T-1 (3MM), 1.6MCD, 635NM LED,3MM,LOWCURRENT,DIFFUSED,RED

¥2.8656

详情

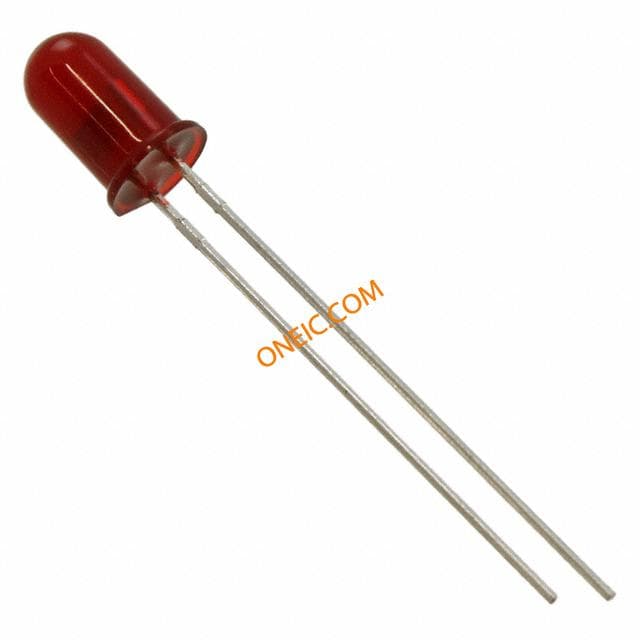

521-9246F

Dialight

Standard LEDs - Through Hole 5mm RED LED LAMP LED Uni-Color Red 635nm 2-Pin T-1 3/4 Bulk LED 5MM HI EFF RED DIFF 25MA LED; HIGH EFFICIENCY; 5MM; RED LED, RED, T-1 3/4 (5MM), 7MCD, 635NM LED,HIGHEFFICIENCY,5MM,RED

¥2.0376

详情

CMS322RTP

VCC

LED Lenses 5mm Lo Prof Seal Red Moisture Sealed Low Profile Lenses For LEDs CLIPLITEPANELLENSESFORPCBRED

¥4.8240

详情

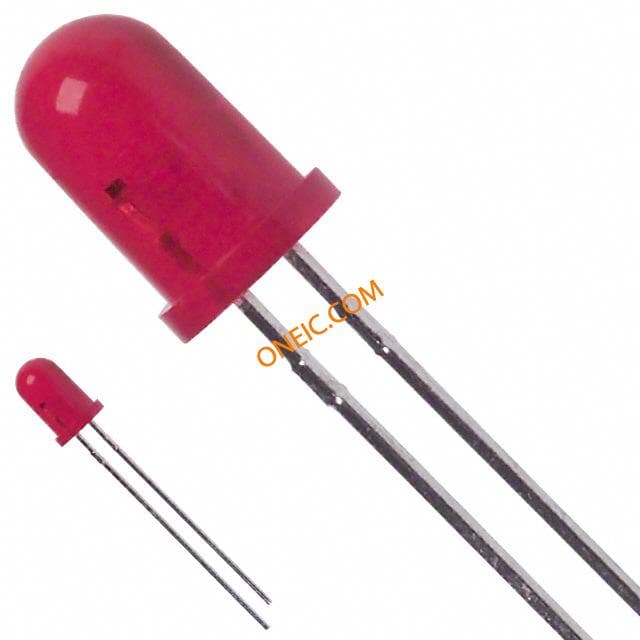

SSL-LX5093ID
