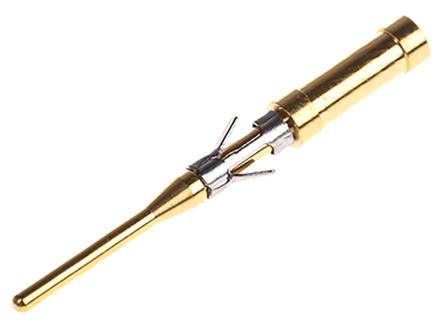

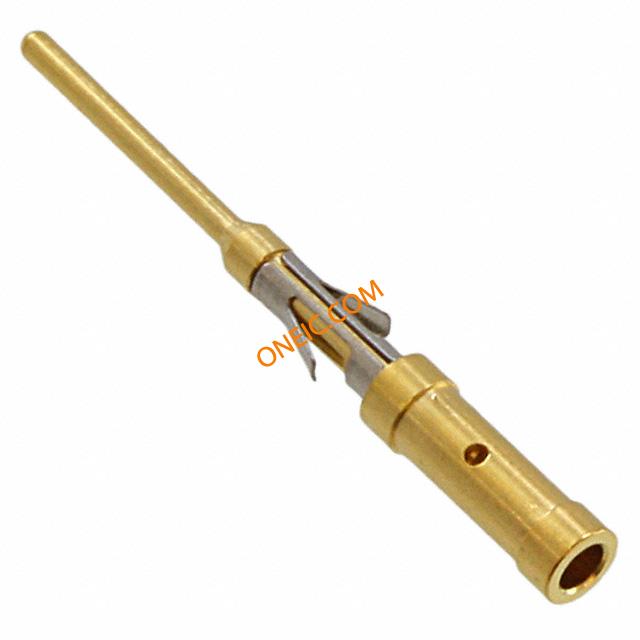

SA3542/P

制造商	Bulgin
描述	CONT PIN CRIMP 22-26AWG GLD 1=10 6000 Series Size 16, 22 3A Male Circular Connector Contact, Crimp,Wire size 26 to 20AWG CRIMP CONTACT, PIN, FOR 16 / 22 WAY Pincrimpcontact(for16&22pole) Bulgin 6000 系列 3A 公压接端接圆形连接器触芯, 26 → 20 AWG 线规格
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Compliant

海关税号

85366990

电气参数

额定电压	60 V ac/dc	接触电阻	10mΩ
最大额定电流	3A

机械参数

重量	0.0038	包装方式	Bulk
导线线规	22-26 AWG	端接方式	Crimp
触点尺寸	16, 22	安装类型	Cable Mount, Panel Mount
插针或插孔	Pin	接触镀层	Gold
触头材料	Brass	第一触头极性	:Pin
接触件端接	Crimp

产品信息

类型	Power	连接器性别	Male
系列	6000	适用产品/相关产品	Circular Connector

环境参数

工作温度

+120°C

相关型号

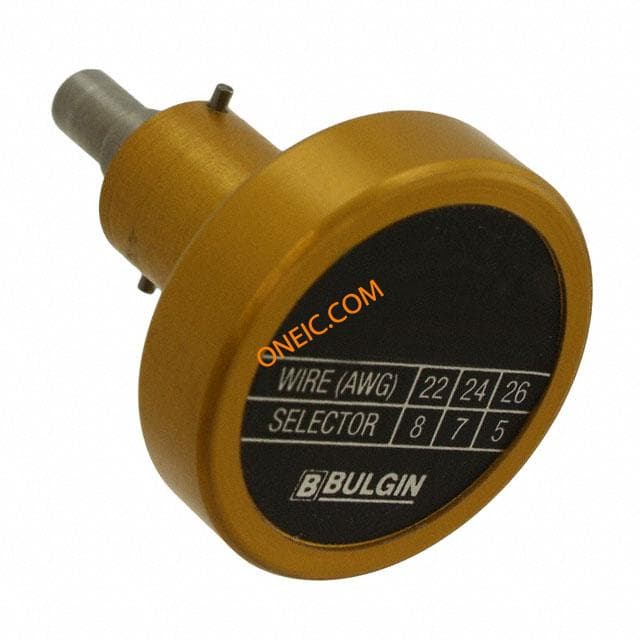

15019/SP

Bulgin

TOOL POSITIONER FOR 14025 Crimp contact locator,16&22w,6000 series CRIMP CONTACT LOCATOR, 16 / 22 WAY Crimpcontactlocator(for16&22pole) Bulgin 6000 系列 16、22 触点压接工具定位器

¥922.4118

详情

14917/SP

Bulgin

TOOL CONT CARRIER REMOVE Contact carrier removal tool,6000 series Contact Carrier Removal Tool CONTACT CARRIER REMOVAL TOOL Contactcarrierremovaltool(allpoles) Tool: for demounting of terminals; 6000 Bulgin 6000 系列插入及拔插件工具 , 适用于针，插座

¥8.7040

详情

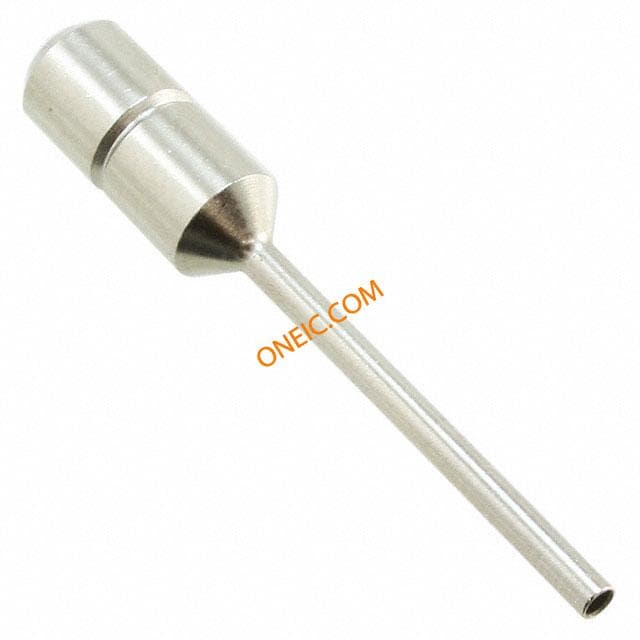

14944/SP

Bulgin

TOOL INSERT/EXTRACT FOR SA3542 Contact removal tool,16&22w,600 series CONTACT REMOVAL TOOL, 16 / 22 WAY Contactremovaltool(for16&22pole) Bulgin 6000 系列插入及拔插件工具 , 适用于针，插座

¥44.3972

详情

PXM6012/22P/CR

Bulgin

CONN HSNG RCPT PNL MNT 22POS PIN Chassis connector,22 way pin contacts Standard Circular Connector FLEX CONCT 22 POLE METAL VERSION CHASSIS CONNECTOR, 22 WAY, PIN Chassisconnector,22polepincontacts Bulgin 6000 系列 22路面板安装直向连接器插座 , 公触点, 推挽式接合

¥88.0600

详情

PXP7012/32P/CR

Bulgin

CONN HSG RCPT PNL MNT 32POS PINS Standard Circular Connector 32Pole male front PanelMnt crimp term CIRCULAR CONN, RECEPTALCE, 32 WAY, PANEL Connector;FrontPanelMnt;32-Pole;Male/Pin;CrimpTerm.;Thermoplastic Bulgin Buccaneer 系列 7000 32路面板安装直向连接器插座 , 公触点, 快速连接接合

¥52.6320

详情

PXP7010/32P/CR/0507

Bulgin

CONN HSG PLUG FLEX 32POS PINS Standard Circular Connector 32 pole Flex Conn male crimp term Connector;Flex;32-P;Male/Pin;CrimpTerm.;5-7mmCableEntry;Thermoplastic

¥44.8800

详情

PXP7010/32P/CR/0911

Bulgin

CONN HSG PLUG FLEX 32POS PINS Standard Circular Connector 32 pole Flex Conn male crimp term CIRCULAR CONNECTOR, PLUG, 32 WAY, CABLE Connector;Flex;32-P;Male/Pin;CrimpTerm.;9-11mmCableEntry;Thermoplastic Bulgin Buccaneer 系列 7000 32路自由悬挂直向连接器插座 , 公触点, 快速连接接合

¥45.3000

详情

PXP6010/16P/CR/0507

Bulgin

CONN HSNG PLUG FLEX 16POS PIN

¥103.3600

详情

PXP6010/22P/CR/0405

Bulgin

CONN HSNG PLUG FLEX 22POS PIN

¥70.0400

详情

PXP6011/22P/CR/0507

Bulgin

CONN HSNG RCPT IN-LINE 22POS PIN

¥71.4000

详情

PXM7011/32P/CR/0709

Bulgin

CONN HSG RCPT FLEX 32POS PINS Standard Circular Connector Metal In-Line 32pos male crimp Connector;In-LineFlex;32-Pole;Male/Pin;CrimpTerm;7-9mmCableEntry;Metal

¥146.8120

详情

PXM7011/32P/CR/1315

Bulgin

CONN HSG RCPT FLEX 32POS PINS Standard Circular Connector Metal In-Line 32pos male crimp Connector;In-LineFlex;32-P;Male/Pin;CrimpTerm.;13-15mmCableEntry;Metal

¥146.8120

详情

PXM7011/32P/CR/1113/SN

Bulgin

CONN HSG RCPT FLEX 32POS PINS Standard Circular Connector Metal In-Line 32pos male crimp w/screen Conn.;In-LineFlex;32-P;Male/Pin;CrimpTerm.;11-13mmCableEntry;Metal;w/Screen

¥152.9320

详情

PXM7010/32P/CR/1113

Bulgin

CONN HSG PLUG FLEX 32POS PINS Standard Circular Connector Metal Flex Conn 32pos male crimp Connector;Flex;32-Pole;Male/Pin;CrimpTerm.;11-13mmCableEntry;Metal

¥189.5840

详情

PXM6011/22P/CR/0507

Bulgin

CONN HSNG RCPT IN-LINE 22POS PIN

¥261.8000

详情

PXM6011/22P/CR/0709

Bulgin

CONN HSNG RCPT IN-LINE 22POS PIN

¥261.8000

详情

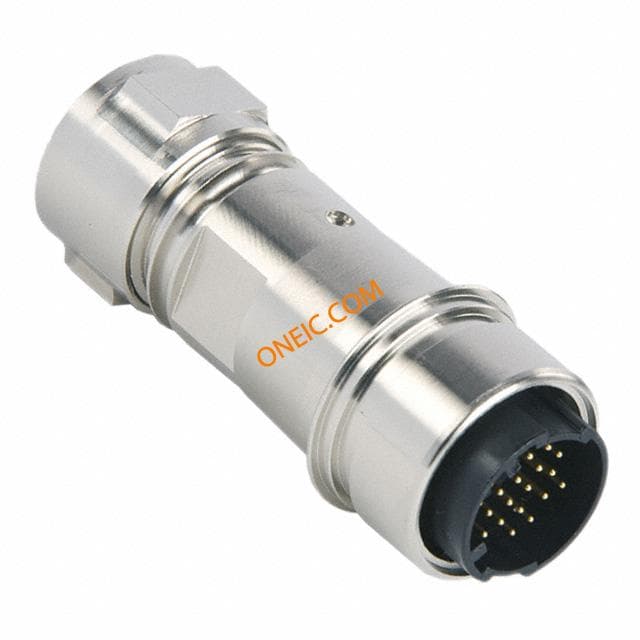

PXM6011/22P/CR/0910

Bulgin

CONN HSNG RCPT IN-LINE 22POS PIN FLEX IN-LINE CONNECTOR, 22 WAY, PIN

¥144.9600

详情

PXM6011/22P/CR/0405/SN

Bulgin

CONN HSNG RCPT IN-LINE 22POS PIN

¥269.6200

详情

PXM6010/16P/CR/0709

Bulgin

CONN HSNG PLUG FLEX 16POS PIN

¥309.4000

详情

15065/SP

Bulgin

TOOL CONT CARRIER REMOVE Hand Tools Contact carrier removal tool EXTRACTION TOOL, FOR 7000 SERIES ContactCarrierRemovalTool;forRemovalofAllContactCarriers Bulgin 7000 系列压接拔取工具

¥12.9200

详情
