点击放大查看
商业参数
| 其他名称 | 708-1737 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 277 V, 600 V | 最大额定电流 | 6 A, 10 A |
| 连接器类型 - 电压输入 | Female | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 20-18 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | In-Line | 壳体材料 | Polycarbonate (PC), Polybutylene Terephthalate (PBT) |
| 端接样式 | Crimp | 触点数 | 10 |
| 位数 | 10 | 外壳材料及表面处理 | Polycarbonate/Polybutylene Terephthalate (PBT) |
产品信息
| 备注 | Contacts Not Provided | 系列 | 7000 |
| 产品子类型 | Receptacles | ||
环境参数
| 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | ||
相关型号
PXP7088/0713
Bulgin
CABLE GLAND PACK 7 - 13MM Standard Circular Connector CblGlandPack 7 &13mm gland, cage and nut CABLE GLAND PACK, FOR 7 TO 13MM CABLE CableGlandPack;for7-13mmCableSizes;IncludesGland,Cage,&Nut Gland pack for cable 7...13 mm, PXP7088/0713, Bulgin Bulgin 黑色，灰色，白色，黄色 IP66，IP68，IP69K 热塑塑料 电缆密封接头套件 , 7 → 13mm 电缆直径, 包含笼，固定头，压紧螺母
PXP7082
Bulgin
CAP SEAL FOR PXP7011 AND PXP7012 Standard Circular Connector Seal Cap for PXP7011 In-Line & PXP7012 SEALING CAP, FOR PXP7011 PLUG, PLASTIC SealingCap:FitsPXP7011(In-Line)andPXP7012(PanelMnt)Connectors Cap for plastic cable plug, PXP7082, Bulgin Bulgin PXP 7000 系列 插座 IP68，IP69K 防尘盖
SA3544/P
Bulgin
CONT PIN CRIMP 18-20AWG GLD 1=10 6000 Series Size 8 10A Male Circular Connector Contact, Crimp,Wire size 20 to 18AWG Standard Circular Connector CRIMP PIN 8 POLE 1 = 1 PKT of 10/pcs CRIMP CONTACT, PIN, FOR 8 WAY Pincrimpcontact(for8pole) Crimp contact (10 Pack) Male 10 A, SA3544/P, Bulgin Bulgin 6000 系列 10A 公 压接端接 圆形 连接器 触芯, 20 → 18 AWG 线规格
PXP7010/10S/CR/0911
Bulgin
CONN HSG PLUG FLEX 10POS SKTS Standard Circular Connector 10 pole Flex Conn female crimp term CIRCULAR CONNECTOR, PLUG, 10 WAY, CABLE Connector;Flex;10-P;Fem./Socket;CrimpTerm.;9-11mmCableEntry;Thermoplastic Bulgin Buccaneer 系列 7000 10路 自由悬挂 直向 连接器 插头 , 母触点, 快速连接接合
PXP7010/10S/CR/0507
Bulgin
CONN PLUG FLEX 10POS FOR SKTS Standard Circular Connector 10 pole Flex Conn female crimp term Connector;Flex;10-P;Fem./Socket;CrimpTerm.;5-7mmCableEntry;Thermoplastic
PXP7010/10S/CR/0709
Bulgin
CONN PLUG FLEX 10POS FOR SKTS Standard Circular Connector 10 pole Flex Conn female crimp term Connector;Flex;10-P;Fem./Socket;CrimpTerm.;7-9mmCableEntry;Thermoplastic
PXP7010/10S/CR/1113
Bulgin
CONN PLUG FLEX 10POS FOR SKTS Standard Circular Connector 10 pole Flex Conn female crimp term Connector;Flex;10-P;Fem./Socket;CrimpTerm.;11-13mmCableEntry;Thermoplastic

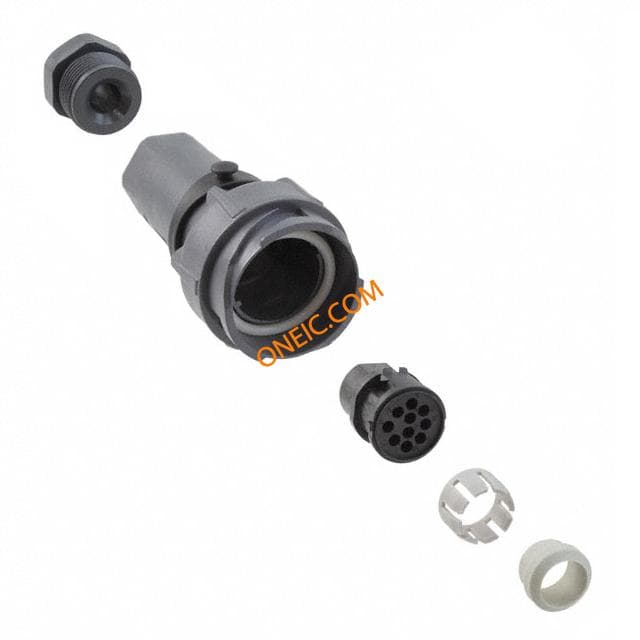

PXP7010/10S/CR/1315
Bulgin
CONN PLUG FLEX 10POS FOR SKTS Standard Circular Connector 10 pole Flex Conn female crimp term Connector;Flex;10-P;Fem./Socket;CrimpTerm.;13-15mmCableEntry;Thermoplastic
