商业参数
| 其他名称 | 708-1726 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 连接器类型 - 电压输入 | Female | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Screw |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Nickel | 紧固类型 | Bayonet Lock |
| 安装样式 | In-Line | 触头材料 | Brass |
| 壳体材料 | Polycarbonate (PC), Polybutylene Terephthalate (PBT) | 端接样式 | Screw |
| 第一触头极性 | Pin (Male) | 触点数 | 6 |
| 位数 | 6 | 外壳材料及表面处理 | Polycarbonate/Polybutylene Terephthalate (PBT) |
产品信息
| 系列 | 7000 | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 120°C |
相关型号
PXP7010/06S/ST/0709
Bulgin
CONN PLUG FLEX 6POS W/SKTS Standard Circular Connector 6 pole Flex Conn female screw term CIRCULAR CONNECTOR, PLUG, 6 WAY, CABLE Connector;Flex;6-P;Fem./Socket;ScrewTerm.;7-9mmCableEntry;Thermoplastic Cable Receptacle 6, PXP7010/06S/ST/0709, Bulgin Bulgin Buccaneer 系列 7000 6路 自由悬挂 直向 连接器 插头 , 母触点, 快速连接接合
PXP7010/06S/ST/0507
Bulgin
CONN PLUG FLEX 6POS W/SKTS Standard Circular Connector 6 pole Flex Conn female screw term Connector;Flex;6-P;Fem./Socket;ScrewTerm.;5-7mmCableEntry;Thermoplastic

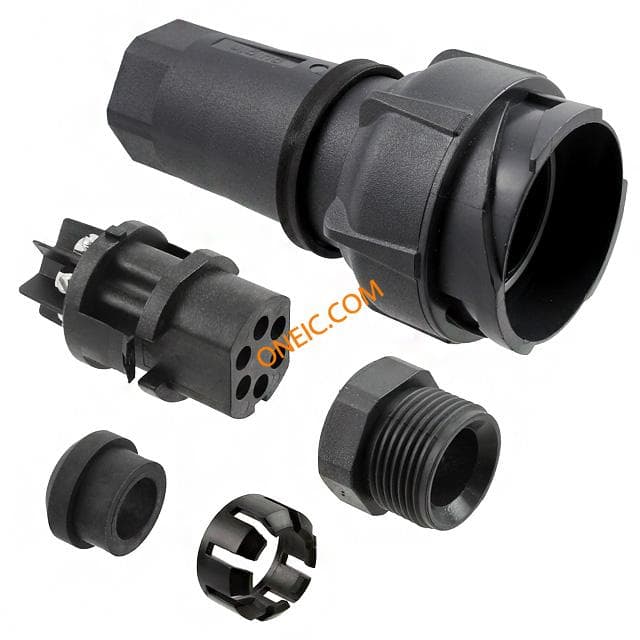

PXP7010/06S/ST/0911
Bulgin
CONN PLUG FLEX 6POS W/SKTS Standard Circular Connector 6 pole Flex Conn female screw term Connector;Flex;6-P;Fem./Socket;ScrewTerm.;9-11mmCableEntry;Thermoplastic

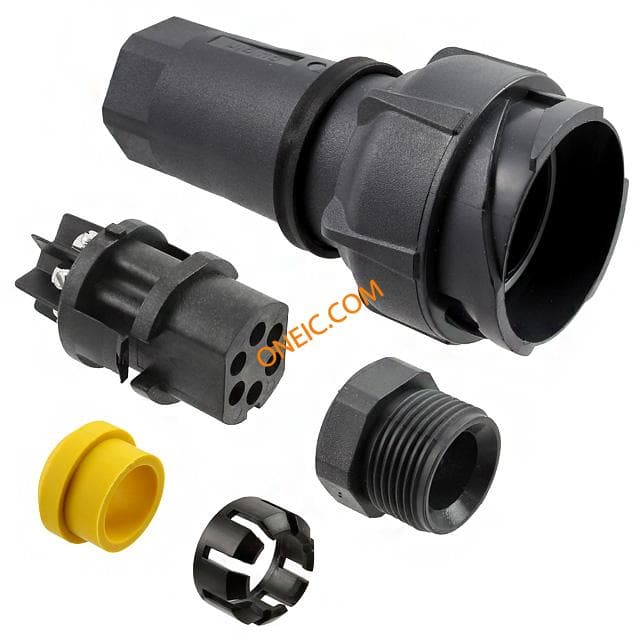

PXP7010/06S/ST/1113
Bulgin
CONN PLUG FLEX 6POS W/SKTS Standard Circular Connector 6 pole Flex Conn female screw term Connector;Flex;6-P;Fem./Socket;ScrewTerm.;11-13mmCableEntry;Thermoplastic

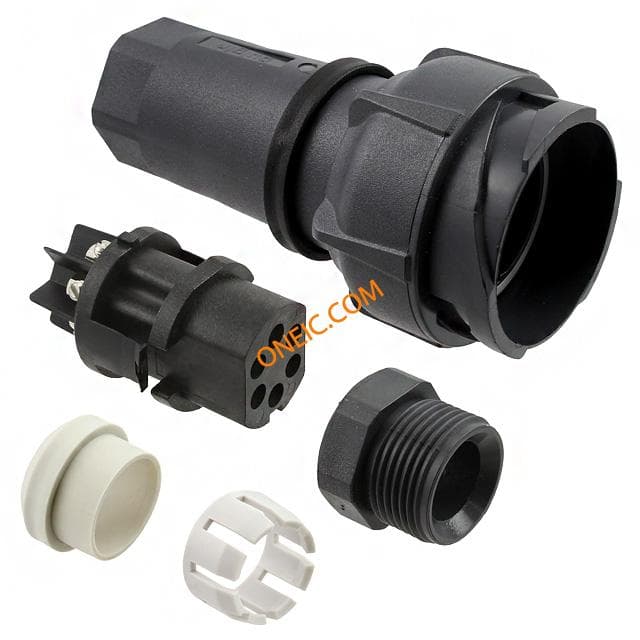

PXP7010/06S/ST/1315
Bulgin
CONN PLUG FLEX 6POS W/SKTS Standard Circular Connector 6 pole Flex Conn female screw term Connector;Flex;6-P;Fem./Socket;ScrewTerm.;13-15mmCableEntry;Thermoplastic
PXP7088/0507
Bulgin
CABLE GLAND PACK 5 - 7MM Standard Circular Connector CblGlandPack 5 & 7mm gland, cage and nut CABLE GLAND PACK, FOR 5 TO 7MM CABLE CableGlandPack;for5-7mmCableSizes;IncludesGland,Cage,&Nut Gland pack for cable 5...7 mm, PXP7088/0507, Bulgin Bulgin 黑色，灰色，白色，黄色 IP66，IP68，IP69K 热塑塑料 电缆密封接头套件 , 5 → 7mm 电缆直径, 包含笼，固定头，压紧螺母
PXP7082
Bulgin
CAP SEAL FOR PXP7011 AND PXP7012 Standard Circular Connector Seal Cap for PXP7011 In-Line & PXP7012 SEALING CAP, FOR PXP7011 PLUG, PLASTIC SealingCap:FitsPXP7011(In-Line)andPXP7012(PanelMnt)Connectors Cap for plastic cable plug, PXP7082, Bulgin Bulgin PXP 7000 系列 插座 IP68，IP69K 防尘盖
