PXP7010/03S/ST/1315
| 制造商 | |

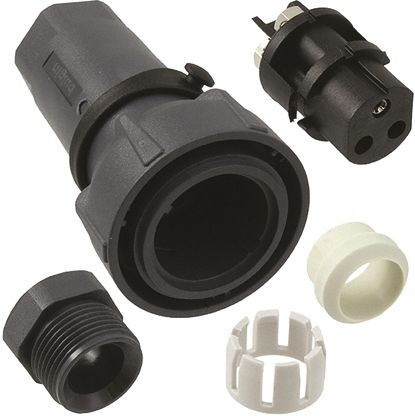

| 描述 | CONN PLUG FLEX 3POS W/SKTS Standard Circular Connector 3 pole Flex Conn female screw term CIRCULAR CONNECTOR, PLUG, 3 WAY, CABLE Connector;Flex;3-P;Fem./Socket;ScrewTerm.;13-15mmCableEntry;Thermoplastic Cable Receptacle 3, PXP7010/03S/ST/1315, Bulgin Bulgin Buccaneer 系列 7000 3路 自由悬挂 直向 连接器 插头 , 母触点, 快速连接接合 |
| 分类 |
商业参数
| 其他名称 | 708-1639 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 25A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 重量 | 0.07 | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Wire |
| 插入角度 | :- | 本体材料 | :PBT (Polybutylene Terephthalate), PC (Polycarbonate) |
| 触头材料 | Brass | 壳体材料 | Polycarbonate (PC), Polybutylene Terephthalate (PBT) |
| 端接样式 | Screw | 第一触头极性 | Socket (Female) |
| 配接方向 | Quick Lock | 触点数 | 3 |
| 接触件端接 | :Screw | 位数 | 3 |
| 外壳尺寸-插件 | :(Not Available) | 外壳材料及表面处理 | Polycarbonate/Polybutylene Terephthalate (PBT) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 连接器性别 | :Plug | 系列 | 7000 |
| 产品子类型 | Connectors | ||
环境参数
| 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 120°C |
