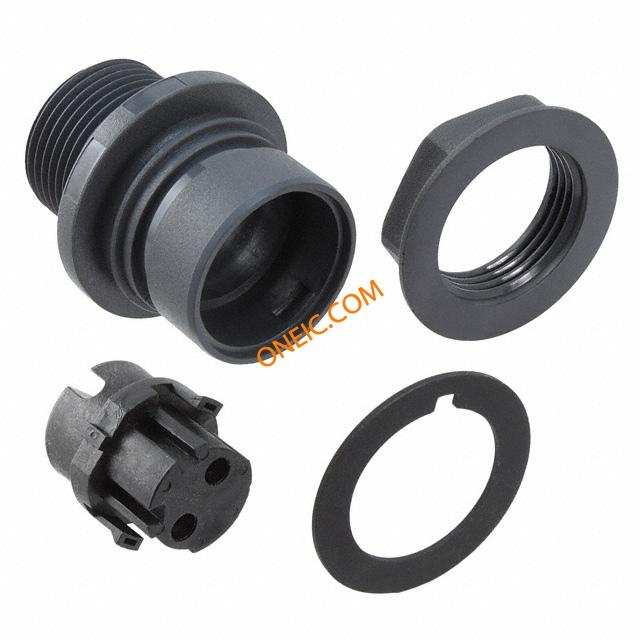

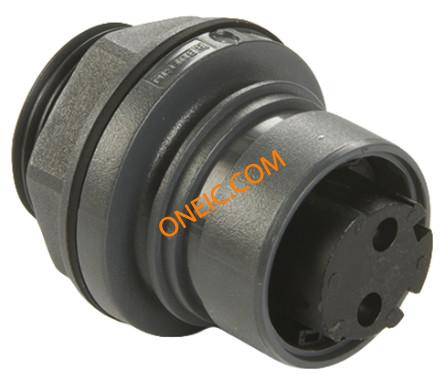

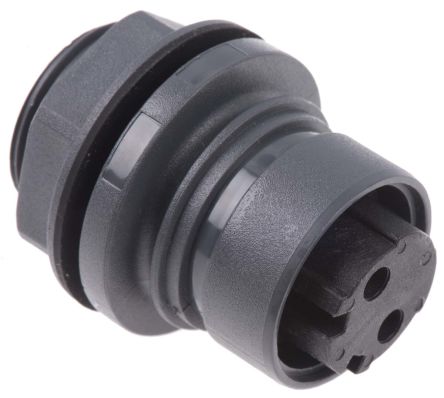

PXP6012/02S/ST
| 制造商 | |
| 描述 | CONN RCPT PNL MNT 2POS SKTS Chassis connector,2w,socket contacts Standard Circular Connector FLEX CONCT 2 POLE THERMO PLASTIC CHASSIS CONNECTOR, 2 WAY, SKT Chassisconnector,2polesocketcontacts Connector: circular; socket; female; PIN:2; 6000; nickel plated Panel-mount connector 2, PXP6012/02S/ST, Bulgin Bulgin 6000 系列 2路 面板安装 直向 连接器 插头 , 母触点, 推挽式接合 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 工作电压 | :277V |
| 最大额定电流 | 16A | ||
机械参数
| 重量 | 0.07328 | 包装方式 | Bulk |
| 外壳尺寸 | 32mm | 方向 | Keyed |
| 端接方式 | Screw | 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Nickel |
| 紧固类型 | Push-Twist | 安装样式 | for panel mounting, rear side nut |
| 连接器用途 | Push-Pull | 插入角度 | :- |
| 锁定特性 | external bayonet, push-pull | 本体材料 | :PBT (Polybutylene Terephthalate), PC (Polycarbonate) |
| 触头材料 | Brass | 壳体材料 | PC/PBT |
| 包装数量 | 25 | 连接器 - 电缆 | socket |
| 第一触头极性 | Female | 触点数 | 2 |
| 接触件端接 | :Screw | 位数 | 2 |
| 外壳尺寸-插件 | :- | 最大电缆长度 | 1.5mm2 |
| 外壳材料及表面处理 | Polycarbonate/Polybutylene Terephthalate (PBT) | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | PBT, polycarbonate | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 25 | 连接器性别 | Male |
| 系列 | 6000 | 适配器系列 | 6000 |
| 单元数量 | 1 | ||
环境参数
| 密封等级 | IP66, IP68, IP69K | 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 120°C | ||
