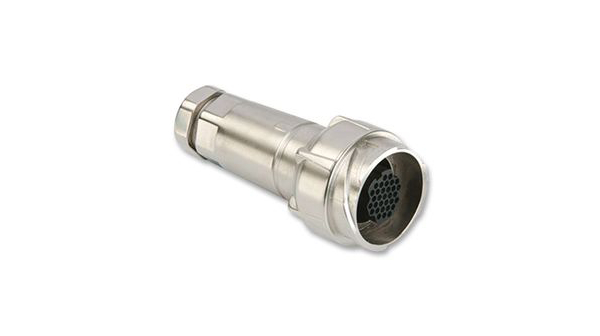

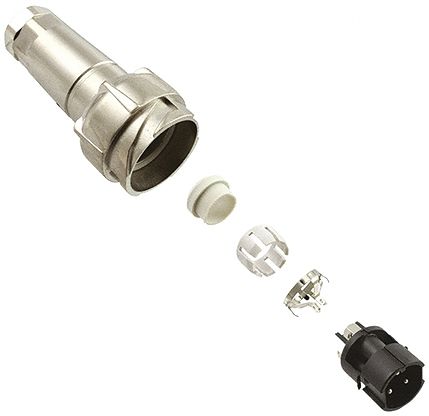

PXM7011/03P/ST/1315/SN
| 制造商 | |
| 描述 | CONN RCPT FLEX 3POS W/PINS Standard Circular Connector Metal In-Line 3pos male screw w/screen CIRCULAR CONNECTOR, PLUG, 3 WAY, CABLE Conn.;In-LineFlex;3-P;Fem/Socket;ScrewTerm.;13-15mmCableEntry;Metal;w/Screen Cable Plug 3, PXM7011/03P/ST/1315/SN, Bulgin Bulgin Buccaneer 系列 7000 3路 自由悬挂 直向 连接器 插座 , 公触点, 快速连接接合 |
| 分类 |
商业参数
| 其他名称 | 708-1813 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600V | 最大额定电流 | 25A |
| 连接器类型 - 电压输入 | Female | ||
机械参数
| 重量 | 0.237 | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Nickel | 紧固类型 | Bayonet Lock |
| 安装样式 | In-Line | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | :- | 本体材料 | :Zinc |
| 触头材料 | Brass | 端接样式 | Screw |
| 第一触头极性 | Pin (Male) | 触点数 | 3 |
| 接触件端接 | :Screw | 位数 | 3 |
| 外壳尺寸-插件 | :(Not Available) | 外壳材料及表面处理 | Zinc Alloy, Nickel Plated |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :15mm |
产品信息
| 连接器性别 | :Plug | 系列 | 7000 |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 120°C |
