点击放大查看

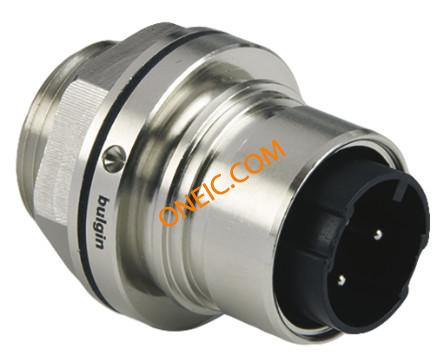

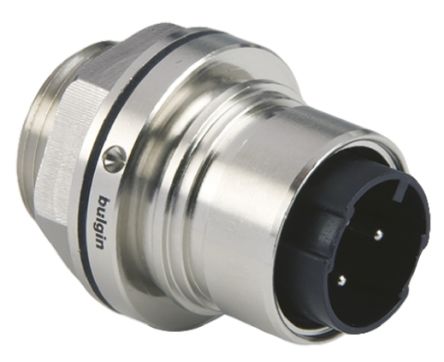

PXM6012/03P/ST
| 制造商 | |
| 描述 | CONN RCPT PNL MNT 3POS PINS Chassis connector,3 way pin contacts Standard Circular Connector FLEX CONCT 3 POLE METAL VERSION CHASSIS CONNECTOR, 3 WAY, PIN Chassisconnector,3polepincontacts Panel-mount connector 2+PE, PXM6012/03P/ST, Bulgin Bulgin 6000 系列 3路 面板安装 直向 连接器 插座 , 公触点, 推挽式接合 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 10 |
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
电气参数
| 额定电压 | 277VAC/DC | 工作电压 | :277V |
| 最大额定电流 | 12A | ||
机械参数
| 重量 | 0.07502 | 包装方式 | Bulk |
| 外壳尺寸 | 32mm | 方向 | Keyed |
| 端接方式 | Screw | 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Nickel |
| 紧固类型 | Push-Twist | 连接器用途 | Push-Pull |
| 插入角度 | :- | 本体材料 | :Brass |
| 触头材料 | Brass | 壳体材料 | Brass |
| 第一触头极性 | Male | 触点数 | 3 |
| 接触件端接 | :Screw | 位数 | 3 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Brass, Nickel Plated |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 连接器性别 | Female | 系列 | 6000 |
| 产品特性 | Shielded | ||
环境参数
| 密封等级 | IP66, IP68, IP69K | 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 120°C | ||
