点击放大查看

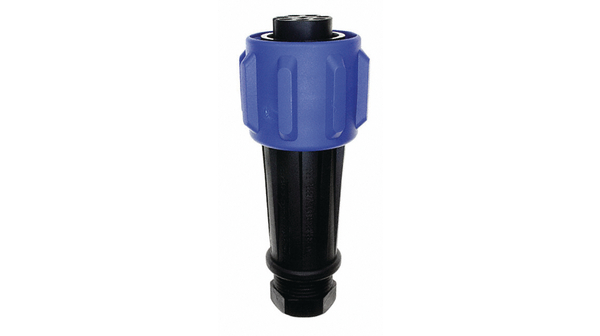

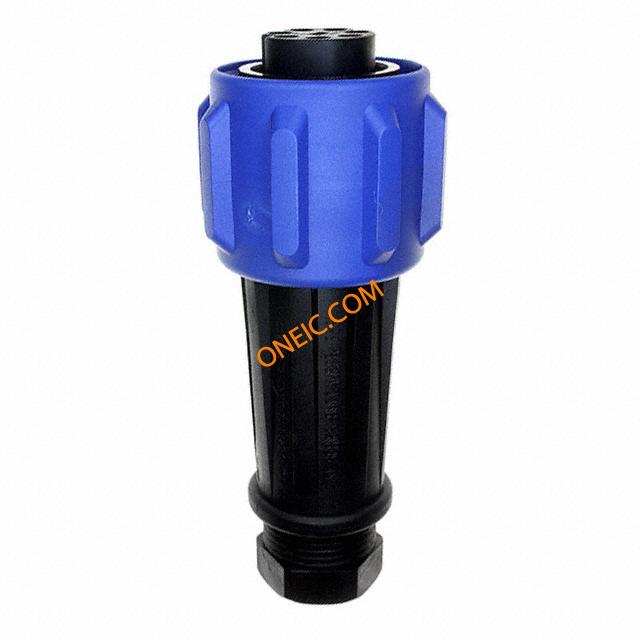

PX0911/07/S
| 制造商 | |
| 描述 | Standard Circular Connector 7 POLE FLEX SOCKET CONN PLUG 7POS CABLE SKT Conn Buccaneer SKT 7 POS Screw ST Cable Mount 7 Terminal 1 Port CIRCULAR CONNECTOR, RECEPTACLE, 7POS, CABLE CONN PLUG 7POS INLINE SKT Connector;Socket;7;127mm;50mm(Min.);13to15mm;32A;600V;-40degC Connector: circular; plug; female; PIN:7; Buccaneer 900; for cable Cable socket Buccaneer 900, 7-pole 7, PX0911/07/S, Bulgin |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 430VAC/DC | 最大额定电流 | 32A |
机械参数
| 重量 | 0.159 | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 电缆直径 | 13...15mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | for cable | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | brass |
| 包装数量 | 10 | 连接器 - 电缆 | plug |
| 第一触头极性 | Socket (Female) | 触点数 | :7 |
| 位数 | 7 | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | 2.5...4mm2 | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | polyamide | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 10 | 连接器性别 | :Receptacle |
| 系列 | Buccaneer 900 | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 900 | 单元数量 | 1 |
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
PX0990
Bulgin
Standard Circular Connector SEALING CAP FOR PX0911/PXA911 SEALING CAP FOR PX0911 & PXA911 Heavy duty sealing cap for PX0911 and PXA911 Connector Accessories Sealing Cap HeavydutysealingcapforPX0911andPXA911 Bulgin 连接器

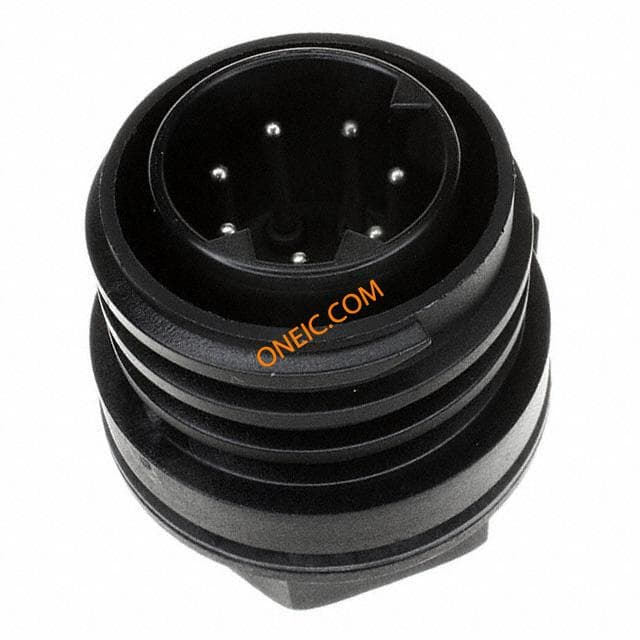

PX0931/07/P
