点击放大查看

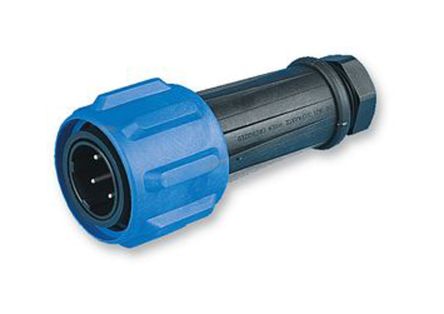

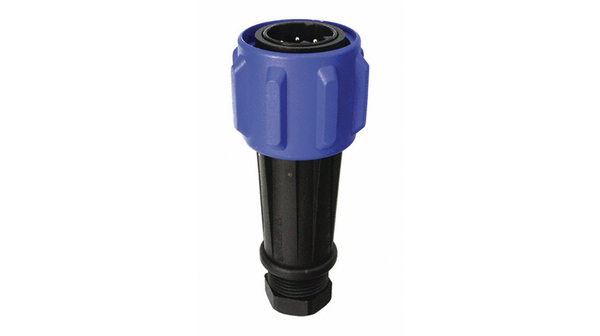

PX0911/07/P
| 制造商 | |
| 描述 | Standard Circular Connector 7 POLE FLEX PLUG CONN PLUG 7POS CABLE PIN Buccaneer 900 Series Flex Body Plug (7 pos) Standard Cable 7-13mm Screw Term Conn Buccaneer PL 7 POS Screw ST Cable Mount 7 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 7POS, CABLE CONN PLUG 7POS INLINE PIN Buccaneer900SeriesFlexBodyPlug(7pos)StandardCable7-13mmScrewTerm Connector: circular; plug; male; PIN:7; Buccaneer 900; for cable Cable plug Buccaneer 900, 7-pole 7, PX0911/07/P, Bulgin Bulgin PX09 系列 900 7路 电缆安装 直向 连接器 插头 , 公触点, 快速连接接合 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | ULRecognized/CSA/VDE | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 430VAC/DC | 最大额定电流 | 32A |
机械参数
| 重量 | 0.15 | 包装方式 | Bulk |
| 导线线规 | 13-10 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 触头类型 | Pin | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 13-15mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | for cable |
| 外壳材料（壳体） | Plastic | 插入角度 | :- |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | brass | 壳体材料 | Polyamide |
| 包装数量 | 10 | 主要材料 | Sealed |
| 连接器 - 电缆 | plug | 端接样式 | Screw |
| 第一触头极性 | Pin (Male) | 触点数 | 7 |
| 位数 | 7 | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - mm² | 2.5...4mm2 | 触点材料 - 镀层 | nickel plated |
| 外壳与棱镜材料 | polyamide | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 10 | 类型 | CablePlug |
| 连接器性别 | :Plug | 系列 | Buccaneer 900 |
| 制造商全称 | 900Series | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 900 | 单元数量 | 1 |
| 应用细节 | Commercial | ||
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
PX0921/07/S
Bulgin
Standard Circular Connector 7 POLE IN-LINE SKT CONN RCPT 7POS INLINE SKT Conn Buccaneer SKT 7 POS Screw ST Cable Mount 7 Terminal 1 Port CableConnector,In-Line;7;;Socket;In-LineFlex;Screw; Connector: circular; plug; female; PIN:7; Buccaneer 900; for cable Coupling socket Buccaneer 900, 7-pole 7, PX0921/07/S, Bulgin Bulgin PX09 系列 900 7路 电缆安装 直向 连接器 插座 , 母触点, 快速连接接合
PX0990
Bulgin
Standard Circular Connector SEALING CAP FOR PX0911/PXA911 SEALING CAP FOR PX0911 & PXA911 Heavy duty sealing cap for PX0911 and PXA911 Connector Accessories Sealing Cap HeavydutysealingcapforPX0911andPXA911 Bulgin 连接器
PXA921/07/S
Bulgin
Standard Circular Connector 7 POLE IN-LINE SKT CONN RCPT 7POS INLINE SKT 7 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, IN-LINE, 7WAY CableConnector,In-Line;7;Socket;6to8mmDia;In-LineFlex;Screw;32A Connector: circular; plug; female; PIN:7; Buccaneer 900; for cable Bulgin Buccaneer 系列 7路 电缆安装 直向 连接器 , 母触点
PX0941/07/S
Bulgin
Standard Circular Connector 7P PNL MOUNT SKT CONN RCPT 7POS PNL MNT SKT 7 Pole Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 7 POS Screw Panel Mount 7 Terminal 1 Port SOCKET, FLANGE, 7WAY Connector;Socket;7;ScrewTerminal;32A;430VAC/VDC;10Milliohms(Max.) Connector: circular; socket; female; PIN:7; Buccaneer 900; IP68 Appliance socket with flange, 7-pole 7, PX0941/07/S, Bulgin Bulgin Buccaneer 系列 7路 面板安装 连接器 , 母触点
PX0960
Bulgin
Standard Circular Connector SEALING CAP SEALING CAP W/PX0911 AND PXA911 Bulgin 900 buccaneer sealing cap type1 Connector Accessories Sealing Cap CAP, SEAL, PX0911 Accessory,Buccaneer;PX0911andPXA911;IP68(Sealing);900Series Protection cover; threaded joint, external thread Protective cap IP 68, PX0960, Bulgin Bulgin Buccaneer 900 系列 IP68 防尘盖

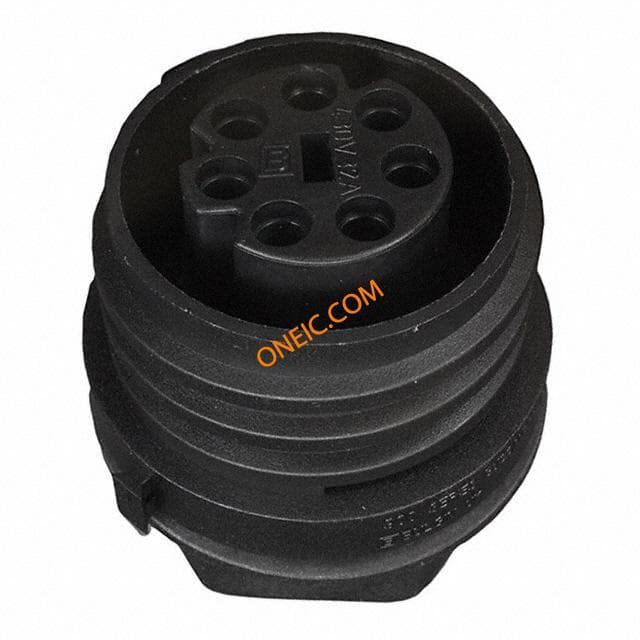

PX0931/07/S
