点击放大查看

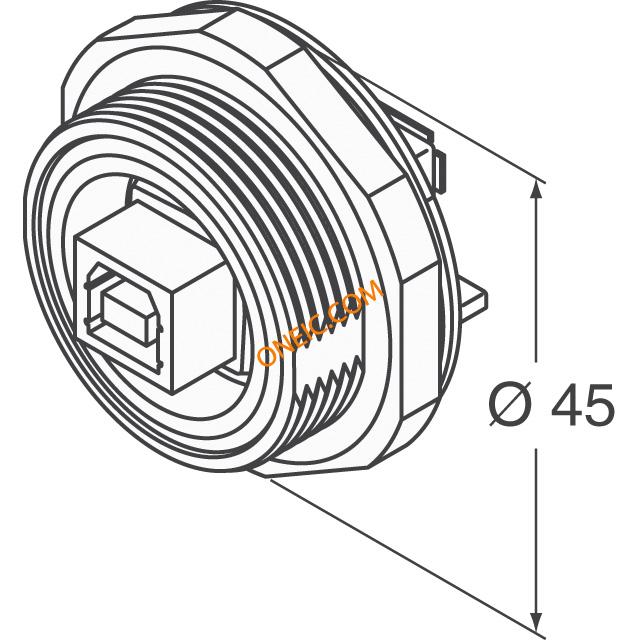

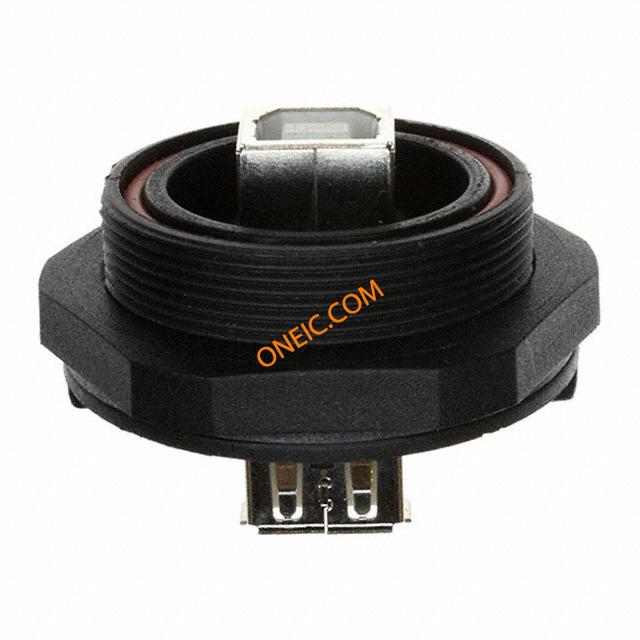

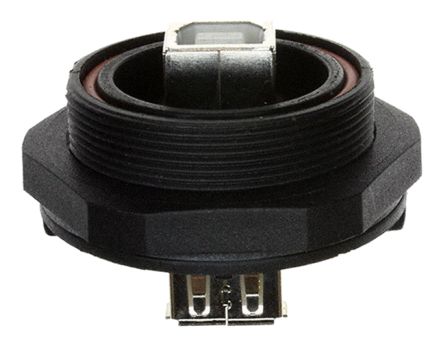

PX0848/B
| 制造商 | Bulgin |
| 描述 | USB Connectors PANEL MT USB B TYPE CONN RCPT IP68 USB B REAR MOUNT USB BUCCANEER REAR PANEL MOUNT; USB B TYPE IP68; A AT REAR OF PANEL Conn USB F 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONNECTOR, USB B, RECEPTACLE, PANEL USBBUCCANEERREARPANELMOUNT,USBBTYPEIP68,AATREAROFPANEL Bulgin USB 系列 PX0848 1 端口 直 公 USB 2.0, 面板安装, 30 V 交流, 1A |
| 分类 |
商业参数
| 产品 | USB Type A / Type B Connectors | 产品类别 | USB Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :30V | 供电电压 | USB |
| 接触电阻 | :30mohm | 最大额定电流 | 1 A |
机械参数
| 颜色 | Black | 重量 | 0.024 |
| 安装类型 | Straight | 连接器类型 | USB Type B Receptacle on front, USB Type A Receptacle on rear |
| 接触镀层 | Gold | 安装样式 | Panel |
| 触头材料 | Copper Alloy | 端接样式 | Solder |
| 触点数 | 4 | 接触件端接 | :Panel Mount |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 连接器性别 | Female | 系列 | :Buccaneer |
| 产品特性 | Sealing caps to maintain IP68 rating when connectors are not in use | 端口数 | 2 |
| 转换端（适配器端） | USB - A, Receptacle | 转换自（适配器端） | USB - B, Receptacle |
环境参数
| 插拔次数 | :1000 | NEMA 机架尺寸 | :IP68 |
| 工作温度 | 0 C to + 70 C | ||
