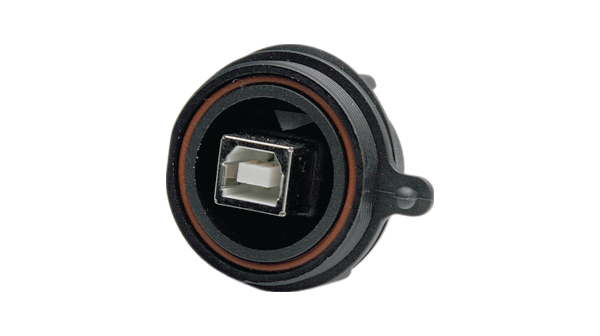

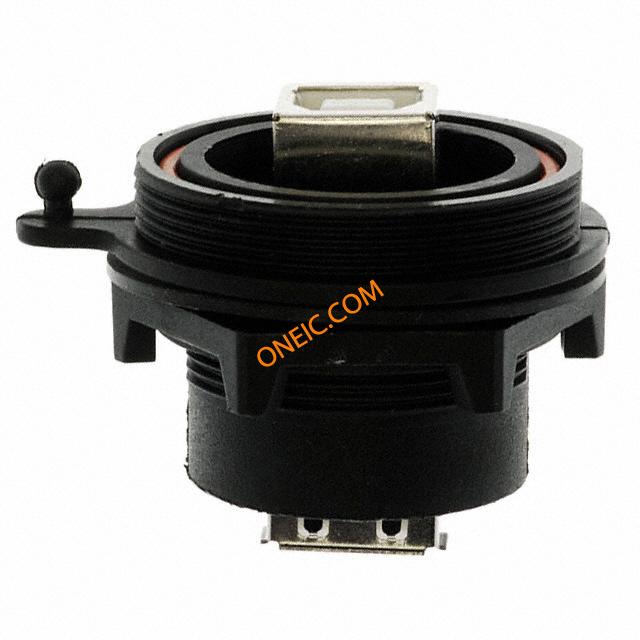

PX0842/B
| 制造商 | Bulgin |
| 描述 | USB Connectors PANEL MT USB B TYPE CONN RCPT IP68 USB B PANEL MOUNT IP68 B type USB panel mount socket Conn USB F 4 POS Crimp ST Panel Mount 4 Terminal 1 Port SEALED USB, TYPE B TO A, PANEL MOUNT Connector,PanelMounted,BType Adapter; USB A socket, USB B socket (sealed); USB Buccaneer Appliance plug, USB B to USB A 4, PX0842/B, Bulgin Bulgin Buccaneer 系列 直 母 B 型 USB 2.0, 面板安装, 30 V 交流, 1A |
| 分类 |
商业参数
| 产品 | USB Type A / Type B Connectors | 产品类别 | USB Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :EN 60529, IP68, (when mated) |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 30 V ac | 供电电压 | USB |
| 工作电压 | :30V | 最大额定电流 | 1 A |
机械参数

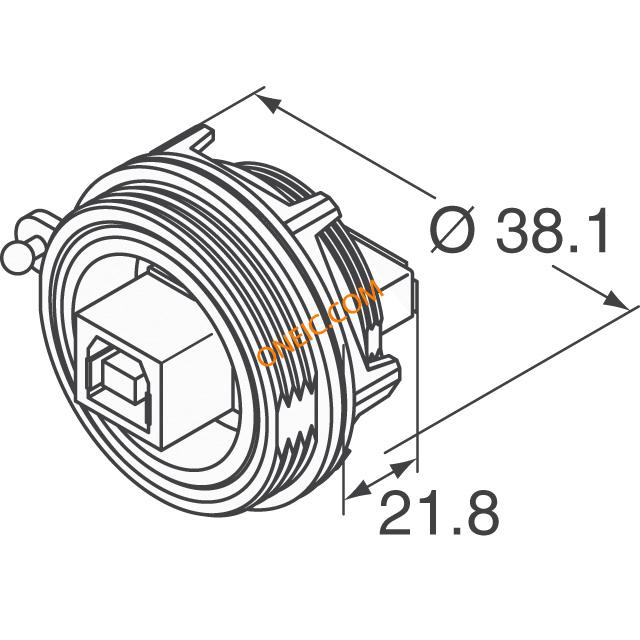

| 颜色 | Black | 深度 | :12.7mm |
| 重量 | 0.02 | 端接方式 | Screw Down |

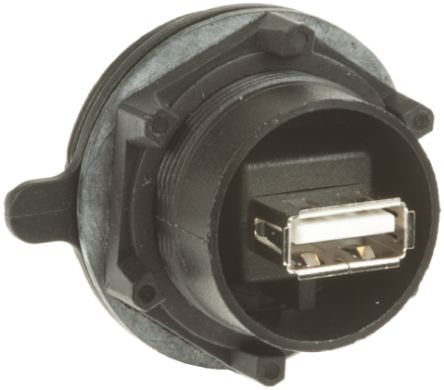

| 安装类型 | Straight | 连接器类型 | USB Type B Receptacle on front, USB Type A Receptacle on rear |
| 接触镀层 | Gold | 安装样式 | Panel |
| 壳体镀层 | :Nickel | 锁定特性 | external thread |
| 触头材料 | Copper Alloy | 包装数量 | 30 |
| 端接样式 | Solder | 触点数 | 4 |
| 接触件端接 | :Panel Mount | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 30 | USB | 2.0 |
| 连接器性别 | Female | 系列 | :Buccaneer |
| 产品特性 | Sealing caps to maintain IP68 rating when connectors are not in use | 适配器系列 | USB Buccaneer |
| 端口数 | 2 | 单元数量 | 1 |
| 其他规格 | adapter | 转换端（适配器端） | USB - A, Receptacle |
| 转换自（适配器端） | USB - B, Receptacle | ||
环境参数
| 插拔次数 | :1000 | 防护等级 | IP68 |
| 工作温度 | 0 C to + 70 C | ||
