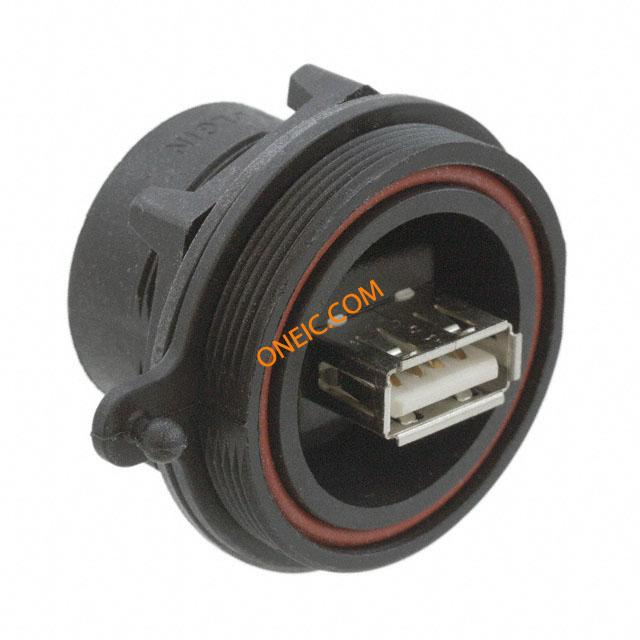

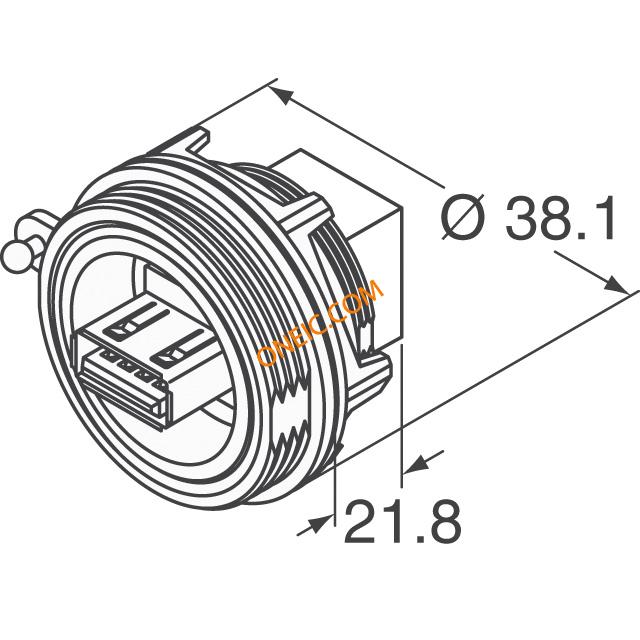

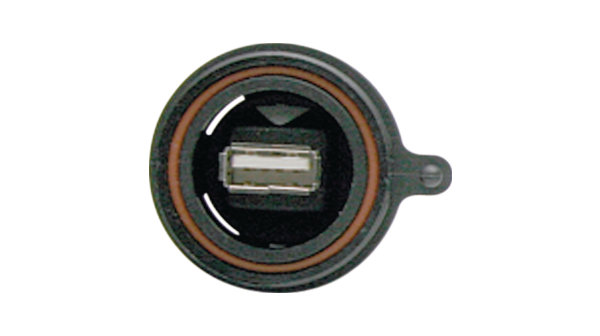

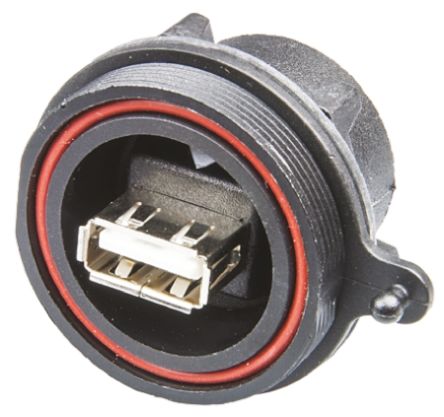

PX0842/A
| 制造商 | Bulgin |
| 描述 | USB Connectors PANEL MOUNT A TYPE CONN RCPT IP68 USB A PANEL MOUNT IP68 A type USB panel mount socket Conn USB F 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONNECTOR, USB, TYPE A, PANEL MOUNT Connector,PanelMounted,AType Adapter; USB B socket, USB A socket (sealed); USB Buccaneer Appliance plug, USB A to USB B 4, PX0842/A, Bulgin Bulgin Buccaneer 系列 1 端口 A 型 USB 2.0 直 插座, 面板安装, 30 V 交流, 1A |
| 分类 |
商业参数
| 产品 | USB Type A / Type B Connectors | 产品类别 | USB Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :EN 60529, IP68, (when mated) |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 30 VAC | 极数 | :5 |
| 供电电压 | USB | 工作电压 | :30V |
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Black | 重量 | 0.02 |
| 端接方式 | Screw Down | 安装类型 | Straight |
| 连接器类型 | USB Type A Receptacle on front, USB Type B Receptacle on rear | 接触镀层 | Gold |
| 安装样式 | Panel | 壳体镀层 | :Nickel |
| 锁定特性 | external thread | 触头材料 | Copper Alloy |
| 包装数量 | 50 | 端接样式 | Solder |
| 触点数 | :4 | 接触件端接 | :- |
| 第一连接器安装类型 | :Panel | ||
产品信息
| SPG | 50 | USB | 2.0 |
| 连接器性别 | Female | 系列 | :Buccaneer |
| 产品特性 | Sealing caps to maintain IP68 rating when connectors are not in use | 适配器系列 | USB Buccaneer |
| 端口数 | 1 | 单元数量 | 1 |
| 其他规格 | adapter | 转换端（适配器端） | USB - B, Receptacle |
| 转换自（适配器端） | USB - A, Receptacle | ||
环境参数
| 插拔次数 | :1000 | NEMA 机架尺寸 | :IP68 |
| 防护等级 | IP68 | 工作温度 | 0 C to + 70 C |
文档与媒体
相关型号
PX0880/1
Bulgin
USB Connectors BLUETOOTH ADAPTER ADAPTER BLUETOOTH USB DONGL IP68 Connector Accessories IP68 Rated USB and Bluetooth Adapter
PX0852
Bulgin
USB Connectors USB FLASH DRIVE CVR COVER FOR USB FLASHDRIVE SEALED IP68 USB FLASH DRIVE COVER Connector Accessories USB Flash Drive Cover COVER, USB FLASH DRIVE IP68USBFLASHDRIVECOVER Protective cap IP 68 for memory sticks, PX0852, Bulgin Bulgin Buccaneer 系列 IP64 USB D防尘盖

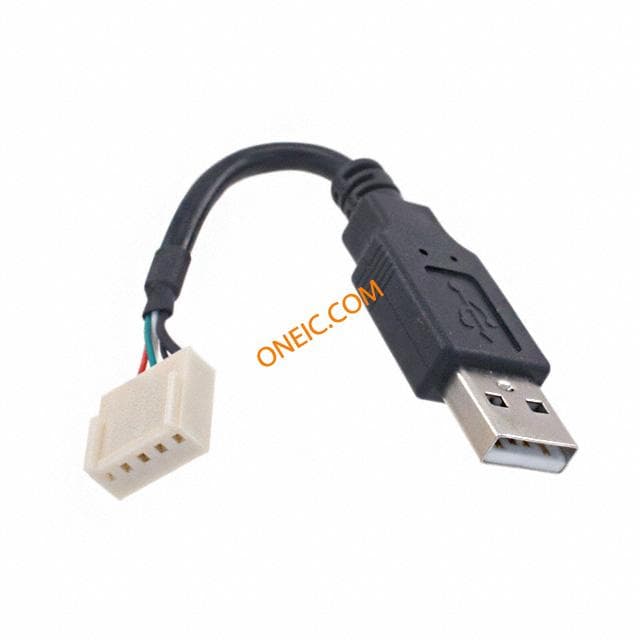

14193
