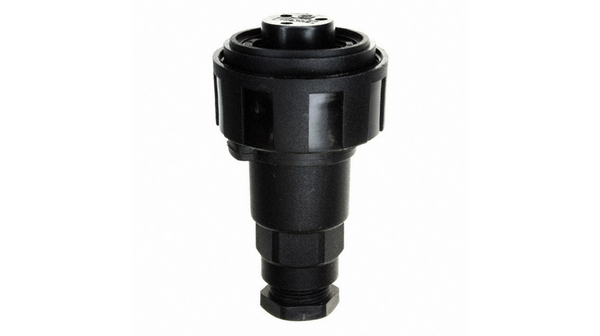

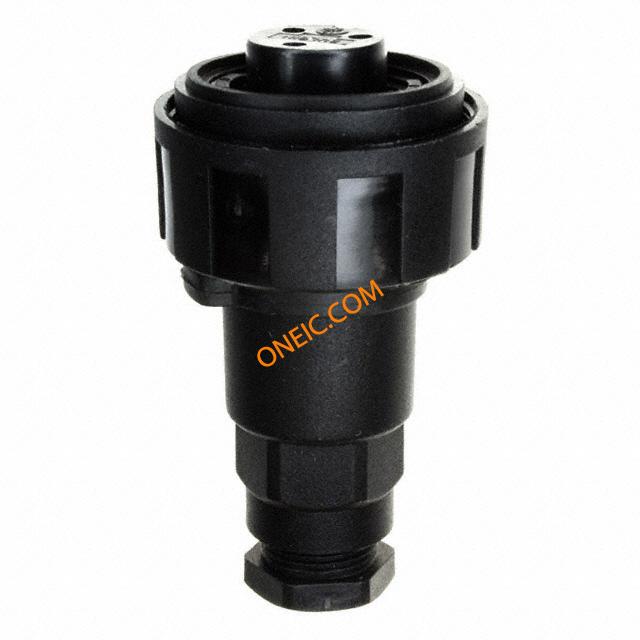

PX0731/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 3 POLE FLEX SOCKET CONN PLUG 3POS CABLE SKT 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Screw ST Cable Mount 3 Terminal 1 Port CIRCULAR, RECEPTACLE, 3 WAY, CABLE CONN PLUG 3POS INLINE SKT Connector,StandardBuccaneer;Socket;3;69.0mm;38.1mm;3.5to9mm;10A Connector: circular; plug; female; PIN:3; Buccaneer Standard; IP68 Cable socket, 3-pin 3, PX0731/S, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 插座 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 接触电阻 | :10mohm |
| 最大额定电流 | 12A | ||
机械参数
| 长度 | :69mm | 重量 | 0.036 |
| 包装方式 | Bulk | 导线线规 | 12 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 触头类型 | Socket |
| 基体材料 | polyamide | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 6-8mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 插入角度 | :- |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 触头材料 | Brass | 壳体材料 | GlassFilledPolyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 连接器 - 电缆 | plug | 端接样式 | Screw |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 外径 | :38.1mm | 配接方向 | Threaded |
| 触点数 | 3 | 接触件端接 | :Screw |
| 介电材料 | Polyamide | 位数 | 3 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8mm |
产品信息
| SPG | 25 | 类型 | CableSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer Standard | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
PX0730/P
Bulgin
Standard Circular Connector 3 POLE CHAS MT PLUG CONN RCPT 3POS PNL MNT PIN 3 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 3 POS Screw ST Panel Mount 3 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 3 WAY, PANEL Connector;Pin;3;12AWG;Screw;10A;250V;10Milliohms(Max.);Panel Connector: circular; socket; male; PIN:3; Buccaneer Standard; IP68 Panel-mount male receptacle, 3-pin 3, PX0730/P, Bulgin Bulgin Buccaneer 系列 3路 面板安装 直向 连接器 插头

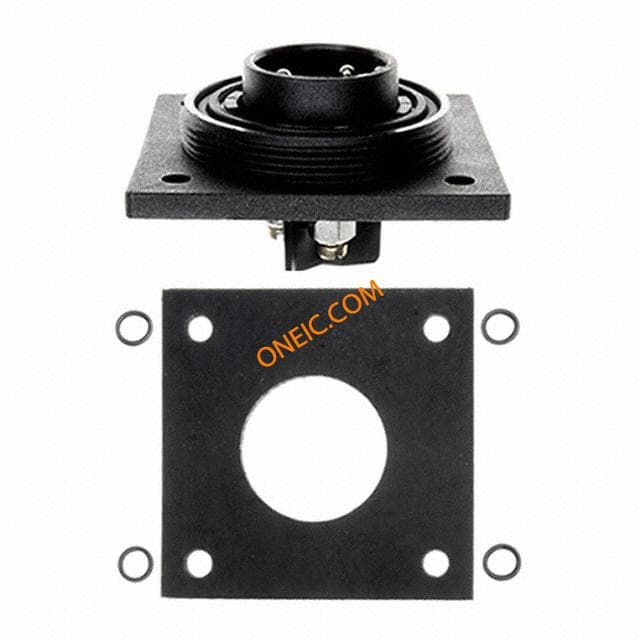

PX0765/P
