点击放大查看

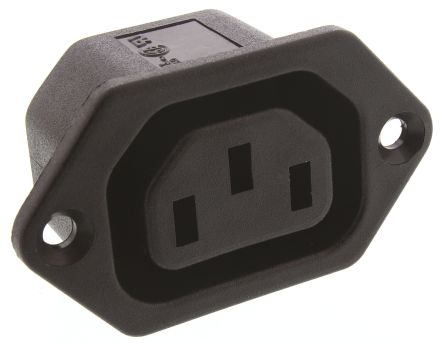

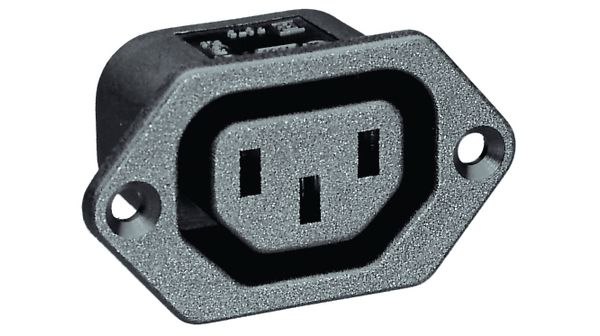

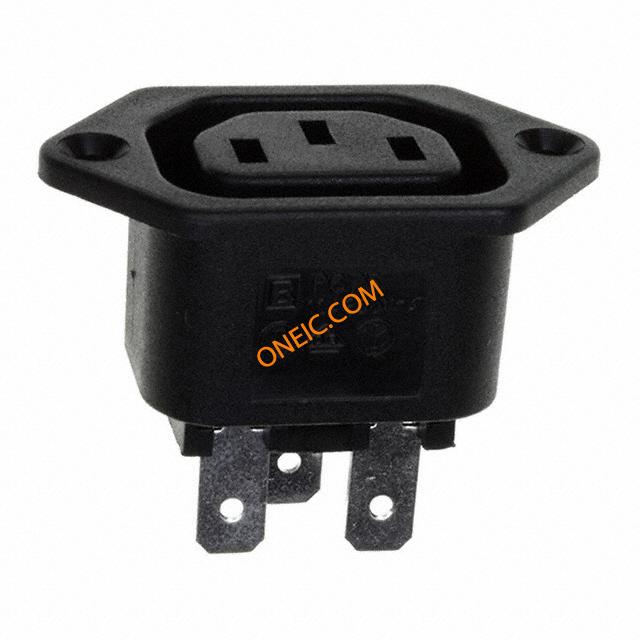

PX0675/63
| 制造商 | |
| 描述 | AC Power Entry Modules SC MOUNT .25 TABS CONN AC OUTLET 6.3MM TAB FLNG MT C13 Female Straight Panel Mount IEC Connector, Solder Termination, Rated At 10A, 250V ac Black flange fixing std skt,10A 250Vac Conn Inlets M 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port OUTLET, IEC, FLANGE FIXING PowerOutlet;IEC320-2-2;FlangeMount;6.3mmTab;Black;15A,250VAC(UL/CSA) Connector: IEC 60320,AC mains; C13 (F); socket; female; 10A Flush-mounted device socket C13, screw-mounted Screw mounting, PX0675/63, Bulgin Bulgin C13 面板安装 直向 插座 IEC 插头, 焊接端接, 额定10A, 250 V 交流 |
| 分类 |
商业参数
| 产品 | Outlets | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 认证机构 | :CSA, IMQ, SEMKO, UL, VDE |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 V |
| 开关功能 | Not Switched | 最大额定电流 | 10 A |
| 连接器类型 - 电压输入 | C13 (F) | ||
机械参数
| 宽度 | :32.26mm | 重量 | 0.016 |
| 交流输出口 | :1 | 端接方式 | Solder |
| 基体材料 | polyamide | 安装类型 | Panel Mount, Screw Hole |
| 端子类型 | :6.35mm x 0.8mm | 连接器类型 | C-13 |
| 接触镀层 | Tin | 安装样式 | Flange |
| 连接器样式 | IEC 320-C13 | 保险丝座类型 | Drawer Not Required |
| 壳体材料 | Nylon | 包装数量 | 200 |
| 连接器 - 电缆 | C13 | 端接样式 | Solder Tab |
| 接触件端接 | :Solder | 位数 | 3 |
| 安装孔间距 | 40mm | 安装孔直径 | :3.5mm |
| 面板开孔尺寸（外形） | :24.77mm | 安装面板厚度 | :40mm |
| 外壳与棱镜材料 | :Nylon | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 200 | 带保险丝 | No |
| 连接器性别 | Female | 系列 | :- |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | - 40 C to + 70 C | ||
文档与媒体
相关型号
14228
Bulgin
BLANKING COVER BLACK accessory; blanking cover AC Power Entry Modules BLANKING COVER BLANKING COVER, IEC CONNECTORS accessory,blankingcover Bulgin 3路 面板安装 直向 外壳 插头
PX0686
Bulgin
CONN AC PLUG STR MALE C14 Male Straight Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Blk re-wireable straight plug,10A 250Vac AC Power Entry Modules AC POWER PLUG Conn Power M 3 POS Screw ST Cable Mount 3 Terminal 1 Port PLUG, IEC C14, STRAIGHT, FREE Blkre-wireablestraightplug,10A250Vac Connector: IEC 60320,AC mains; C14 (E); plug; male; Mat: polyamide Cable device plug, C14 black, PX0686, Bulgin Bulgin C14 电缆安装 直向 插头 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流

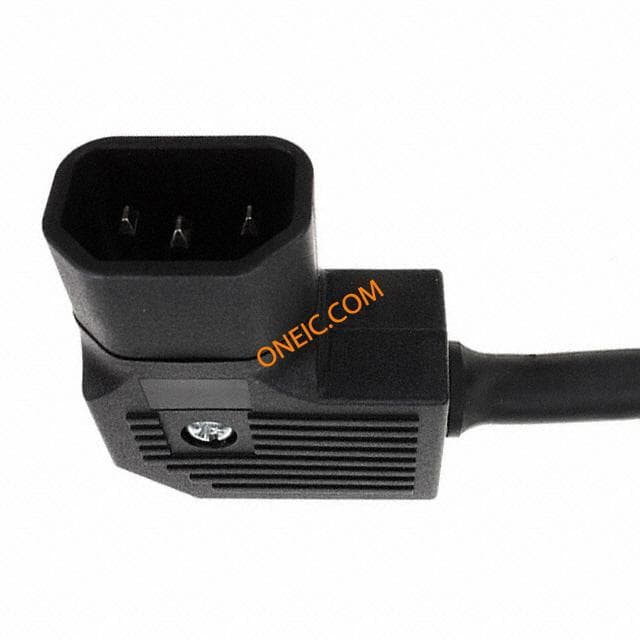

PX0686/SE
Bulgin
CONN AC PLUG R/A MALE Black re-wireable r/a plug,10A 250Vac C14 Male Right Angle Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac AC Power Entry Modules AC POWER PLUG R/A Conn Power M 3 POS Screw RA Cable Mount 3 Terminal 1 Port PLUG, IEC, RIGHT ANGLE, FREE IECPowerConnector;SideEntry;Male;CableMount;ScrewTerminals;10A,250VAC Connector: IEC 60320,AC mains; C14 (E); plug; male; Mat: polyamide Cable device plug black, PX0686/SE, Bulgin Bulgin C14 电缆安装 直角 插头 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流

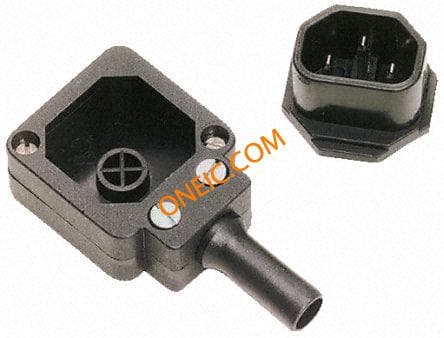

PX0685
