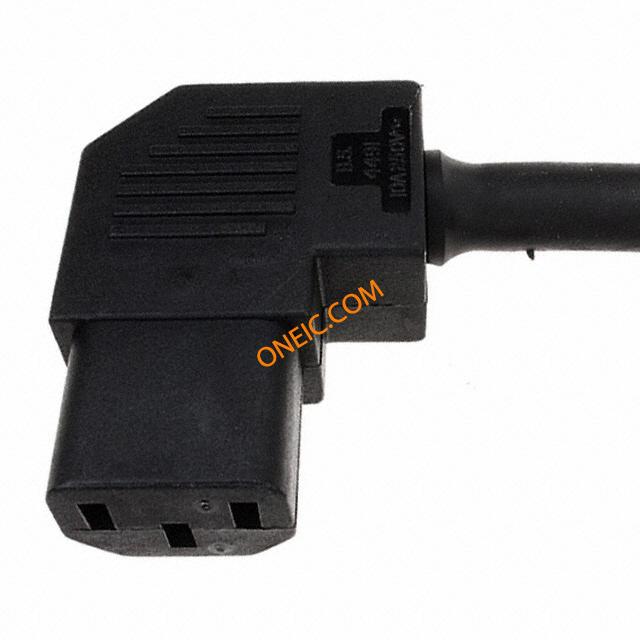

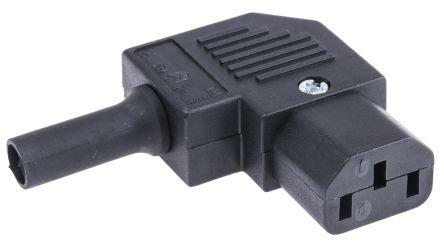

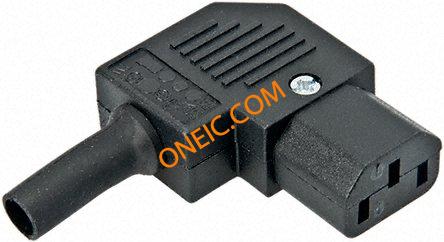

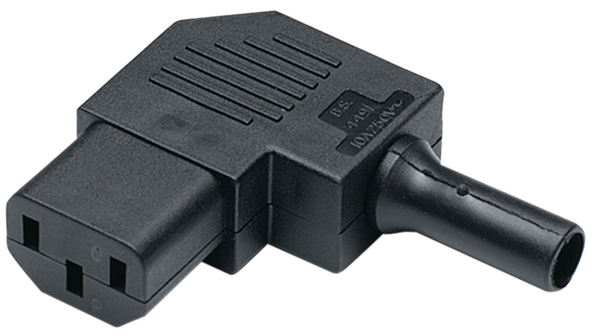

PX0587/SE
| 制造商 | |
| 描述 | CONN AC PLUG R/A FEMALE C13 Female Right Angle Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Black rewireable r/a socket,10A 240Vac AC Power Entry Modules AC POWER SOCKET R/A Conn Power F 3 POS Screw RA Cable Mount 3 Terminal 1 Port SOCKET, IEC, RIGHT ANGLE, FREE IECPowerConnector-C13;SideEntry;Female;CableMnt;ScrewTerm.;10A,250VAC Connector: IEC 60320,AC mains; C13 (F); plug; female; for cable Cable appliance socket black, PX0587/SE, Bulgin Bulgin C13 电缆安装 直角 插座 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流 |
| 分类 |
商业参数
| 产品 | Inlets | 产品类别 | AC Power Entry Modules |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :BS, CSA, EN 60320, IMQ, SEMKO, UL, VDE | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 10A | 电压 | 250V |
| 滤波器类型 | No | 额定电压 | 250 V ac |
| 开关功能 | Not Switched | 最大额定电流 | 10A |
| 连接器类型 - 电压输入 | C13 (F) | ||
机械参数
| 深度 | :51.5mm | 宽度 | :65mm |
| 长度 | :18.4mm | 重量 | 0.022 |
| 交流输出口 | :1 | 方向 | right |
| 端接方式 | Screw Down | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line), Right Angle | 连接器类型 | Plug, Female Sockets |
| 安装样式 | Cable | 连接器样式 | IEC 320-C13 |
| 保险丝座类型 | Drawer Not Required | 壳体材料 | Nylon |
| 包装数量 | 100 | 连接器 - 电缆 | C13 |
| 端接样式 | Screw | 接触件端接 | :Screw |
| 位数 | 3 | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 100 | 带保险丝 | No |
| 连接器性别 | Female | 系列 | :- |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | - 40 C to + 70 C | ||
文档与媒体
相关型号
PX0575/15/28
Bulgin
CONN AC RECEPT 2.8MM SLD SNAP IN AC Power Entry Modules SNAP-IN 1.5MM PNL TB Conn Inlets M 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port INLET, IEC, SNAP-FIT
PX0580/28
Bulgin
CONN AC INLET 2.8MM SLD FLNG MNT C14 Male Straight Panel Mount IEC Connector, Solder Termination, Rated At 10A, 250V ac AC Power Entry Modules SC MOUNT SOL TABS Conn Power M 3 POS Solder ST Panel Mount 3 Terminal 1 Port INLET, IEC, SOLDER TAG IECPowerConnector-C14;FlangeMntInlet;2.8mmTab;15A,250VAC(UL/CSA) Bulgin C14 面板安装 直向 插头 IEC 插头, 焊接端接, 额定10A, 250 V 交流

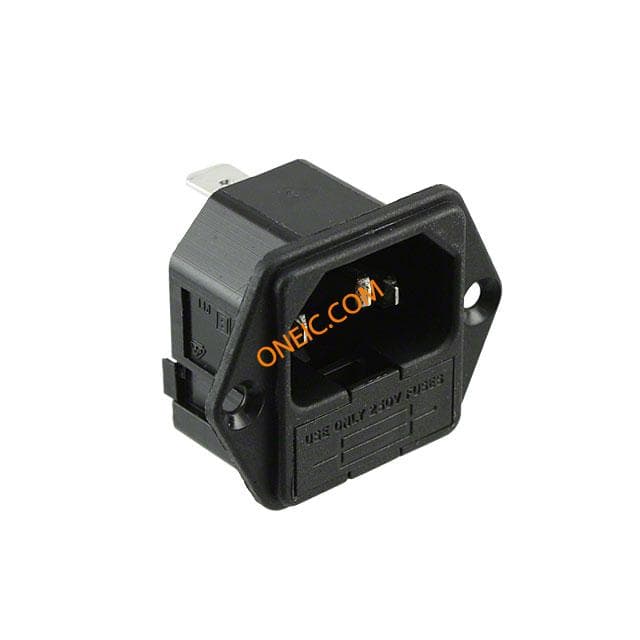

PF0001/63
