点击放大查看

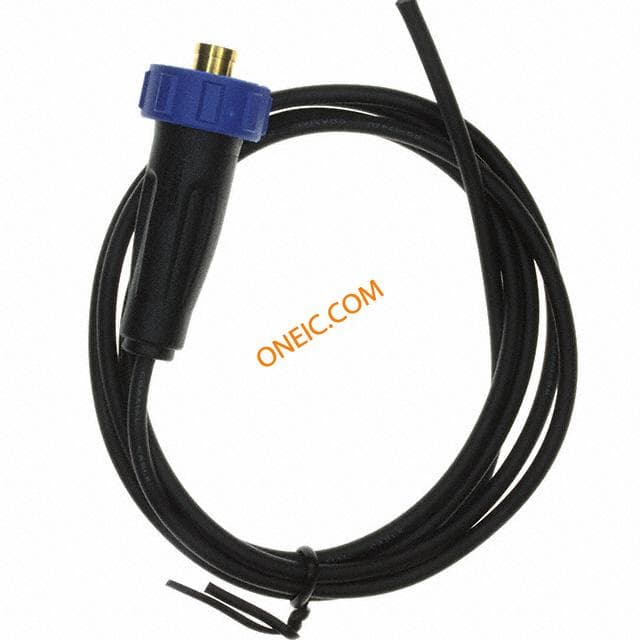

PX0416/3M00
| 制造商 | |
| 描述 | RF Connectors PRE-WIRED FLEX CONN WITH SMB PLUG 3M CONN SMB PLUG - RG-174 3M SMB IP68 plug + 3m RG174 cable RF Connectors / Coaxial Connectors PRE-WIRED FLEX CONN WITH SMB PLUG 3M Cable Assembly Coaxial 3m SMB PL CABLE, PLUG SMB, 3M CircularCableConnector;3m;-20to80degC;ULListed Bulgin 电缆安装 SMB 连接器, 插头, 预接线端接, RG174 |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | 708-1270 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 阻抗 | 50 Ohm | 最大频率 | 4GHz |
| 接触电阻 | :6mohm | 绝缘电阻 | 1000 MOhms |
| 阻抗 - 不平衡/平衡 | :RG174 | ||
机械参数
| 颜色 | Black | 长度 | 118" (3m) |
| 重量 | 0.08 | 材料（通用） | PX0414Connector |
| 电缆类型 | RG-174 | 本体表面处理 | Gold |
| 电缆组 | :Audio, Video | 方向 | Straight |
| 外壳样式 | Plastic | 电缆长度 | :9.84ft |
| 触头类型 | Pin | 线缆护套颜色 | :Black |
| 第一连接器 | SMB Plug Female Socket | 第二连接器 | Cable (Round) |
| 基体材料 | Brass | 行程角度 | Straight |
| 连接器类型 | :SMB Plug, 50ohm | 接触镀层 | Gold |
| 触头材料 | Brass | 主要材料 | Sealed |
| 端接样式 | Crimp | 外径 | :19mm |
| 引线长度 | :3000mm | 配接方向 | Threaded |
| 介电材料 | Teflon | ||
产品信息
| 类型 | CablePlug | 样式 | SMB to Cable |
| 连接器性别 | Female to Cable | 系列 | :Buccaneer |
| 产品特性 | Shielded | 射频系列/标准 | SMB |
环境参数
| 防护等级 | IP68 | 工作温度 | -20°C ~ 80°C |
