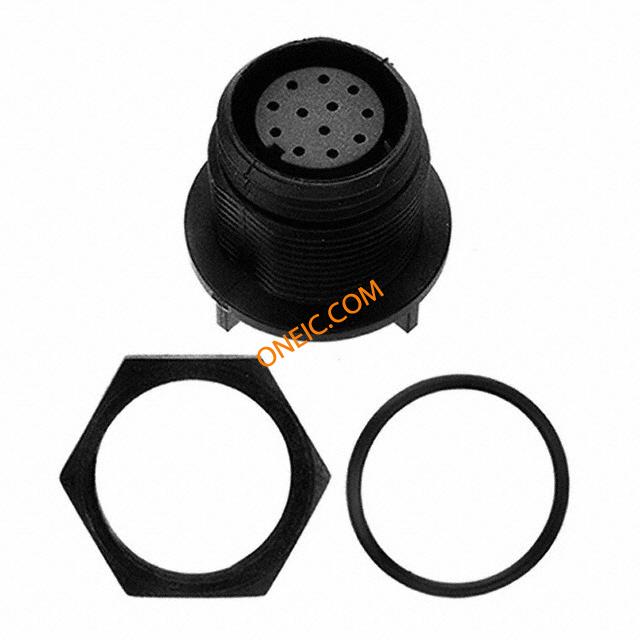

PX0413/12S/PC

制造商	Bulgin
描述	Standard Circular Connector PCB skt con-12 pole CONN RCPT 12POS PNL MNT PCB SKT 12 Pole Straight Through Hole Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, PCB, IP68, 12POLE SERIES400REARPANELMOUNTINGPCB-12PoleFemale Bulgin Buccaneer 系列 12路通孔直向连接器 , 母触点
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

产品类别	Standard Circular Connector	标准包装数量	20
工厂包装数量	20

合规参数

RoHS	Compliant	SVHC	:No SVHC (19-Dec-2012)
海关税号	85369010	认证机构	:CSA, UL, VDE
材料阻燃等级	:UL94V-0

电气参数

额定电压	50VAC/DC	工作电压	:125V
接触电阻	:5mohm	最大额定电流	1A
绝缘电阻	:10Mohm

机械参数

重量	0.007	材料（通用）	:Nitrile
包装方式	Bulk	方向	Keyed
外壳样式	Receptacle	端接方式	Solder
安装类型	Panel Mount, Bulkhead; Through Hole	外壳镀层	Gold
连接器类型	Receptacle, Female Sockets	接触镀层	Gold
紧固类型	Threaded	安装样式	Panel
插入角度	:-	本体材料	:Nylon (Polyamide)
触头材料	Copper Alloy	端接样式	Crimp / Solder
第一触头极性	Female	触点数	12
位数	12	外壳尺寸-插件	:-
外壳材料及表面处理	Polyamide	第一连接器安装类型	:Panel

产品信息

连接器性别	:Receptacle	系列	Buccaneer
产品子类型	Connectors

环境参数

NEMA 机架尺寸	:IP68	防护等级	IP68 - Dust Tight, Waterproof
工作温度	-40°C ~ 80°C

文档与媒体

PDF 文档

400 Series Buccaneer

PDF 文档

67963.pdf

PDF 文档

Buccaneer-2010_400_series.pdf
