点击放大查看

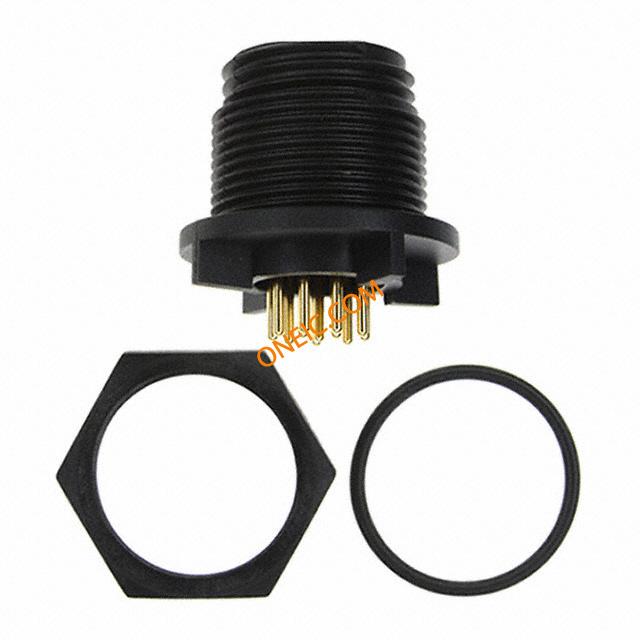

PX0413/12P/PC
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector PCB pin con -12 pole CONN RCPT 12POS PNL MNT PCB PIN 12 Pole Straight Through Hole Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 12 POS Solder ST Thru-Hole 12 Terminal 1 Port PLUG, PCB, IP68, 12POLE SERIES400REARPANELMOUNTINGPCB-12PoleMale Bulgin Buccaneer 系列 12路 通孔 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :CSA, UL, VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50VAC/DC | 工作电压 | :125V |
| 接触电阻 | :5mohm | 最大额定电流 | 1A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 重量 | 0.007 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 安装类型 | Panel Mount, Bulkhead; Through Hole | 外壳镀层 | Gold |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 端接样式 | Crimp / Solder |
| 第一触头极性 | Male | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 第一连接器安装类型 | :Panel |
产品信息
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 80°C | ||
文档与媒体
相关型号
SA3180/1
Bulgin
Standard Circular Contacts SOLDER PIN 12P 24AWG 1 = 1 PKT of 10/pcs CONT PIN 1A SLD 24-28AWG 1=10PC 1A solder pin contact,24-28awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 28-24 AWG, SOLDER Contact;Pin;10,12;Solder;1A;50V;Gold;IP68 Contact; male; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 10 and 12-pole, SA3180/1, Bulgin Bulgin 400 系列 1A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 28 → 24 AWG 线规格
PX0410/12S/6570
Bulgin
Standard Circular Connector 12 POLE FLEX SKT 6.5-7.0MM BLACK CONN HSNG PLUG CABLE 12POS SKT Conn Buccaneer SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port 400SERIESBUCCANEERFLEXCABLECONNECTOR
PX0484
Bulgin
Standard Circular Connector Sealing Cap CONN CAP SEALING FOR PX0413 Sealing cap Type 4 Micro Buccaneer Connector Accessories Sealing Cap SEALING CAP, POLYAMIDE SealingCap;PCBandrearpanelmount;IP68;400Series
PX0410/12S/6065
Bulgin
Standard Circular Connector 12 POLE FLEX SKT CONN HSNG PLUG CABLE 12POS SKT 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port SOCKET, FREE, 12WAY CONN HSNG PLUG INLINE 12POS SKT Connector,Cable;Socket;12;46mm(Max.);1A;50VAC/DC;5Milliohms(Max.) Connector: circular; plug; female; PIN:12; w/o terminals; IP68 Cable socket Buccaneer 400, 12-pole 12, PX0410/12S/6065, Bulgin Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 母触点
SA3180
Bulgin
Standard Circular Contacts CRIMP PIN 12P 24AWG 1 = 1 PKT of 10/pcs CONT PIN 1A CRMP 24-28AWG 1=10PC Bulgin 400 Series Gold Plated Crimp Pin Connector, 28 to 24AWG Contact PIN Crimp ST Cable Mount CRIMP PIN, PK10 Contacts,Standard,Buccaneer,25-Way,Crimp Contact; male; 24÷28AWG; Buccaneer 400; gold plated; crimped; 1A Crimp contact, male, for 10 and 12-pole, SA3180, Bulgin Bulgin 400 系列 公 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格
PX0410/12S/3035
Bulgin
Standard Circular Connector 12 POLE FLEX SKT 3.0-3.5MM LIGHT GREY CONN HSNG PLUG CABLE 12POS SKT
PX0410/12S/3540
Bulgin
Standard Circular Connector 12 POLE FLEX SKT 3.5-4.0MM GREY CONN HSNG PLUG CABLE 12POS SKT
PX0410/12S/5560
Bulgin
Standard Circular Connector 12 POLE FLEX SKT 5.5-6.0MM BLUE CONN HSNG PLUG CABLE 12POS SKT
PX0410/12S/5055
Bulgin
Standard Circular Connector 12 POLE FLEX SKT 5.0-5.5MM YELLOW CONN HSNG PLUG CABLE 12POS SKT
PX0410/12S/4550
Bulgin
Standard Circular Connector 12 POLE FLEX SKT 4.5-5.0MM RED CONN HSNG PLUG CABLE 12POS SKT
PX0410/12S/4045
Bulgin
Standard Circular Connector 12 POLE FLEX SKT 4.0-4.5MM GREEN CONN HSNG PLUG CABLE 12POS SKT
