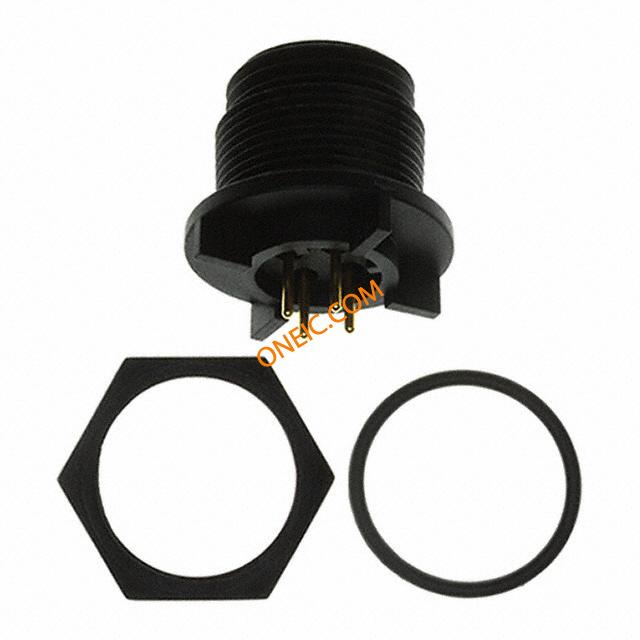

PX0413/04S/PC
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector PCB skt conn- 4 pole CONN RCPT 4POS PNL MNT PCB SKT 4 Pole Straight Through Hole Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Solder ST Thru-Hole 4 Terminal 1 Port SOCKET, PCB, 4POLE Connector,CircularIP68;4;Crimp,SolderandPCB;5A;125VAC/VDC;Gold Bulgin Buccaneer 系列 4路 通孔 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :CSA, UL, VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 125VAC/DC | 工作电压 | :125V |
| 接触电阻 | :5mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 重量 | 0.006 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | 22-26 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 触头类型 | Socket |
| 安装类型 | Panel Mount, Bulkhead; Through Hole | 外壳镀层 | Gold |
| 行程角度 | Straight | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Panel | 插入角度 | :- |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 主要材料 | Sealed |
| 端接样式 | Crimp / Solder | 第一触头极性 | Female |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | PanelSocket | 连接器性别 | :Receptacle |
| 系列 | Buccaneer | 制造商全称 | 400Series |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 80°C | ||
