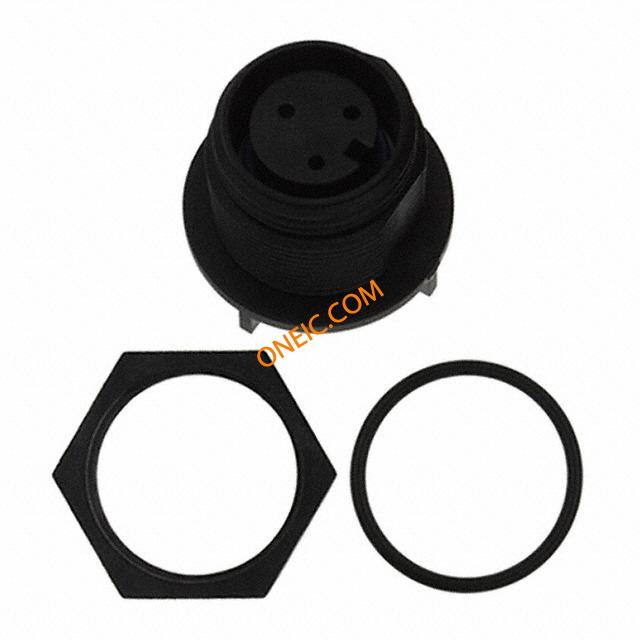

PX0413/03S/PC
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector PCB PIN CONN- 3 POLE CONN RCPT 3POS PNL MNT PCB SKT 3 Pole Straight Through Hole Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, PCB, IP68, 3POLE 400SeriesBuccaneerSealedPCBMountConnectorsSocket(3pos)8Amp Bulgin Buccaneer 系列 3路 通孔 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :CSA, UL, VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 250VAC/DC | 工作电压 | :125V |
| 接触电阻 | :5mohm | 最大额定电流 | 8A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 重量 | 0.006 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | 20-24 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder | 触头类型 | Socket |
| 安装类型 | Panel Mount, Bulkhead; Through Hole | 行程角度 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 外壳材料（壳体） | Plastic | 插入角度 | :- |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 主要材料 | Sealed |
| 端接样式 | Crimp / Solder | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 3 |
| 位数 | 3 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | PanelSocket | 连接器性别 | :Receptacle |
| 系列 | Buccaneer | 制造商全称 | 400Series |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 80°C | ||
文档与媒体
相关型号

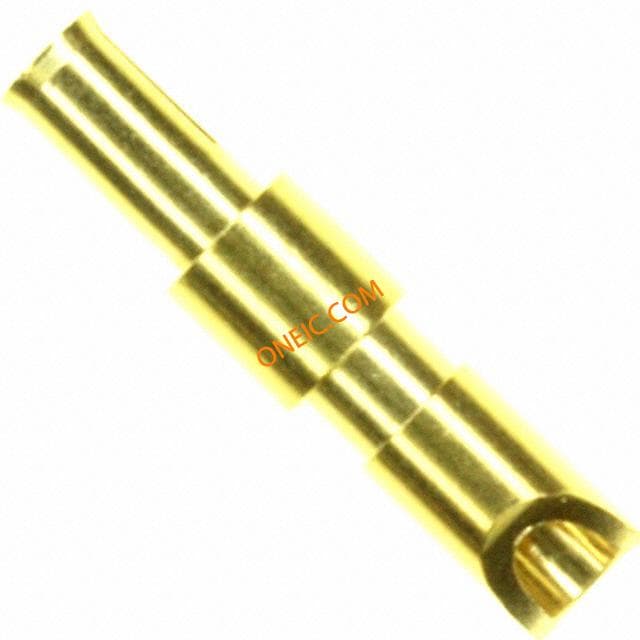

SA3349/1
Bulgin
Standard Circular Contacts SOLDR SKT 2&3P 20AWG 1 = 1 PKT of 10/pcs CONT SKT 8A SLD 20-24AWG 1=10PC 400 Series 8A Female Circular Connector Contact, Solder,Wire size 24 to 20AWG Contact SKT Solder ST Cable Mount SOLDER SOCKET, 20-24AWG SolderContacts,Socket,2or3Pole,Forthe400SeriesBuccaneer Contact; female; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 2 and 3-pole, SA3349/1, Bulgin Bulgin 400 系列 8A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 24 → 20 AWG 线规格

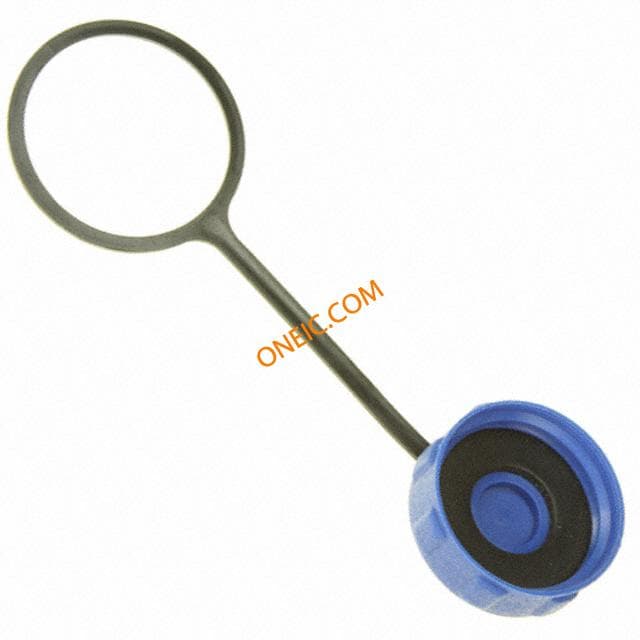

PX0484
Bulgin
Standard Circular Connector Sealing Cap CONN CAP SEALING FOR PX0413 Sealing cap Type 4 Micro Buccaneer Connector Accessories Sealing Cap SEALING CAP, POLYAMIDE SealingCap;PCBandrearpanelmount;IP68;400Series

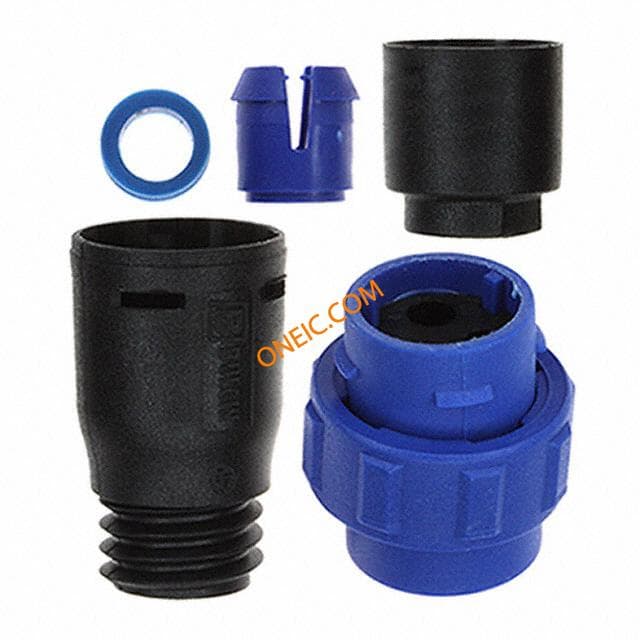

PX0410/03P/5560
