点击放大查看

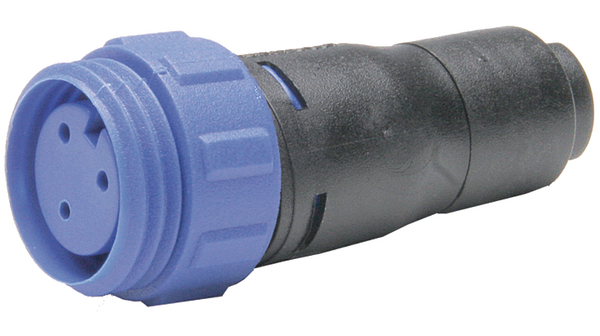

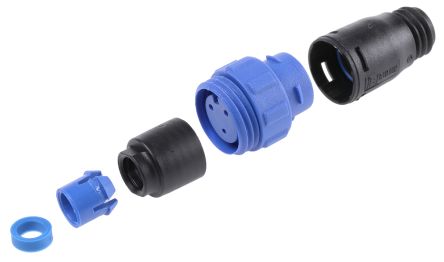

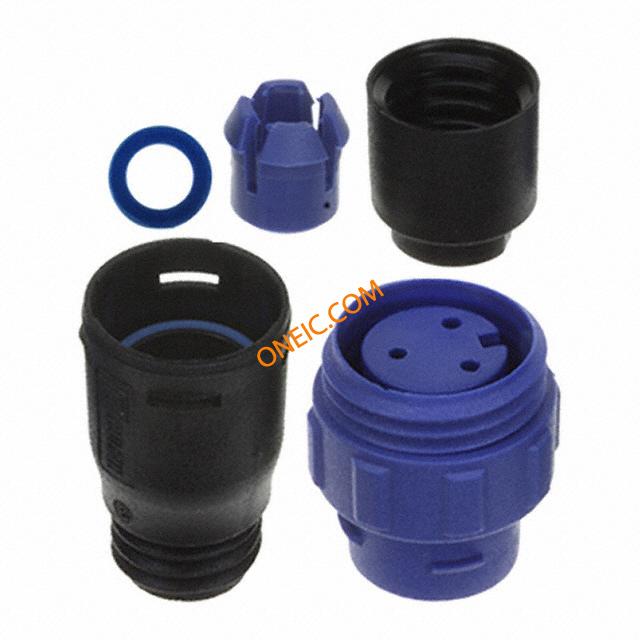

PX0411/03S/5560
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 3 POLE IN-LINE SKT CONN HSNG RCPT IN-LINE 3POS SKT 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CableConnector,In-Line;3;Socket;5.5to6.0mm;FlexIn-LineBody;8A;250 Connector: circular; plug; female; PIN:3; w/o terminals; for cable Coupling socket Buccaneer 400, 3-pole 3, PX0411/03S/5560, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 250 V ac/dc | 极数 | 3 |
| 最大额定电流 | 8A | 连接器类型 - 电压输入 | w/o terminals |
| 额定电流 - 设备输入口 | 8 | 保护电压（VP）（2416） | IP 68 |
机械参数
| 重量 | 0.02 kg | 包装方式 | Bulk |
| 导线线规 | 20-24 | 方向 | Keyed |
| 外壳样式 | Receptacle | 本体尺寸 | Ø19.1 x 46mm |
| 端接方式 | Crimp | 触头类型 | Crimp and Solder Cup |
| 基体材料 | polyamide | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 5.5-6mm |
| 电缆端类型 | 3...7 mm | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Plastic |
| 连接器样式 | straight | 锁定特性 | threaded joint, external thread |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 端接排数 | 压接 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp / Solder | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 3 |
| 位数 | 3 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Polyamide | ||
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | CableSocket | 系列 | Buccaneer |
| 制造商全称 | 400Series | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 400 | 单元数量 | 1 |
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | 工作温度 | +80°C |
